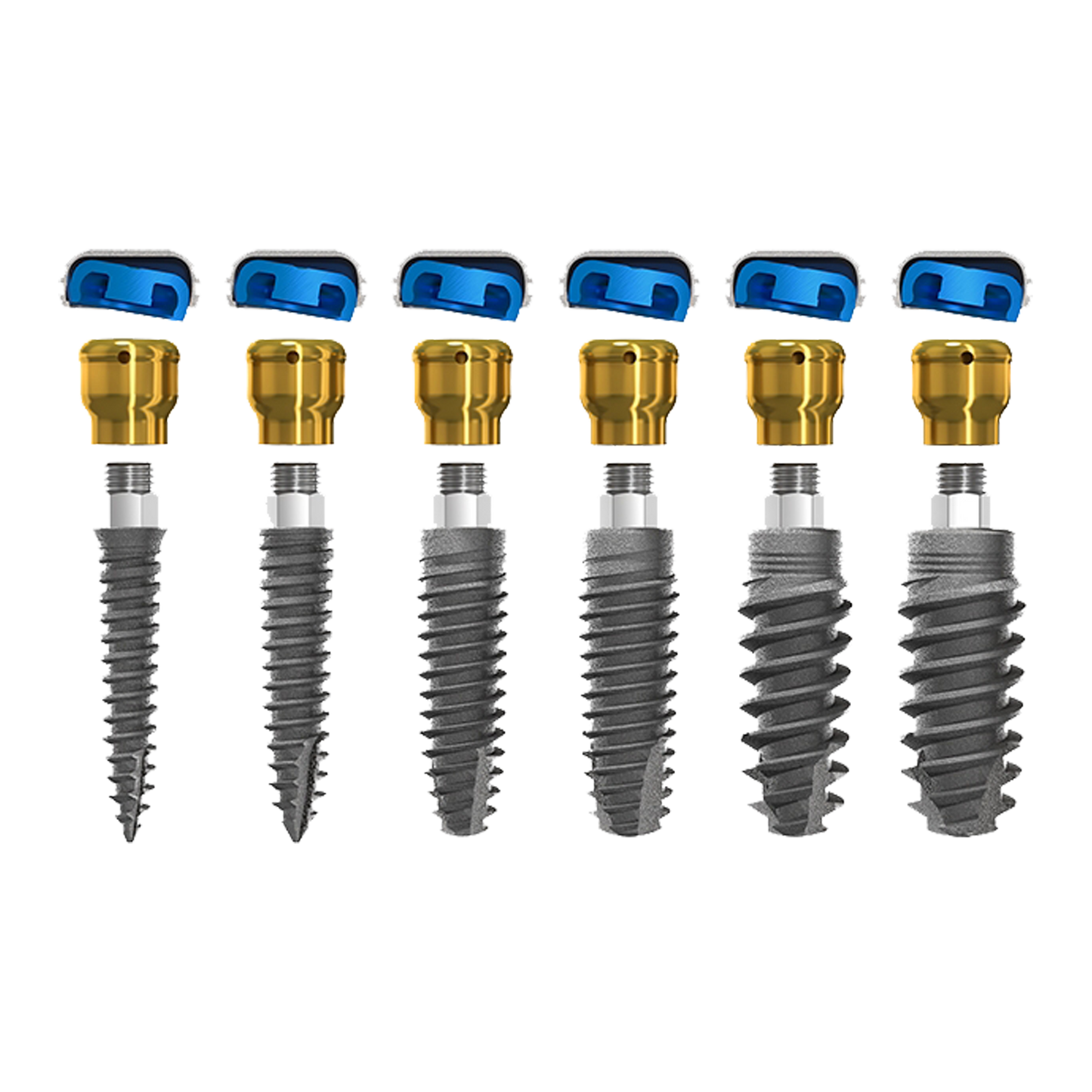

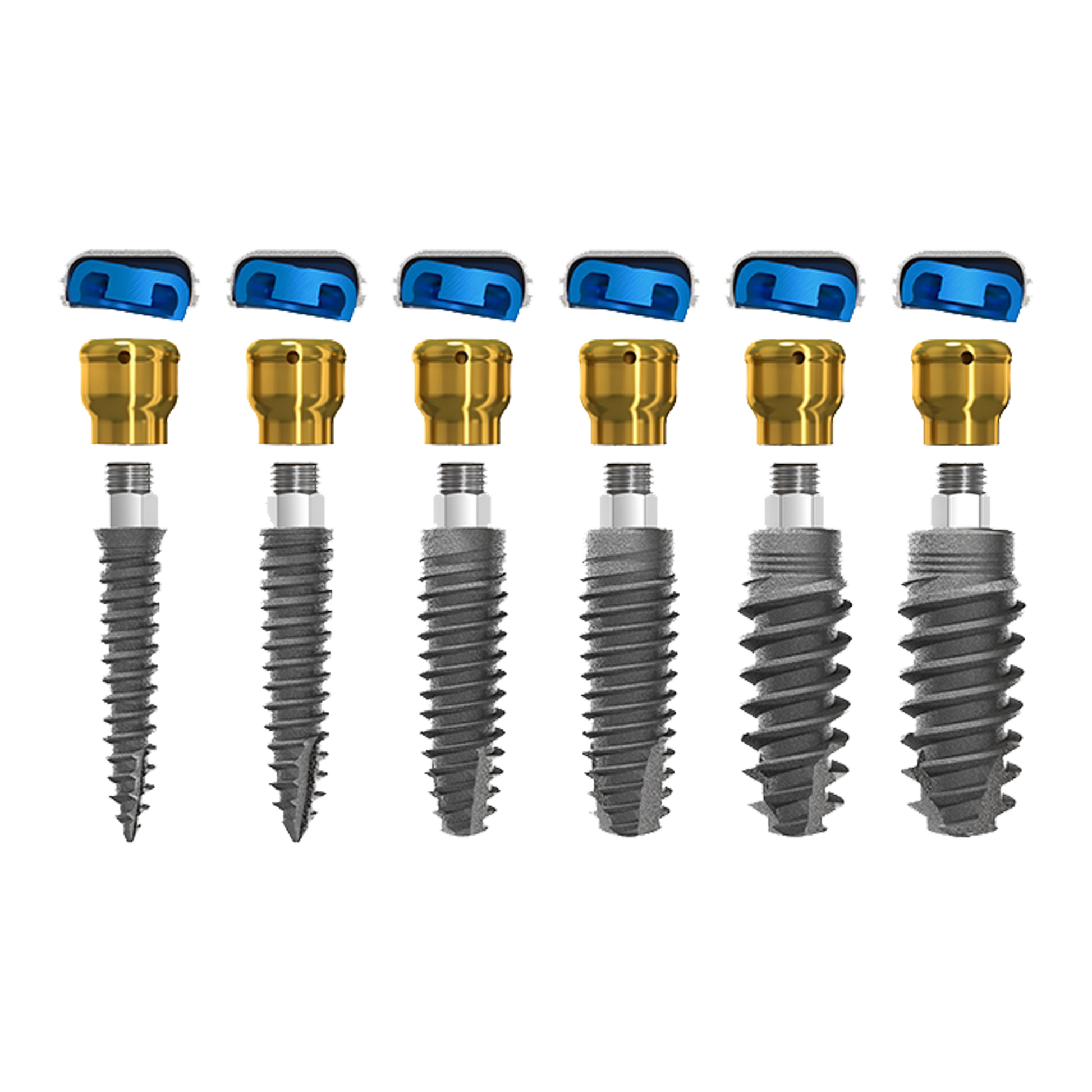

ZEST Locator All-In-One Overdenture Implant

The LOCATOR Implant System is the most flexible, affordable fixed, full-arch and removable overdenture solution on the market today. With LOCATOR FIXED inserts, the LOCATOR Implant System now enables clinicians to do both fixed and removable overdenture procedures using the time tested LOCATOR abutment, workflow, protocol, and pick up method.

Bundled as an all-in-one package, the LOCATOR Implant System contains: a dental implant, overdenture abutment, and removable overdenture processing components.

Why LOCATOR Overdenture Implants?

• Digital technology makes removable overdenture Implant procedures faster and easier to implement
• Fixed, full-arch capability when using LOCATOR FIXED inserts
• Same LOCATOR workflow, abutment, protocol, and pickup method for both fixed and removable overdenture procures
• Most cost effective system for overdenture and fixed full arch procedures
• Convenient all-in-one packaging makes overdenture parts selection, ordering and inventory management easy
• LOCATOR Implants are a key component of the ENCOMPASS Overdenture Solution package, which uses digital technology and 3D printing to radically reduce cost and the number of patient visits for overdenture procedures to just 2 or 3 sessions. Click here to learn more about ENCOMPASS.
• The LOCATOR Implants System features a fully guided surgical kit making implant placement easier, more precise, and less stressful.

Convenient all-in-one packaging contains all the parts needed for an overdenture procedure at a very affordable bundle.

Each all-in-one package includes:

• 1 LOCATOR Implant
• 1 LOCATOR Overdenture Attachment
• 1 LOCATOR Processing Package:
  • LOCATOR Housing
  • Black Processing Male (black)
  • Extra Light Male Retention Insert (blue)
  • Light Male Retention Insert (pink)
  • Extra Light Extended Range Male Retention Insert (red)
  • Block Out Spacer

Product Features and Specifications:

LOCATOR Implants are the only implant packaged with the industry leading overdenture attachment system for affordability and convenience.

• Self-tapping design for ease of implant insertion and increased implant stability.
• Aggressive thread design that widens at the coronal portion providing primary stability when immediate loading may be indicated
• Implant Diameters: 2.4, 2.9, 3.5, 3.9, 4.4 & 4.9mm
• Implant Lengths: 8, 10, 12, or 14mm
• Cuff Heights: 2.5, 3.0, 4.0, 5.0 or 6.0mm (6.mm Cuff Height sold individually)
• Removable/Replaceable LOCATOR Attachment
• Intuitive Surgical Instruments with Simple Procedure
