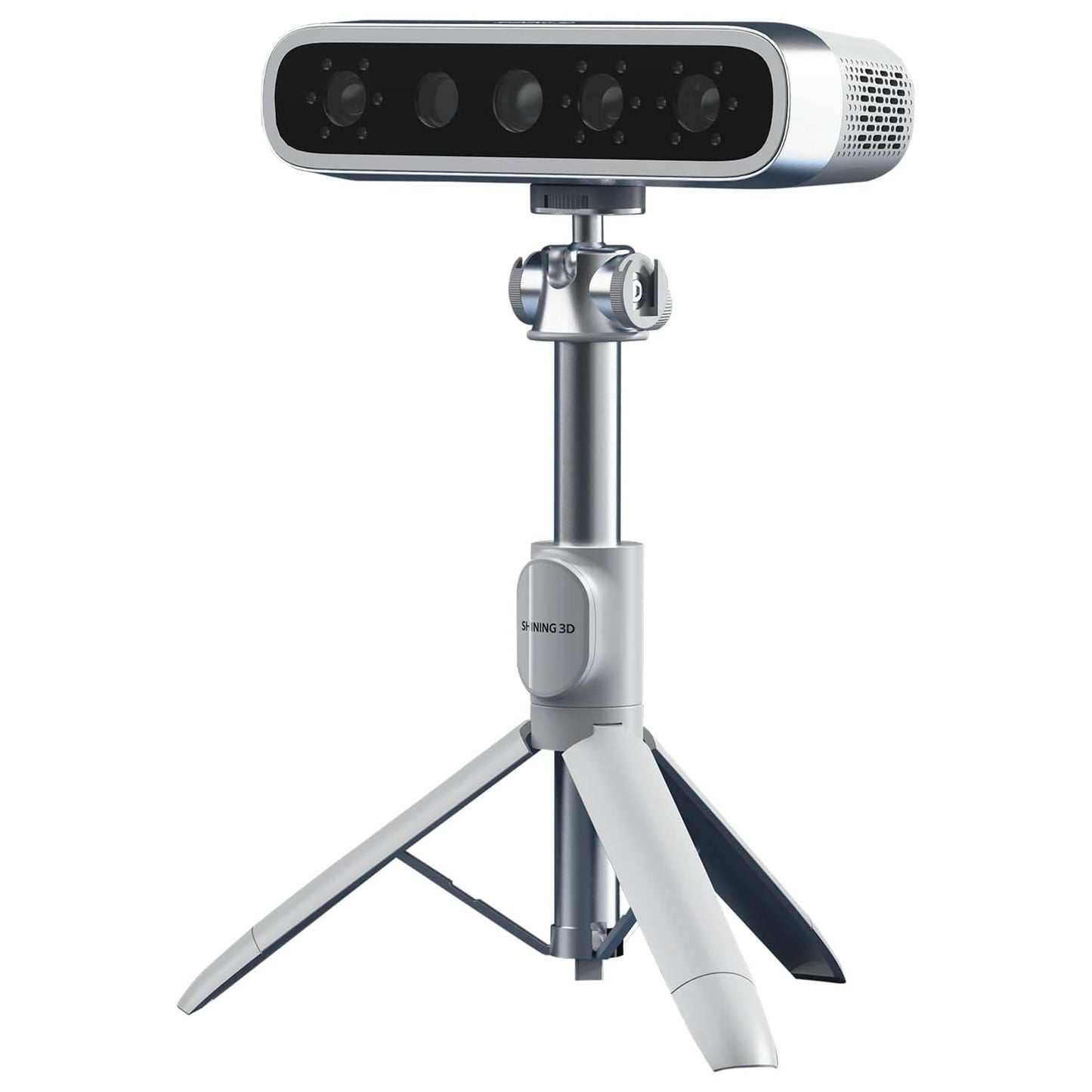

Shining MetiSmile Facial Scanner
Shining MetiSmile Facial Scanner
CALL TO INQUIRE 1-888-360-5550
Shining 3D MetiSmile Face Scanner - Capture stunning facial details with precision using the MetiSmile Face Scanner. Designed for unparalleled accuracy, this scanner provides digital 3D facial scans that seamlessly integrate into your workflows, helping create perfectly customized dental restorations. A game-changer for patient satisfaction and treatment planning!
Beyond Smile
MetiSmile is the first face scanner developed and produced by SHINING 3D exclusively for dentistry. It can quickly capture the facial information to create 3D model and assist in clinical diagnosis with its advanced software.
Fast Scan Speed
In just 10 seconds this highly perceptive scanner can take photos of patients from multiple angles to simultaneously construct a 3D facial data.
High-fidelity Texture
The exceptional texture camera of the MetiSmile can accurately record and display facial color that appears realistic to the patient.
High Accuracy
Three data acquisition cameras and one 5.0 MP HD texture camera produce scan accuracy within 50μm. MetiSmile also captures elevated details of the teeth.
Auto Alignment
Between Facial Scan Data and Intraoral Scan Data
Data Alignment - Digital Smile Design
DICOM Data Integration to Create a Virtual Patient
Enhance accuracy in the design process for technicians The integration of DICOM data, facial data, and intraoral scan data enables the creation of virtual patients, equipping dentists with a comprehensive set of information for precise diagnoses and enhanced communication.
Ortho Simulation
Facilitates effective communication between dentists and patient
Simulating facial transformations prior to orthodontic treatments creates a more lifelike experience, rendering the entire process realistic and vivid.
Facial Features Measurement and Comparison
The intuitive software is capable of recognizing 3D facial features. It can measure the distance of facial data, and compare facial changes before and after treatment. These software tools help dentists diagnose and evaluate treatment more effectively.
MANDIBULAR TRAJECTORY TRACKING*
Using mandibular trajectory tracking, the dentist can acquire dynamic occlusion data. This module includes left and right lateral detection, centric, and open occlusion. It delivers detailed occlusion information for accurate diagnosis, design, and treatment.
- Optional function with extra cost, coming soon.
– Handheld mode & Fixed mode.
– Eye-friendly flashless scan thanks to infrared technology.
– Automatic brightness adjustment ensures outstanding face texture.
– Guided operation throughout the scan workflow.
– Open system to export STL, OBJ and PLY.
– Elegant and compact, only 800 grams.
Technical Specifications
Model
MetiSmile
Resolution
Data Acquisition Camera: 1.3 Mega Pixel
HD Texture Camera: 5.0 Mega Pixel
Accuracy
50μm
Field of View
With working distance 500mm, the FOV is 210*270mm
Output Format
PLY, OBJ, STL
White LED color temperature
5500K
Dimension
215*50*75mm
Weight
800g
Power Supply
Input: AC100-220V~, 50/60HZ, 1.5A
Output: DC12V, 7.0V
Recommended PC Configuration
CPU
Intel Core i7-8700 or higher
Memory
16GB is the minimum, 32GB is highly recommended.
Hard Disk Drive
256GB SSD or above
Display Resolution
1920*1080, 60Hz or higher
Connector
USB 3.0
Graphic Card (GPU)
NVIDIA RTX 2060 6GB or higher
Operating System
Microsoft Windows 10（64-bit）or later versions of Windows operating system
