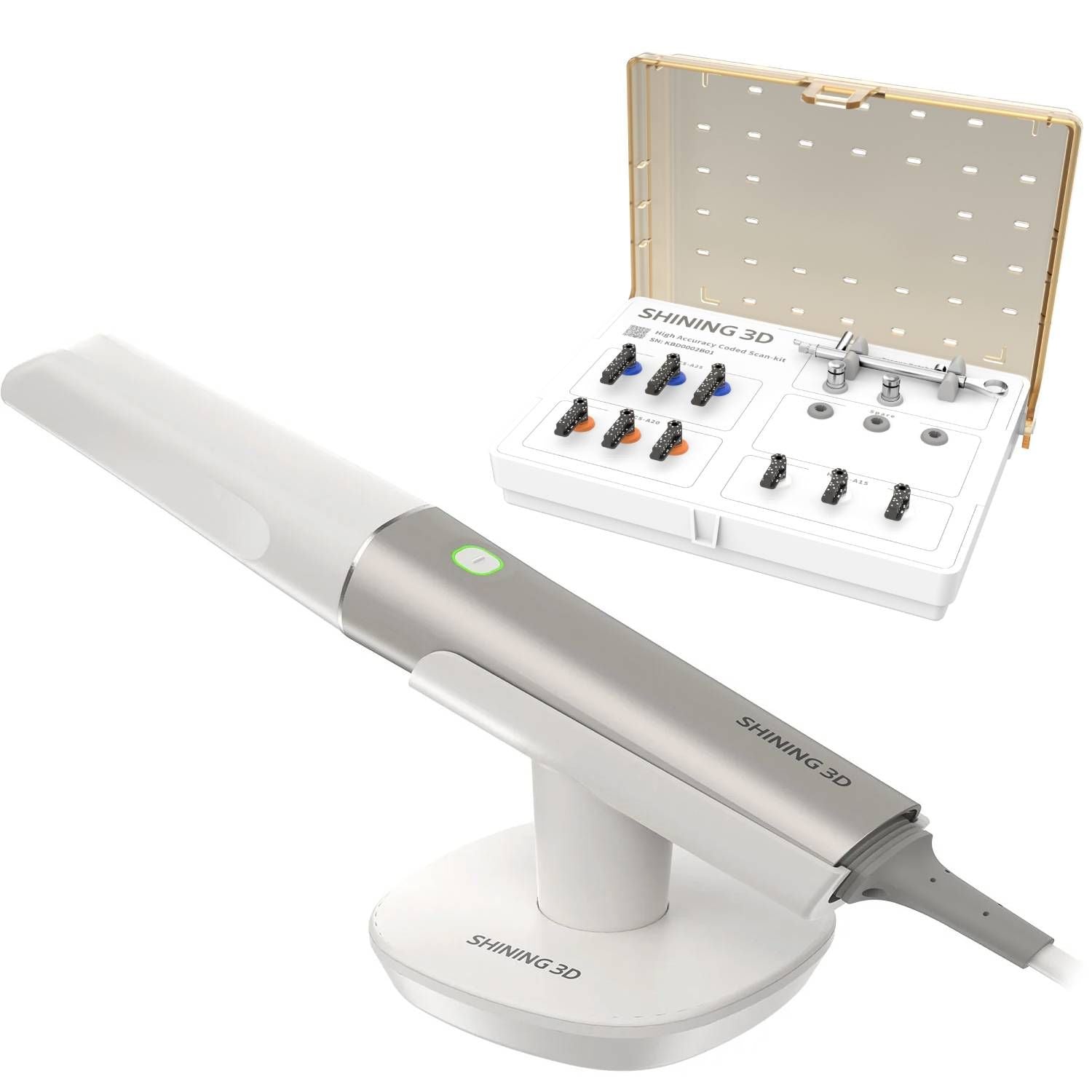

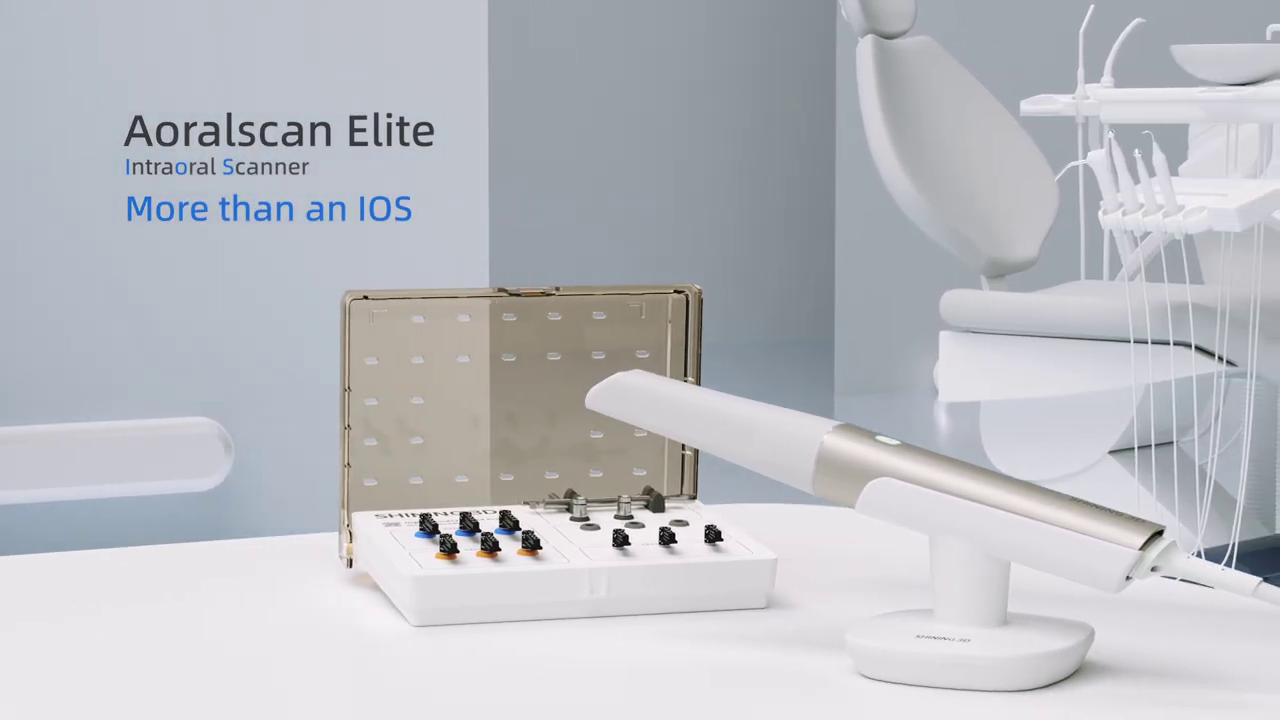

Shining 3D Aoralscan Elite Wired Scanner

SHINING 3D Aoralscan Elite: The Ultimate Solution for Dental Implantology

Discover the revolutionary Aoralscan Elite, the world’s first intraoral scanner to integrate Intraoral Photogrammetry (IPG) and standard intraoral scanning into one powerful device.

This two-in-one system simplifies and enhances full-mouth edentulous implants, especially in All-on-X procedures, by combining advanced photogrammetry techniques with precise intraoral scanning. The Aoralscan Elite captures detailed images of teeth and oral structures while accurately recording implant positions in edentulous cases.

Elevate your dental practice with cutting-edge technology designed to improve workflow efficiency and treatment outcomes.

Aoralscan Elite

IPG Intraoral photogrammetry

The Innovative Technology created by SHINING 3D.
The technology where industrial experience meets dental innovation.
The technology where Intraoral scanning meets PhotoGrammetry in one device.
The technology is the first of its kind in Digital Dentistry.

Two-in-one System

High Precision

High Efficiency

Cap Scanbody for Easy Alignment in Immediate Loading Case

The Cap Scanbody enhances immediate loading procedures by addressing the critical tissue-implant alignment challenge in blood- and saliva-rich environments.

As a precision-engineered intermediary, it facilitates the alignment of the coded scanbody and soft tissue. Both the coded scanbody and Cap Scanbody data are digitally transformed into CAD data, ensuring greater alignment accuracy and success rate.

Smooth Scanning for Edentulous Cases

IPG technology ensures a seamless scanning experience for edentulous patients. Aoralscan Elite Adopts the IPG tip, which is larger than standard, to capture every detail of the edentulous patient's oral geometry with unparalleled clarity.

Slim and Light

Aoralscan Elite Intraoral scanner combines a compact size and lightweight structure. The ergonomic design allows Elite to fit into a hand comfortably, enhancing usability and convenience.

• Ultra-lightweight (124g)
• Compact dimensions (245x30x26mm)

Technical Specifications

Aoralscan Elite

Scan Field of Single Frame	IPG scanner tip: 19mm × 14mm Standard scanner tip: 16 mm × 12 mm Mini scanner tip: 12 mm × 9 mm
Scan Depth	22 mm from exit surface of tip
Scan Principle	Non-contact scanner with structured light and Intraoral photogrammetry
Dimension (L × W × H)	245 mm x 30 mm x 26 mm
Weight	124 g (without cables)
Output	STL, OBJ, PLY
Connection Port	Type-C
Recommended MAC Configuration
Processor	Minimum: M2 (8-Core CPU, 10-Core GPU) Recommended: M1 Pro (8-Core CPU, 14-Core GPU) M2 Pro (10-Core CPU, 16-Core GPU) M1 Max (10-Core CPU, 24 or 32-Core GPU)
RAM	16GB or higher
Hard driver	SSD Recommended: 1T
Operation system	Mac OS: Ventura 13 or higher
Interface	At least one type C
Recommended PC Configuration
CPU	IntelCorei7-8700 or higher
RAM	Recommended:32GB
Hard Disk Drive	256 GB SSD or above
Graphic Card (GPU)	NVIDIA ® RTX 2060 6GB DDR3 or higher
Operating System	Windows 10 Professional (64-bit) or later versions of Windows operating systems
Display Resolution	1920×1080, 60 Hz or higher
I/O Ports	Type-C
