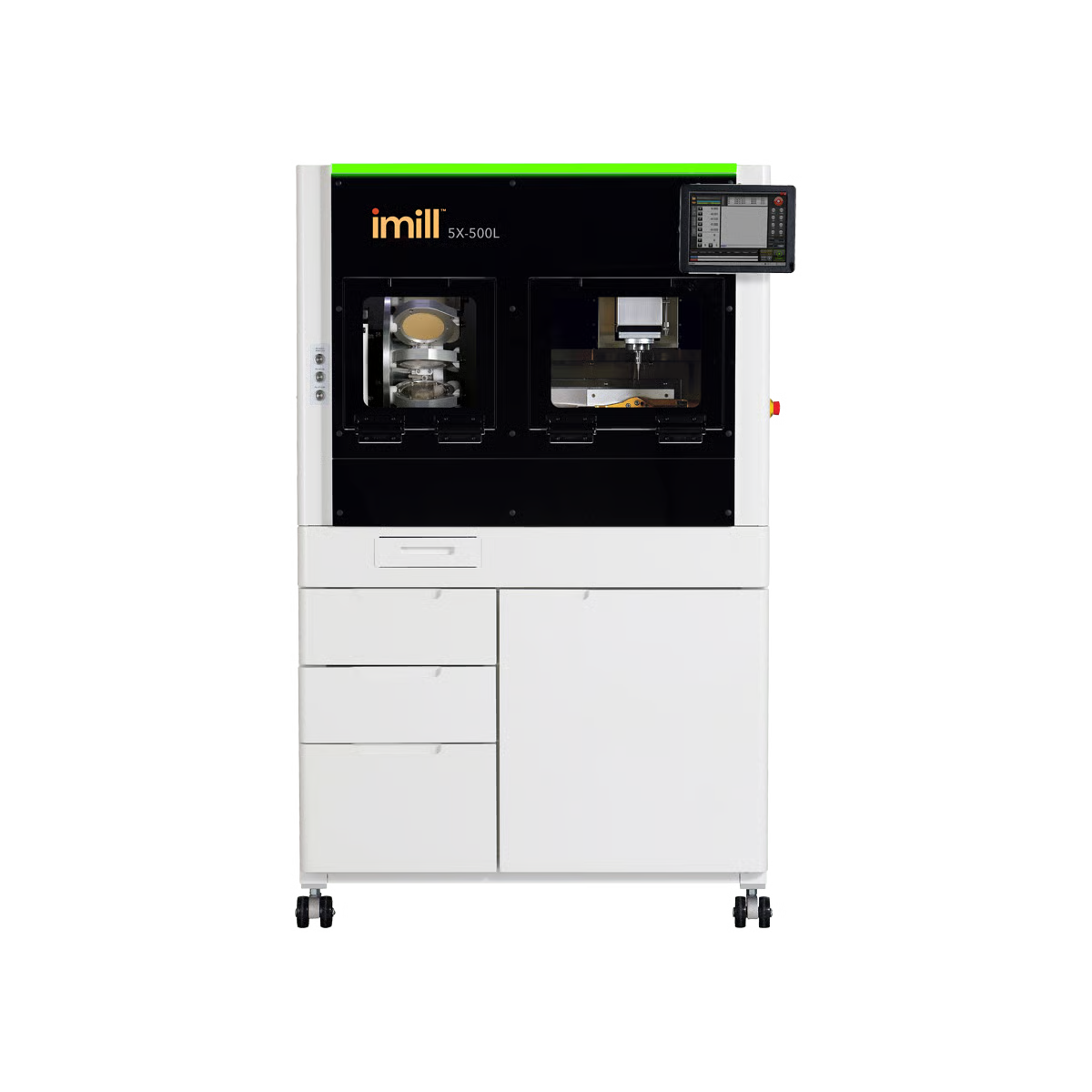

iMill - 5X-500L

Our flagship dental milling machine is revolutionizing digital workflows for dental labs. This powerful mill allows you to machine virtually any dental material, including Titanium, CrCo, and NiCr. With its robust capabilities, you can design a custom abutment and crown together digitally and mill the abutments without sprues. What differentiates the imill 5X-500L from the 5X-500 is that it features an automated loader carousel, allowing for 24-hour production with automatic replacement of up to 12 discs - allowing you to machine accurately and dependably even with repeated jig replacement and unattended operation.

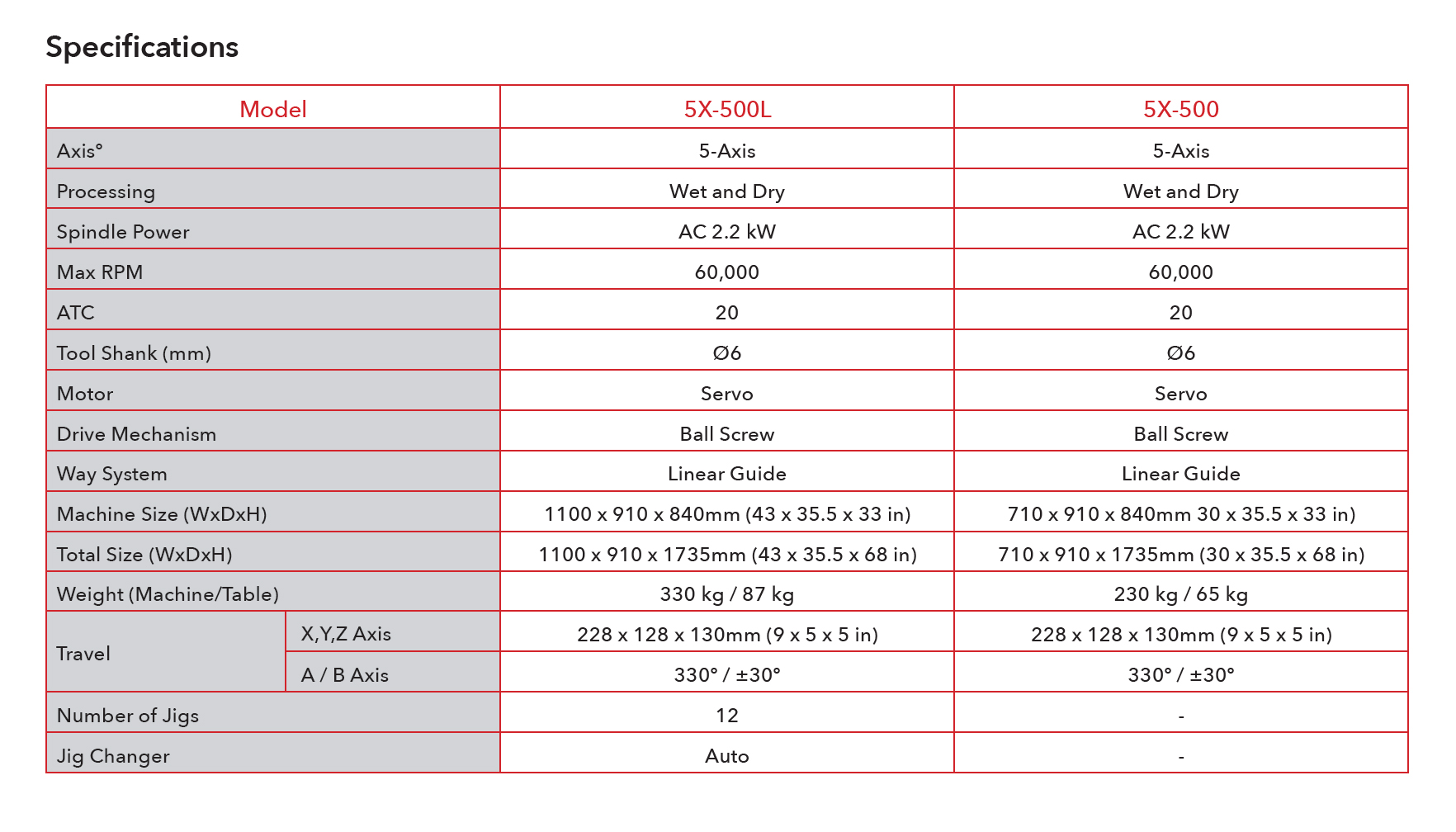

Axes: 5-Axis
Processing: Wet and Dry
Spindle: 2.2 kW / 60,000 RPM by SycoTec GmbH
Automatic Tool Change Capacity: 20
Tool Shank (mm) Ø6
Axes Drive: High-Resolution Servo
Drive Mechanism: Precision Ground Ball Screw
Way System: Linear Guide
Machine Size (WxDxH): 43 x 35.5 x 33 inch
Total Size (WxDxH):43 x 35.5 x 68 inch
Weight (Machine/Table): 728 lbs / 192 lbs
Travel - A / B Axes: 330º / ±30º
Auto Loader Positions: 12
Voltage Requirement: 220 VAC / 15A
Compressed Air Requirement: 75 PSI / 3.5 CFM

Includes:
- Mill cabinet/stand
- 3/ea disc holders
- 1/ea C-Clamp disc holder
- 1/ea 10 position mist Mill-Analog abutment PreForm holder
- 1/ea 6 position abutment PreForm holder
- Coolant
- Starter set of milling tools for zirconia crown & bridge & titanium custom abutment processing
- Accessory kit (calibration jigs, hand tools, brushes, etc)

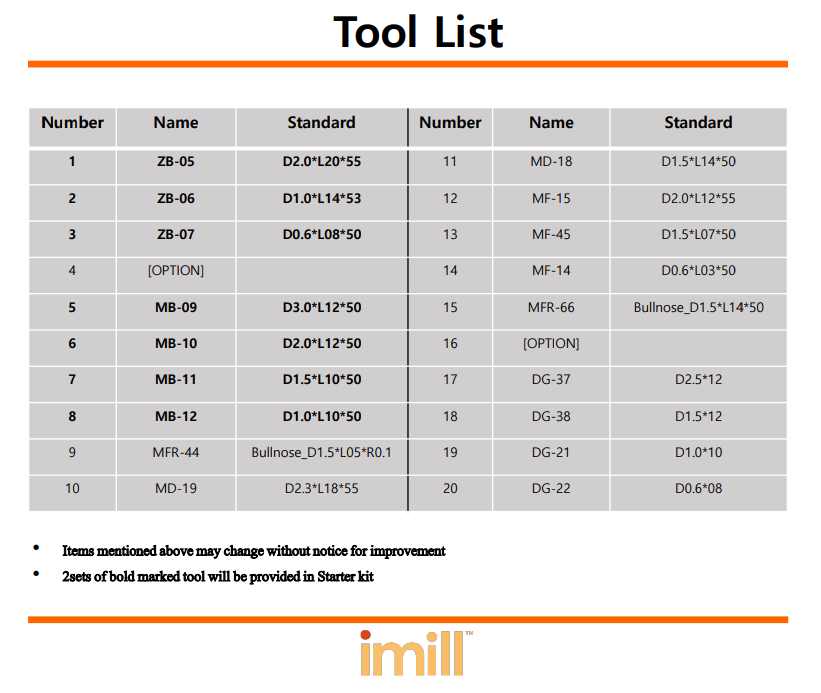

Tool List: 2 sets of tools will be provided in the starter set
- ZB-05 (D2.0*L20*55)
- ZB-06 (D1.0*L14*53)
- ZB-07 (D0.6*L08*50)
- MB-09 (D3.0*L12*50)
- MB-10 (D2.0*L12*50)
- MB-11 (D1.5*L10*50)
- MB-12 (D1.0*L10*50)
