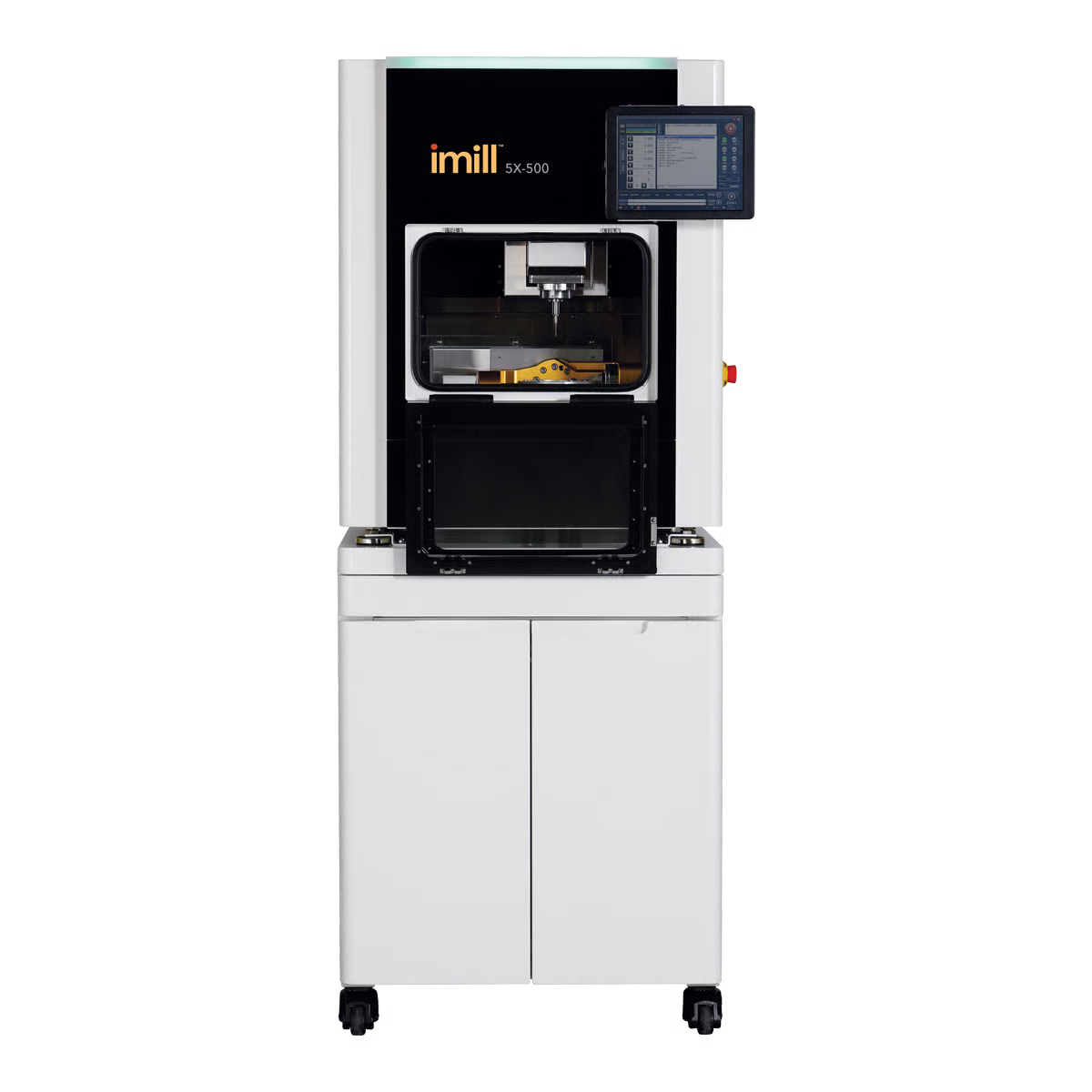

iMill - 5X-500

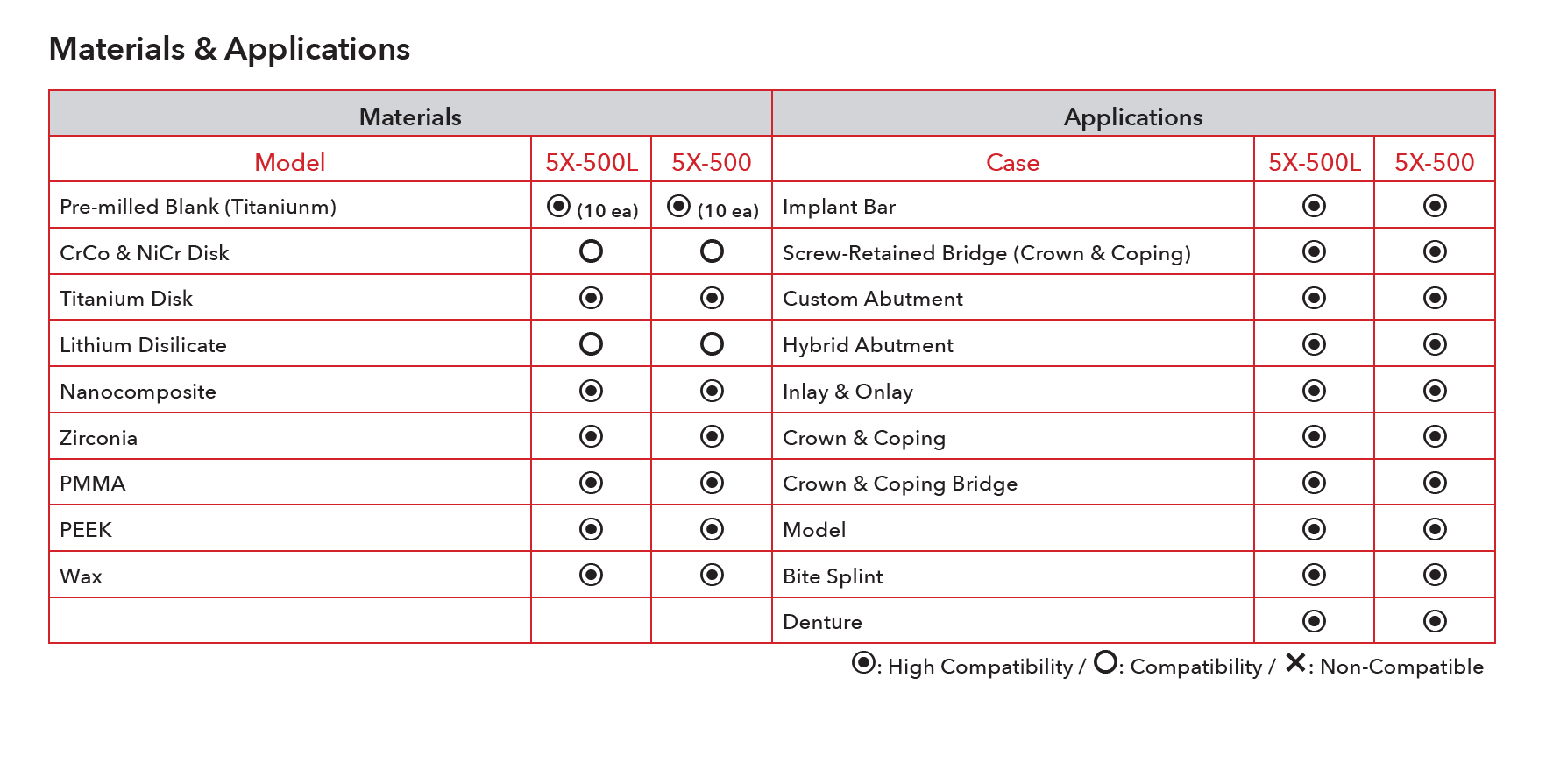

Our flagship dental milling machine is revolutionizing digital workflows for dental labs. This powerful mill allows you to machine virtually any dental material, including Titanium, CrCo, and NiCr. With its robust capabilities, you can design a custom abutment and crown together digitally and mill the abutments without sprues.

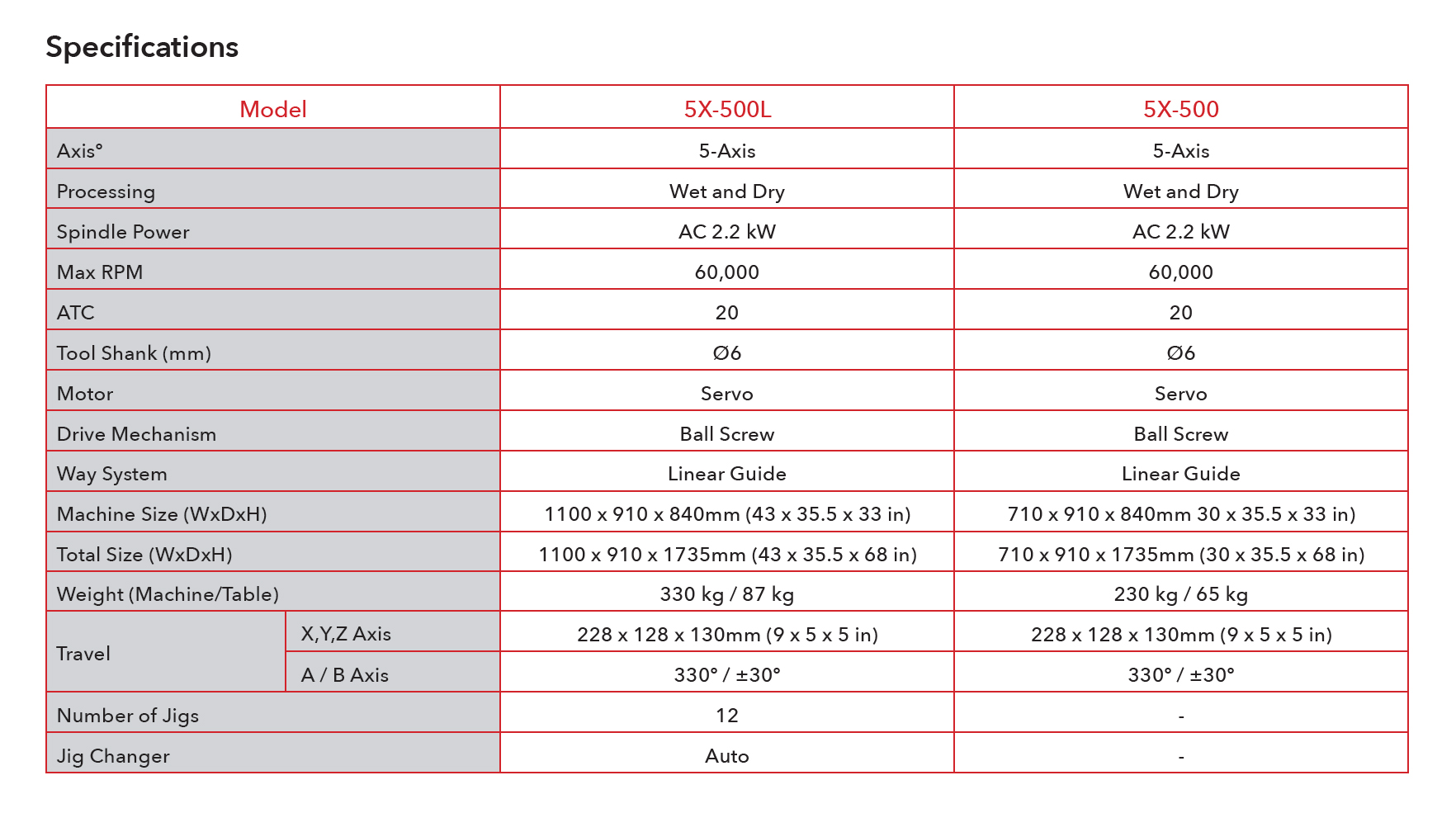

Axes: 5-Axis
Processing: Wet and Dry
Spindle: 2.2 kW / 60,000 RPM by SycoTec GmbH
Automatic Tool Change Capacity: 20
Tool Shank (mm) Ø6
Axes Drive: High-Resolution Servo
Drive Mechanism: Precision Ground Ball Screw
Way System: Linear Guide
Machine Size (WxDxH): 30 x 35.5 x 33 inch
Total Size (WxDxH): 30 x 35.5 x 68 inch
Weight (Machine/Table): 507 lbs / 143 lbs
Travel - A / B Axes: 330º / ±30º
Voltage Requirement: 220 VAC / 15A
Compressed Air Requirement: 75 PSI / 3.5 CFM

Includes:
- Mill cabinet/stand
- 1/ea disc holders
- 1/ea C-Clamp disc holder
- 1/ea 10 position Mill-Analog abutment PreForm holder
- Coolant
- Starter set of milling tools for zirconia crown & bridge & titanium custom abutment processing
- Accessory kit (calibration jigs, hand tools, brushes, etc)

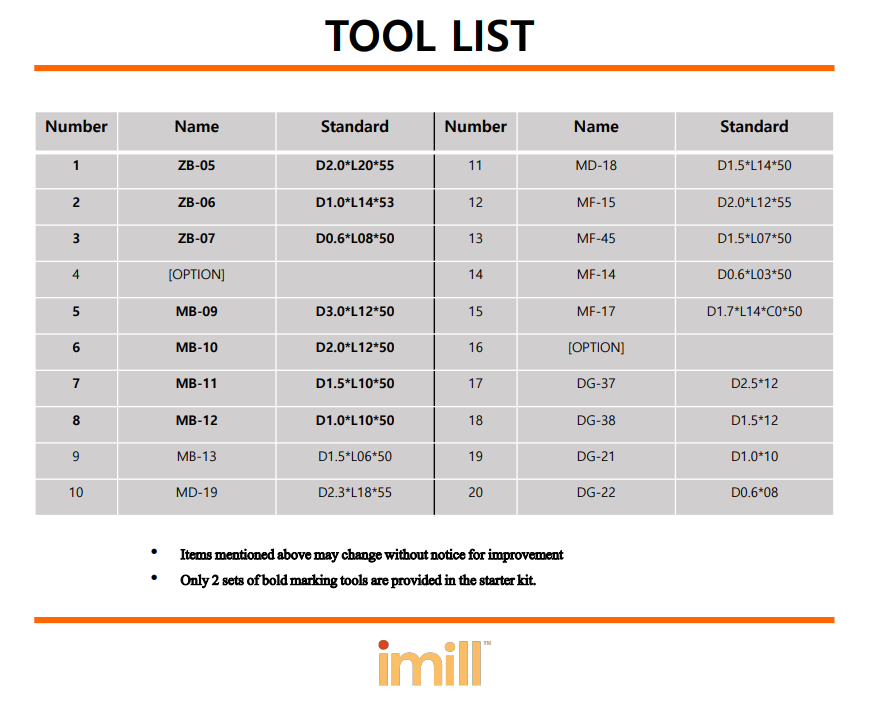

Tool List: 2 sets of tools will be provided in the starter set
- ZB-05 (D2.0*L20*55)
- ZB-06 (D1.0*L14*53)
- ZB-07 (D0.6*L08*50)
- MB-09 (D3.0*L12*50)
- MB-10 (D2.0*L12*50)
- MB-11 (D1.5*L10*50)
- MB-12 (D1.0*L10*50)
