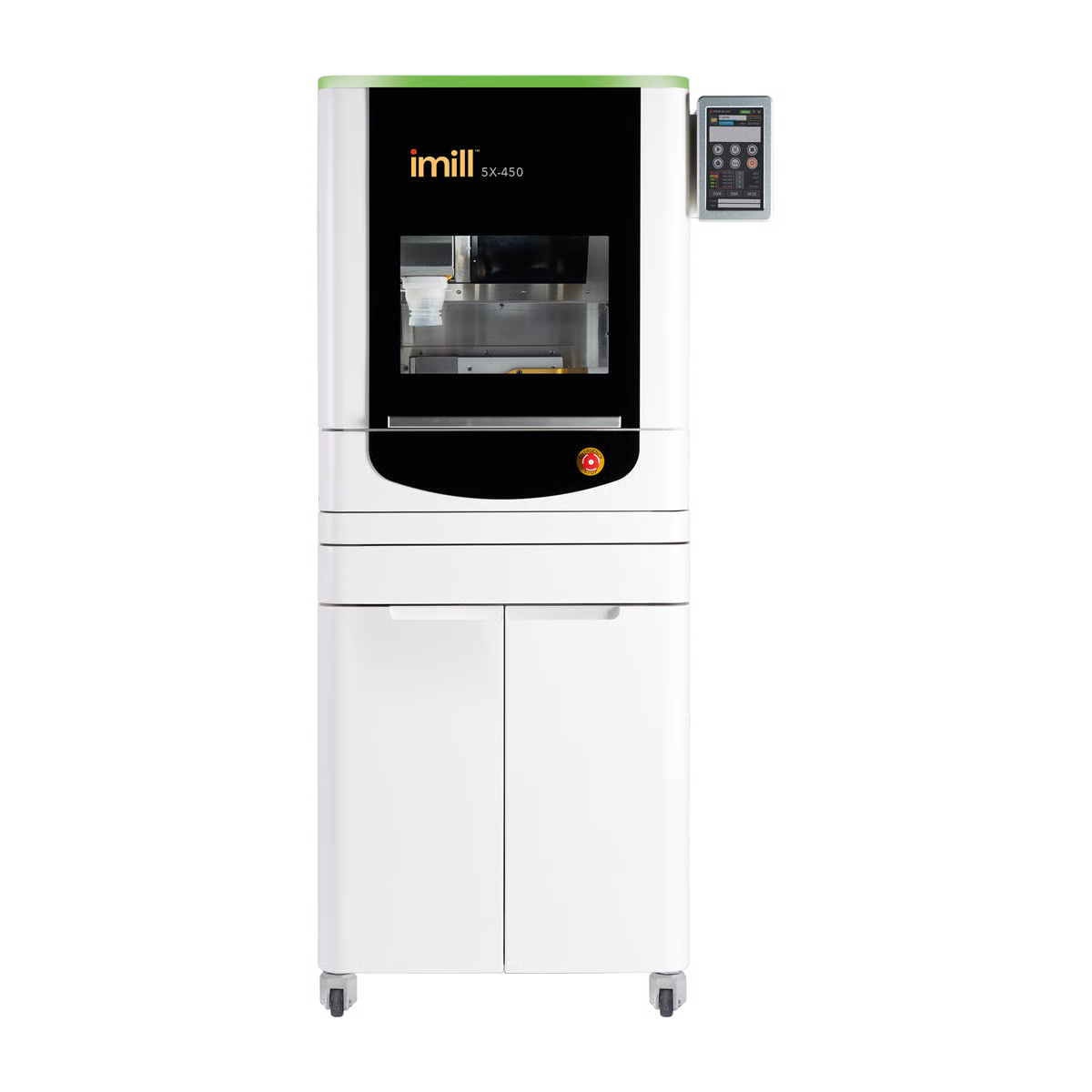

iMill - 5X-450

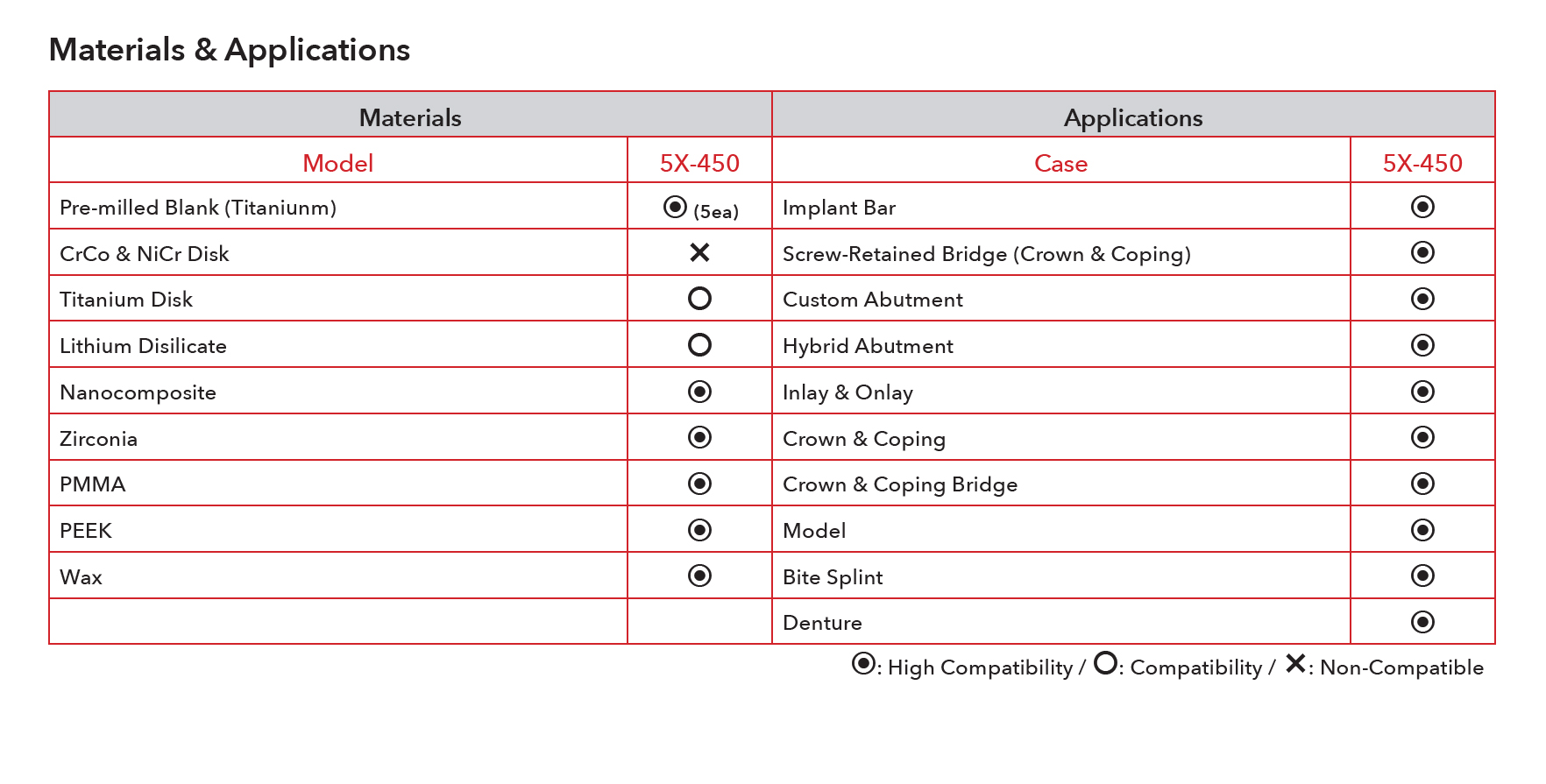

With the incredible power of a best-in-class spindle (AC 1.28kw), you can machine various geometries and materials, including Dentures, Zirconia, CAD Blocks, and Titanium bars. Additionally, using an open C-clamp enables you to precisely machine the facial side, buccal side, and undercut zones.

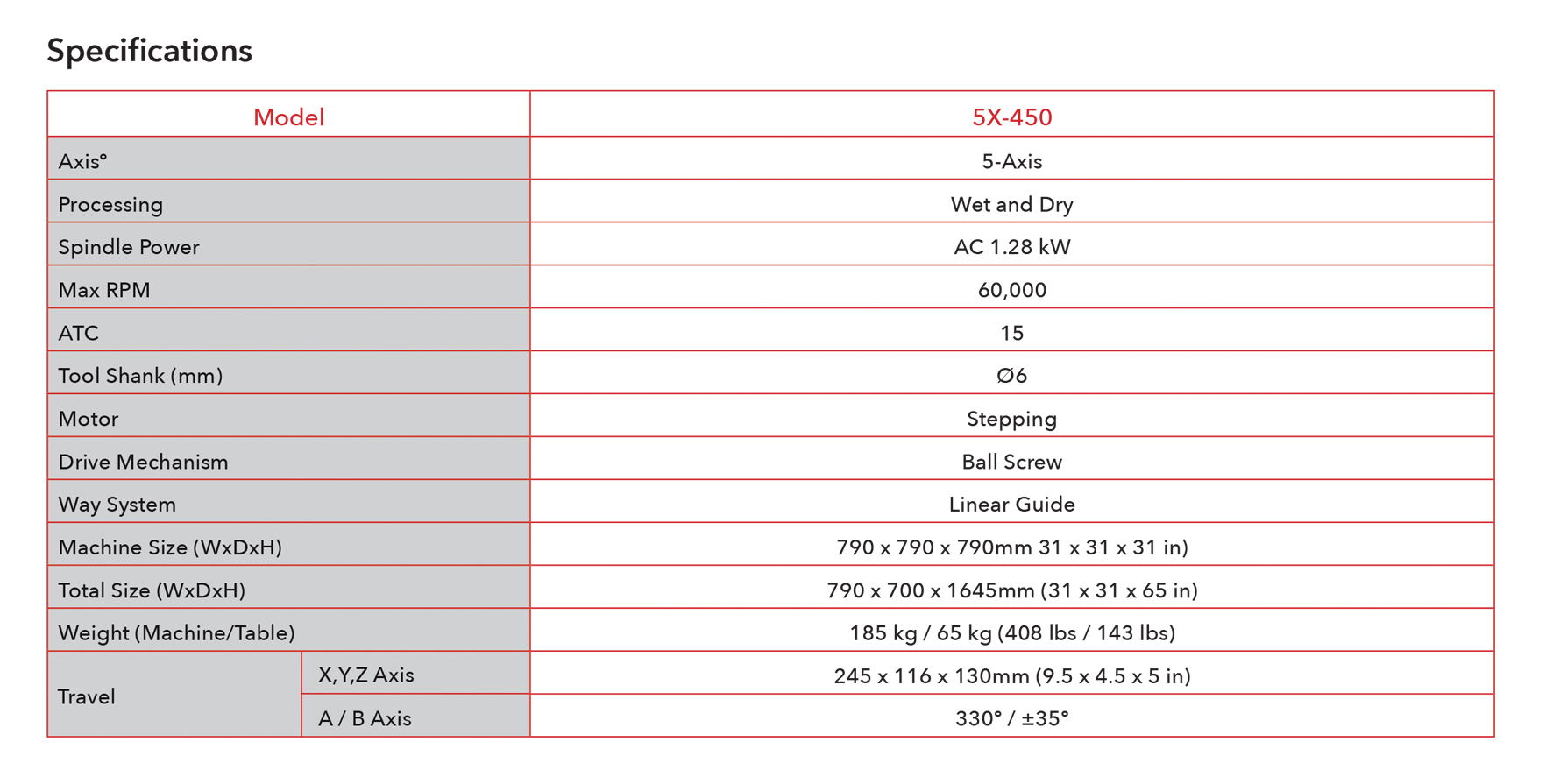

Axes: 5-Axis
Processing: Wet and Dry
Spindle: 1.28 kW / 60,000 RPM
Automatic Tool Change Capacity: 15
Tool Shank (mm) Ø6
Axes Drive: Precision Stepper Motor
Drive Mechanism: Precision Ground Ball Screw
Way System: Linear Guide
Machine Size (WxDxH): 31 x 31 x 31 inch
Total Size (WxDxH): 31 x 31 x 65 inch
Weight (Machine/Table): 408 lbs / 143 lbs
Travel - A / B Axes: 330º / ±35º
Voltage Requirement: 220 VAC / 10A
Compressed Air Requirement: 75 PSI / 3.5 CFM

Includes:
- Mill cabinet/stand
- 2/ea disc holders (c-clamp type)
- 1/ea 5 position Mill-Analog abutment PreForm holder
- 1/ea 6 position CAD block holder
- Coolant - Starter set of zirconia milling tools
- Accessory kit (calibration jigs, hand tools, brushes, etc)

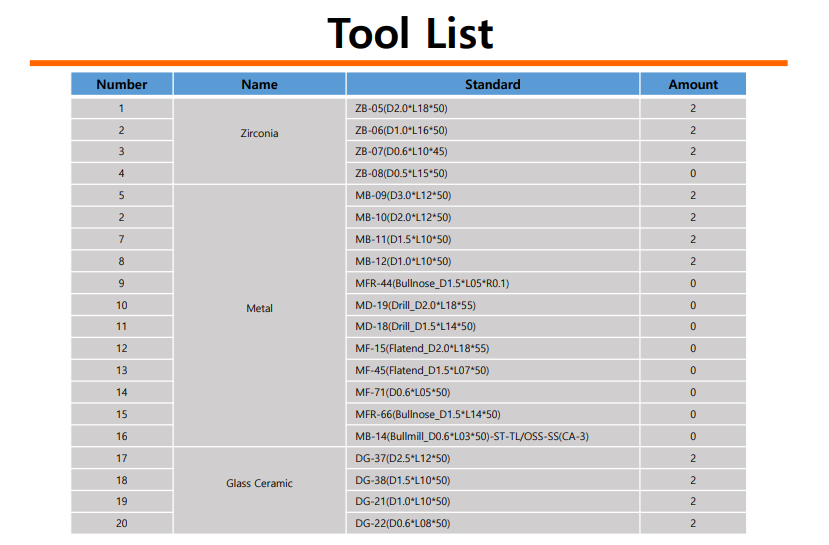

Tool List: 2 sets of tools will be provided in the starter set
- ZB-05 (D2.0*L20*55)
- ZB-06 (D1.0*L14*53)
- ZB-07 (D0.6*L08*50)
- MB-09 (D3.0*L12*50)
- MB-10 (D2.0*L12*50)
- MB-11 (D1.5*L10*50)
- MB-12 (D1.0*L10*50)
- DG-37 (D2.5*L12*50)
- DG-38 (D1.5*L10*50)
- DG-21 (D1.0*L10*50)
- DG-22 (D0.6*L08*50)
