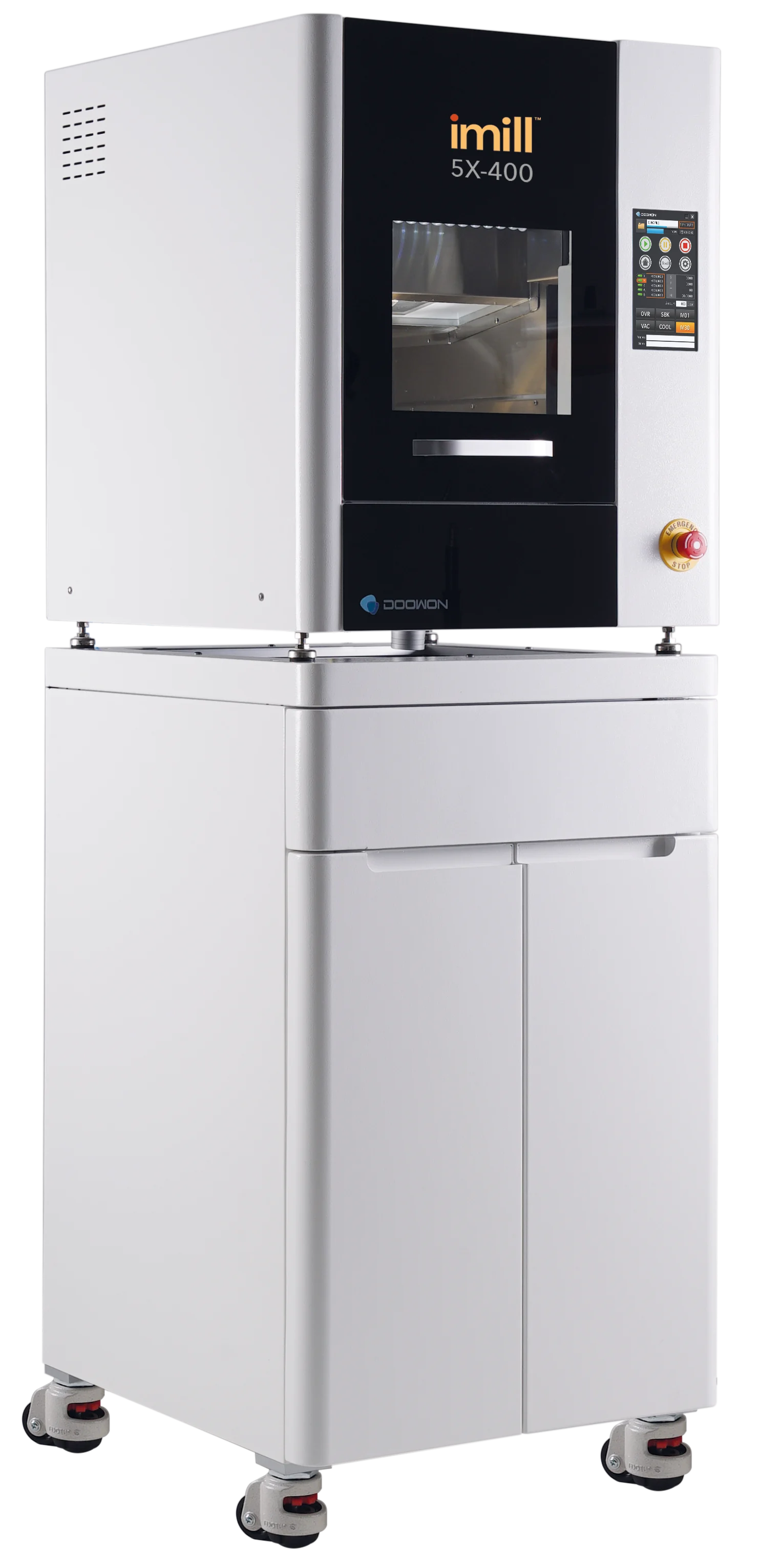

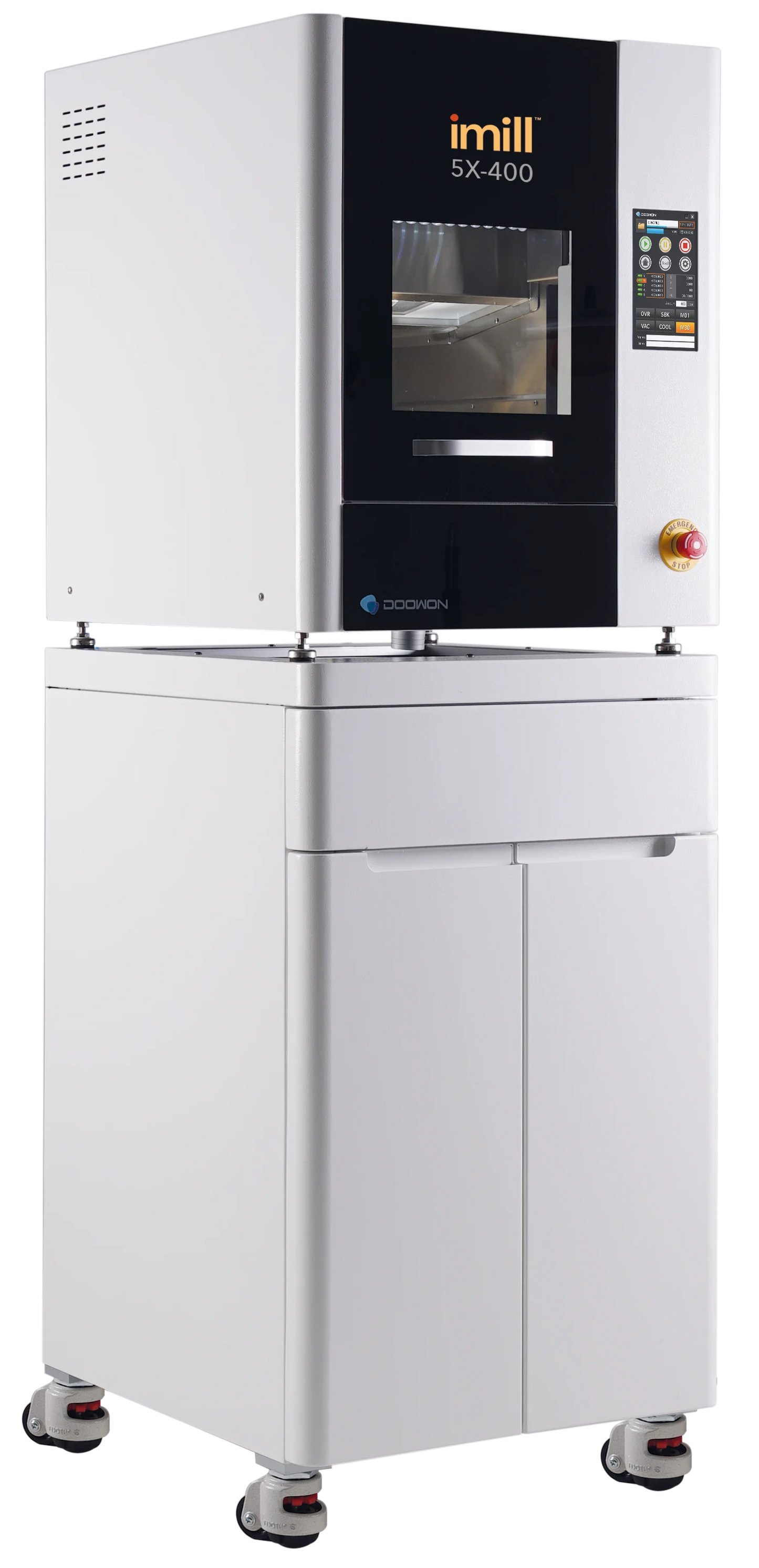

iMill - 5X-400

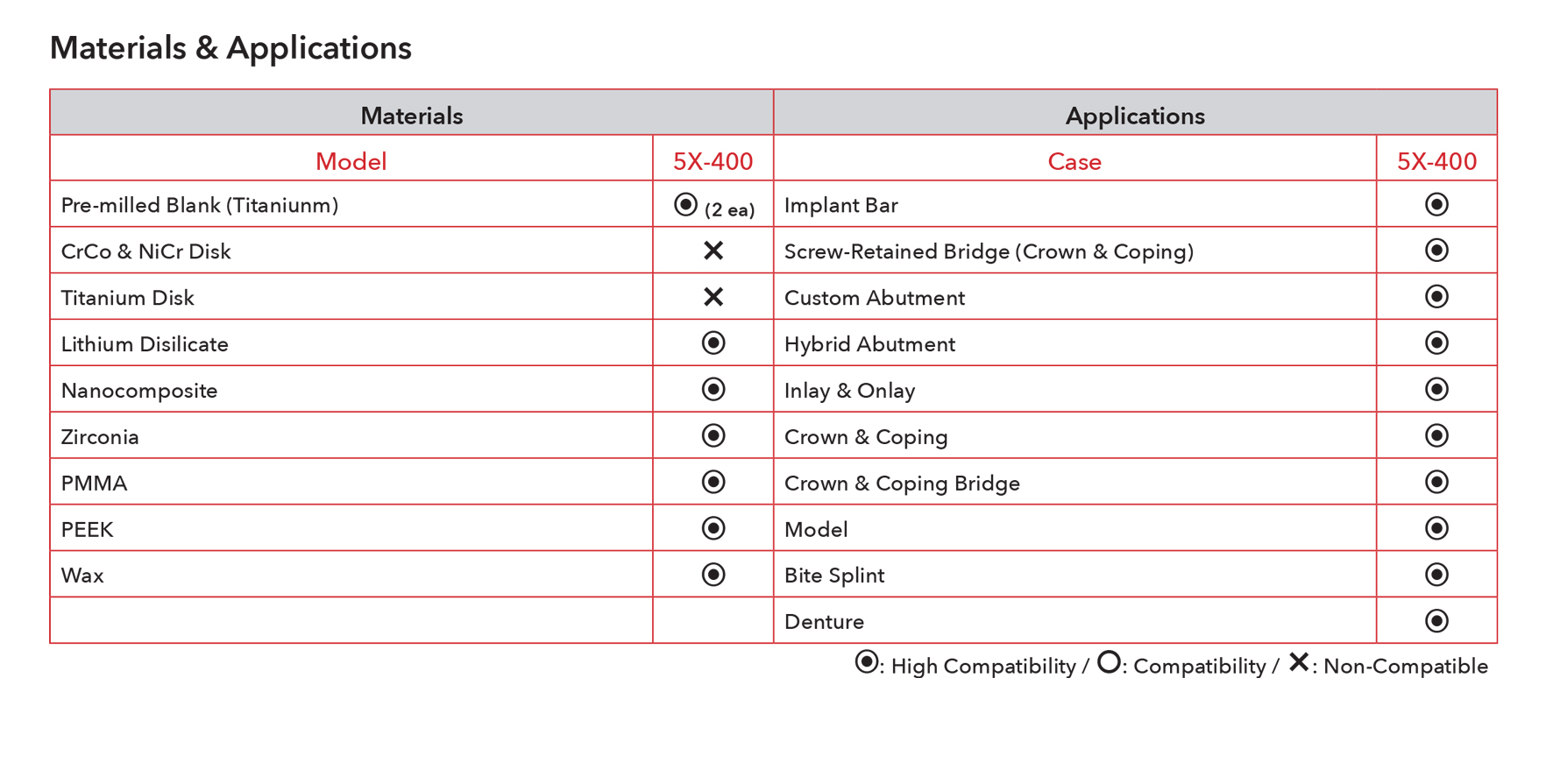

With an 80,000 RPM spindle, the imill 5X-400 delivers unrivalled capability in grinding Lithium Disilicate. Machine various materials, including Zirconia Disks, CAD Blocks, and Pre-milled Blanks. Select between wet and dry machining and enjoy maximum versatility at a reasonable price.

Axes: 5-Axis
Processing: Wet and Dry
Spindle: 0.5 kW / 80,000 RPM by SycoTec GmbH
Automatic Tool Change Capacity: 10
Tool Shank (mm) Ø4
Drive Mechanism: Ball Screw
Way System: Linear Guide
Machine Size (WxDxH): 22.5 x 26 x 27 inch
Total Size (WxDxH): 22.5 x 26 x 64 inch
Weight (Machine/Table): 220.5 lbs / 143.5 lbs Travel - A / B Axes: ±35º / 360º
