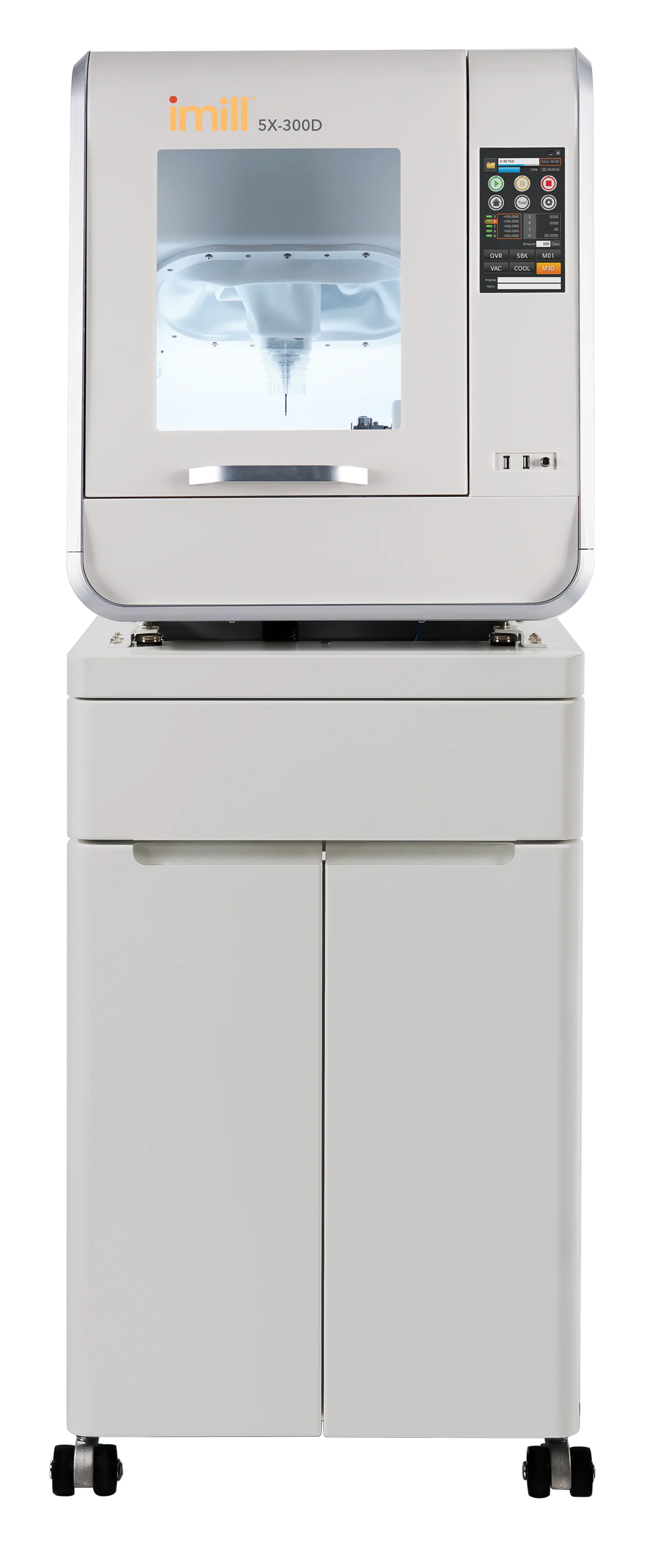

iMill - 5X-300D

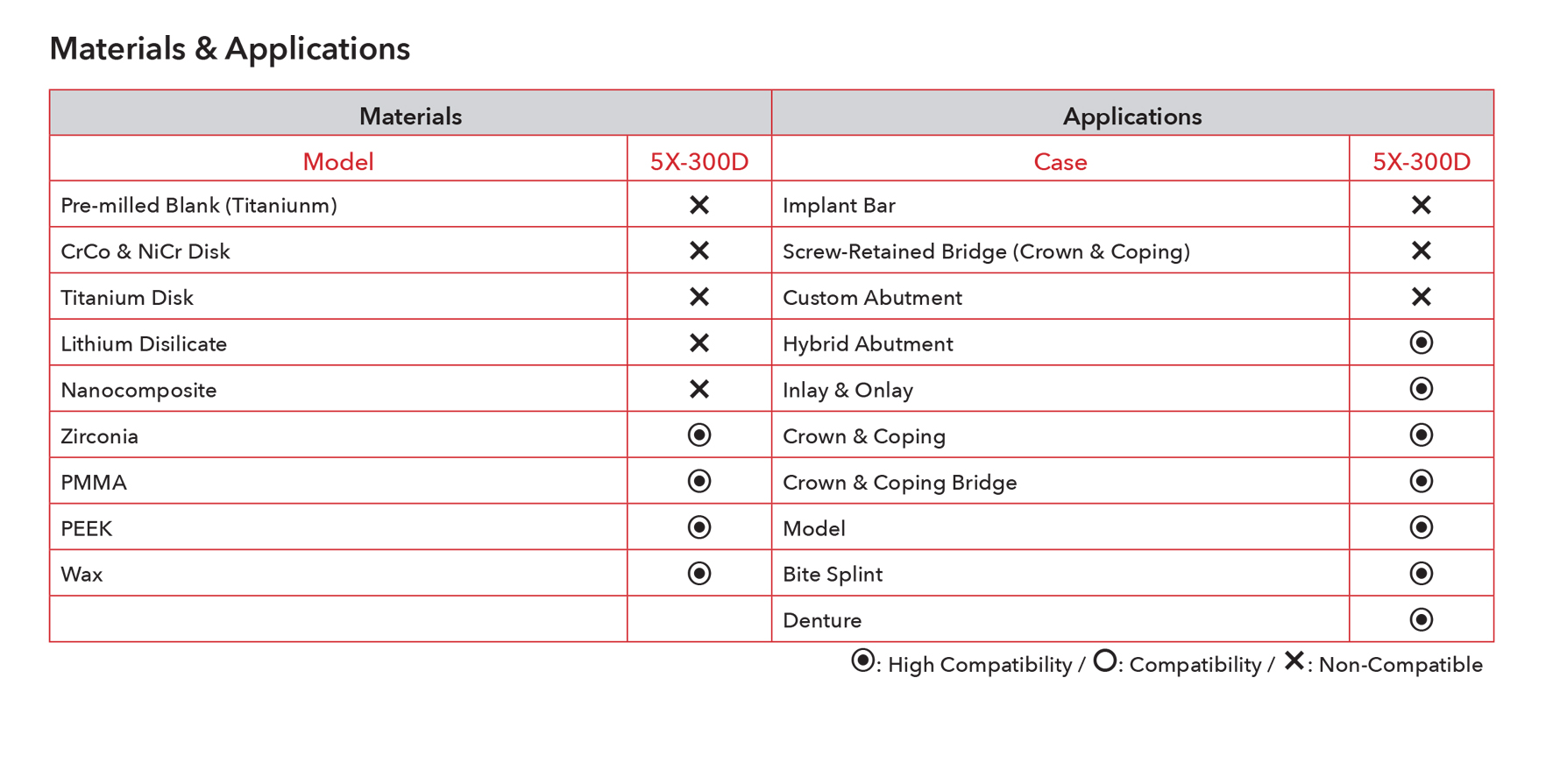

The imill 5X-300D is ideal for producing a variety of prosthetics from disk materials such as zirconia, PMMA, PEEK, and Wax. Designed for ergonomics and convenience, this mill features a 7° tilted door that allows for clear viewing of the milling progress, and its wide opening provides ample space for changing materials and tools.

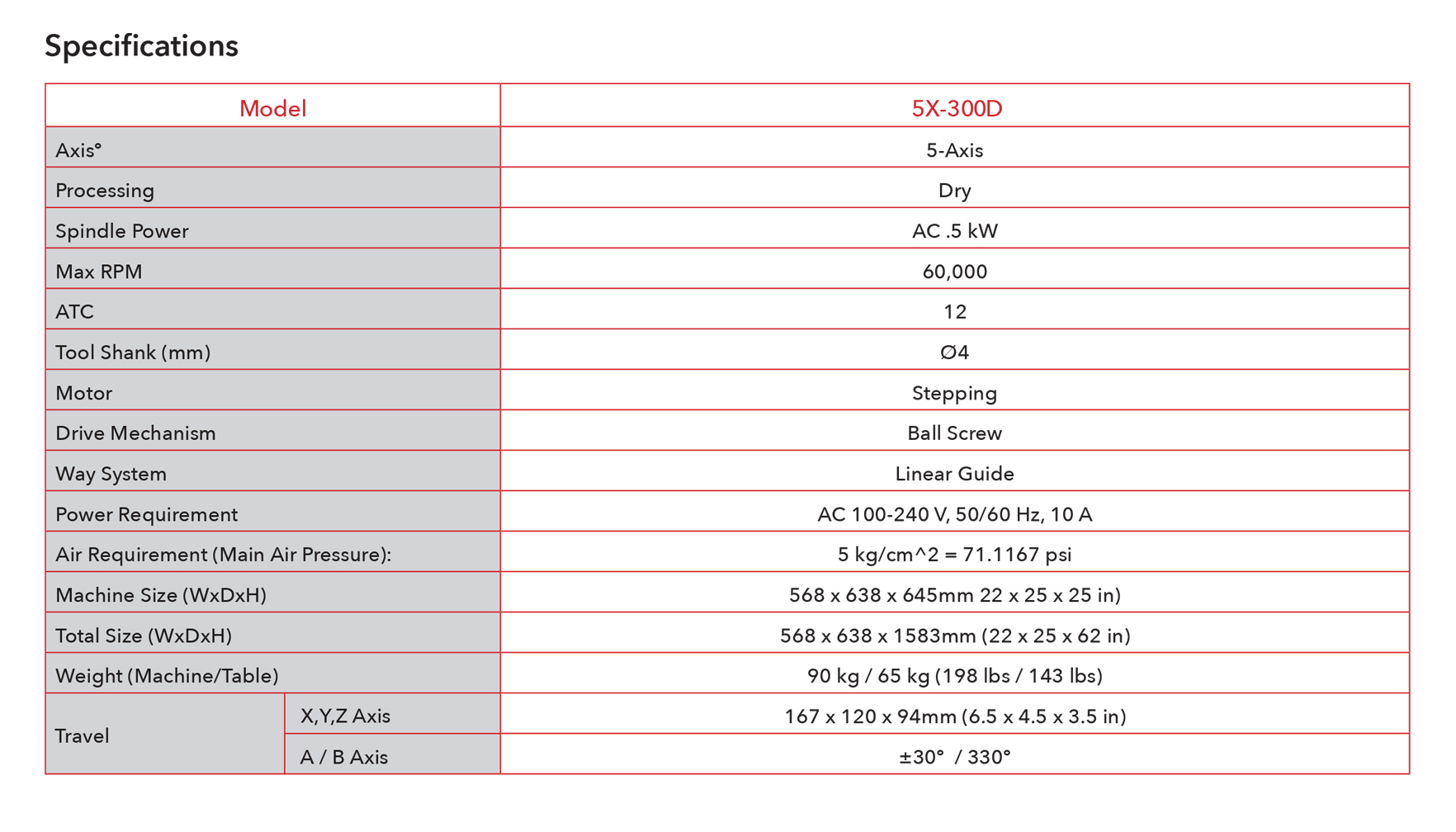

Axes: 5-Axis
Processing: Dry
Spindle: 500W / 60,000 RPM
Automatic Tool Change Capacity: 12
Tool Shank (mm) Ø4
Axes Drive: Precision Stepper-Motor
Drive Mechanism: Ball Screw
Way System: Linear Guide
Machine Size (WxDxH): 22.5 x 24.5 x 25.2 inch
Total Size (WxDxH): -
Weight (Machine/Table): 198.5 lbs / -
Travel - A / B Axes: 360º / ±30º
Includes:
- 2/ea disc holder (c-clamp style)
- Starter set of milling tools
- Accessory kit (calibration jigs, hand tools, brushes, etc)
