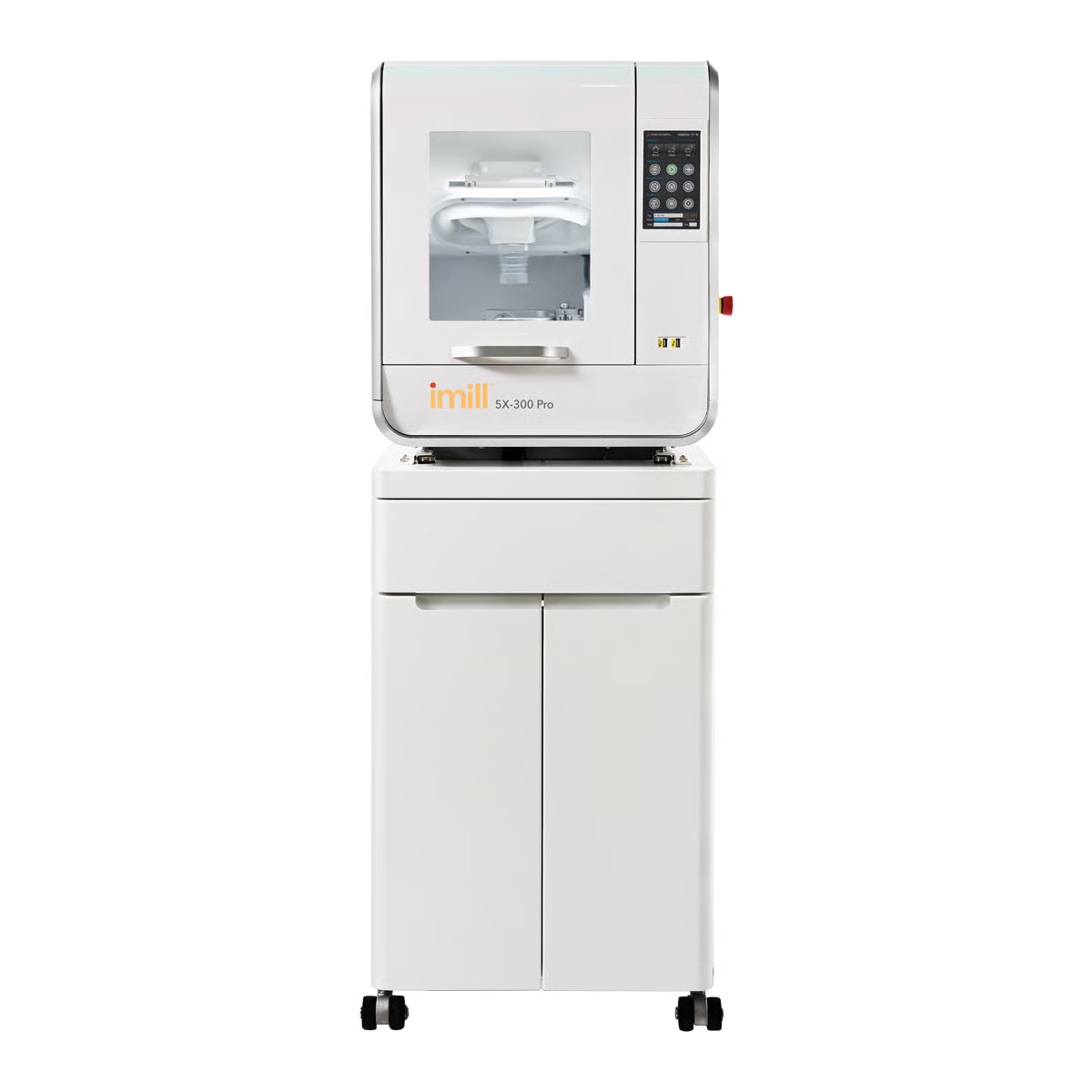

iMill - 5X-300 PRO

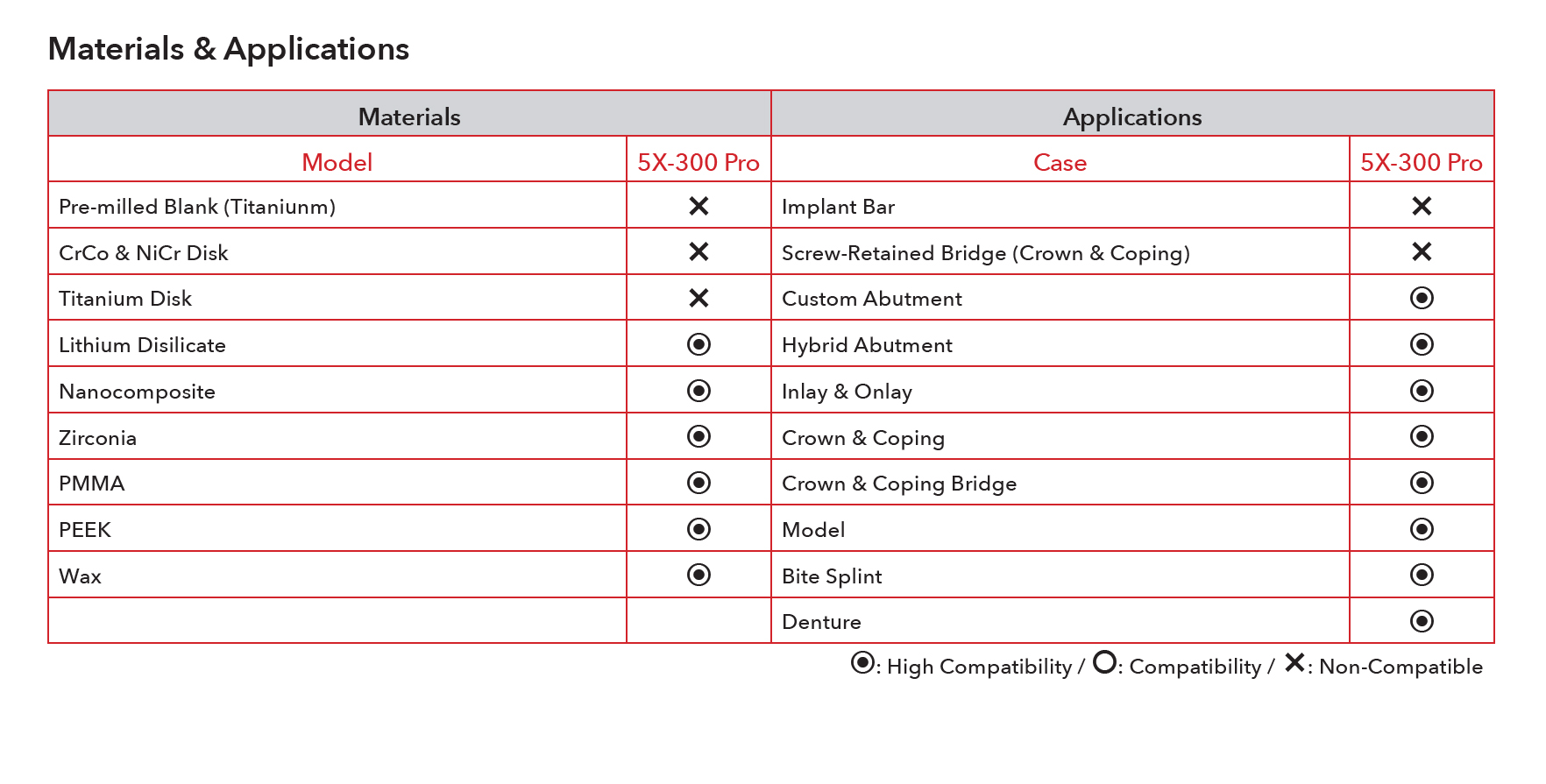

The imill 5x-300 Pro is ideal for processing a variety of indications, including crown and bridge, hybrid abutment, partial denture, and more. It is optimized for same-day treatment (via lithium disilicate or nanocomposite CAD blocks) and can be easily installed in any clinic or lab - thanks to its all-in-one configuration, the 5x-300 Pro requires no external compressed air or vacuum connection.

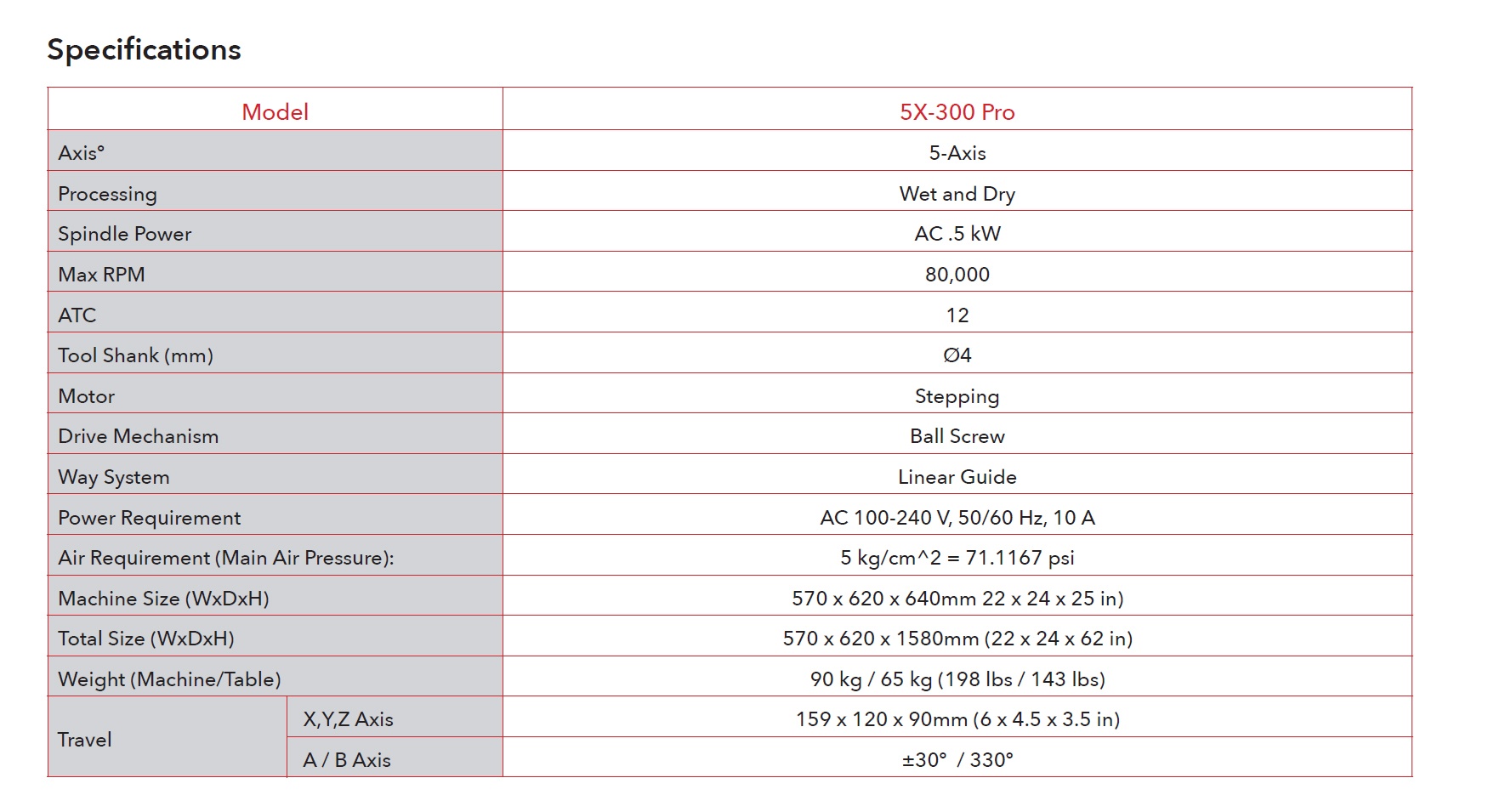

Axes: 5-Axis
Processing: Wet and Dry
Spindle: 500W / 80,000 RPM
Automatic Tool Change Capacity: 12
Tool Shank (mm) Ø4
Axes Drive: Precision Stepper-Motor
Drive Mechanism: Precision Ground Ball Screw
Way System: Linear Guide
Machine Size (WxDxH): 22 x 24 x 25 inch
Total Size (WxDxH): 22 x 24 x 62 inch
Weight (Machine/Table): 198 lbs / 143 lbs
Travel - A / B Axes: 330º / ±30º
Voltage Requirement: 220 VAC / 10A
Compressed Air Requirement: n/a

Includes:
- Mill cabinet/stand
- 1/ea disc holder (c-clamp style)
- 1/ea 6 position CAD block holder
- Coolant - Starter set of milling tools
- Accessory kit (calibration jigs, hand tools, brushes, etc)

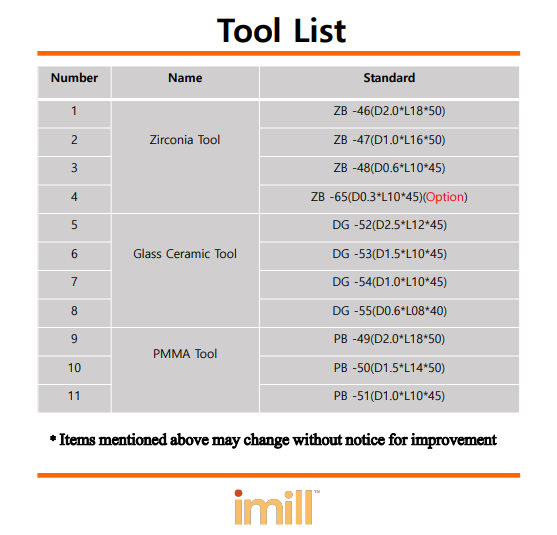

Tool List
- ZB-46 (D2.0*L18*50)
- ZB-47 (D1.0*L16*50)
- ZB-48 (D0.6*L10*45)
- DG-52 (D2.5*L12*45)
- DG-53 (D1.5*L10*45)
- DG-54 (D1.0*L10*45)
- DG -55 (D0.6*L08*40)
- PB-49 (D2.0*L18*50)
- PB-50 (D1.5*L14*50)
- PB-51 (D1.0*L10*45)
