DESS

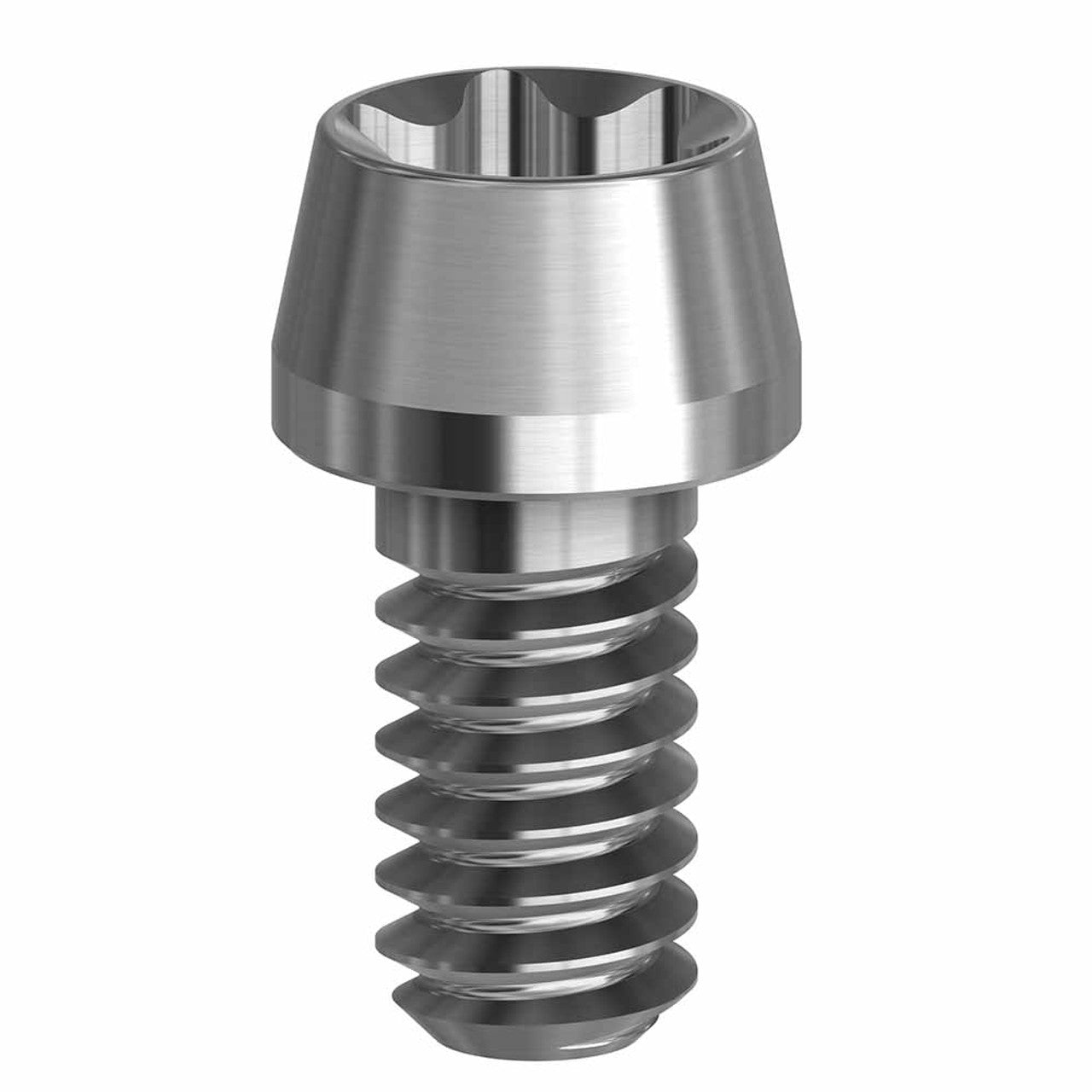

Full Arch Screw MultiUnit RP 19.069
Full Arch Screw MultiUnit RP 19.069
CALL TO INQUIRE 1-888-360-5550
This is an Flat Seat Screw final screw that takes the DESS Angulated Screw Channel driver. Torque is 15Ncm.
It can be used to move the screw access hole up to 25 degrees in any direction.
▶ It is compatible with the following top (Ø 4.8 mm) of Multiunit Abutments without any Ti Bases:
3i Biomet Certain® Low Profile & 3i Osseotite® External Hex
Astra EV® Multibase
Blue Sky Bio® (BSB)
BioHorizons® Internal Hex, BioHorizons® Tapered Pro Conical, & BioHorizons® Conelog
Hahn™
Hiossen® / Osstem
Keystone® Genesis / Prima
Megagen Anyridge® N Type
Neodent GM®
Nobel Active®, Nobel Replace®, & Nobel Brånemark® (NP and RP)
Noris Medical®
DESS® Multiunits
▶ It is also compatible with the top (Ø 4.6 mm) of Straumann SRA without any Ti Bases.
All of our screws are stress tested to 150% of the nominal torque value and can also be used as lab screws.
| REF | DESCRIPTION | HEAD DIAMETER | HEAD BASE ANGLE | OVERALL LENGTH | HEAD LENGTH | DISTANCE FROM HEAD TO THREAD | THERAD LENGTH | THREAD TYPE | RECOMMENDED TORQUE VALUE | SOCKET |
| 19.069 | Screw Torx® 06 on Multi-Unit® RP | 1.9/2.3 | 0° | 4.1 | 1.4 | 0.35 | 2.35 | M1.4 | 15 Ncm | TORX® Ball (Power Ball type) |
