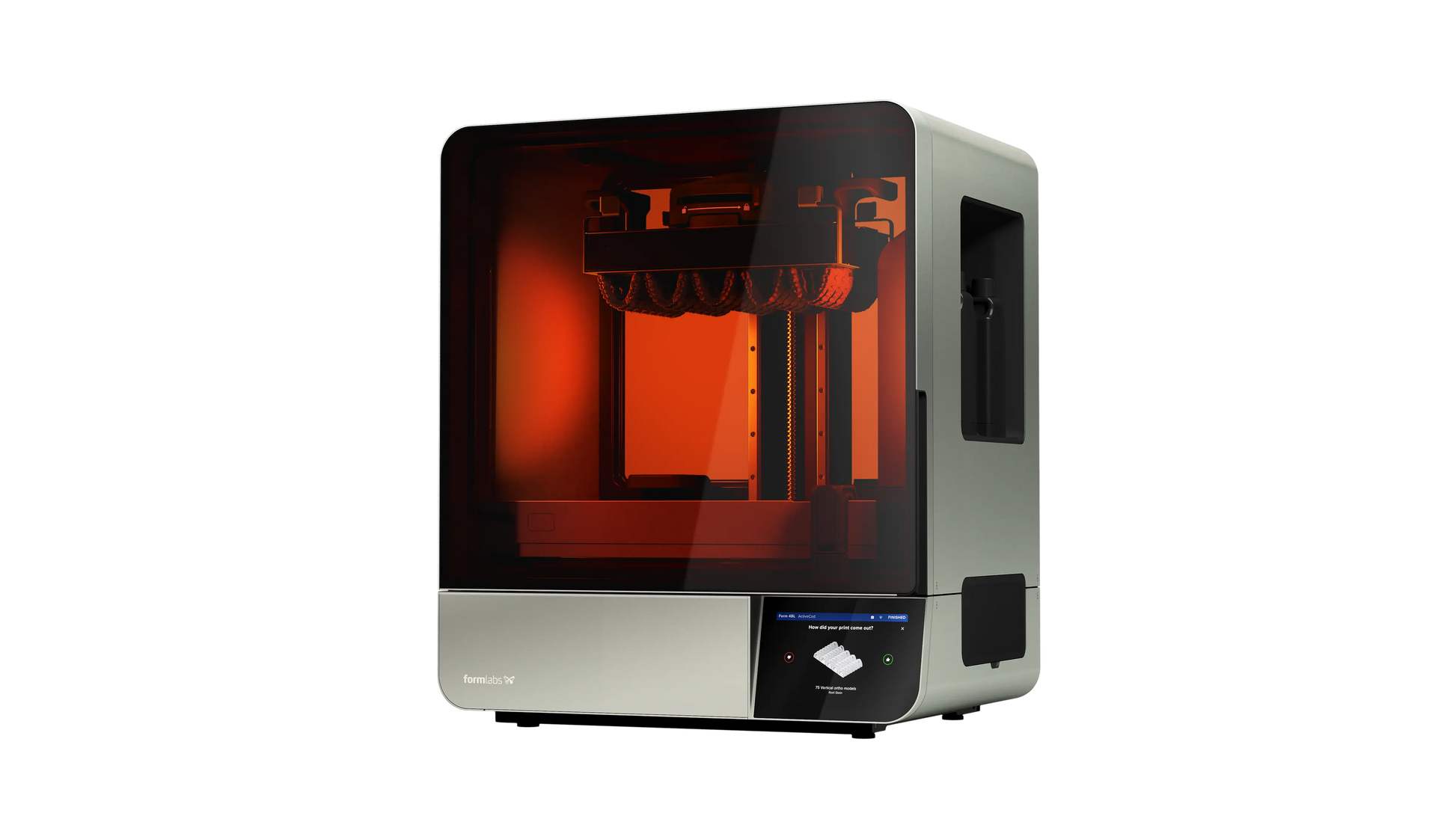

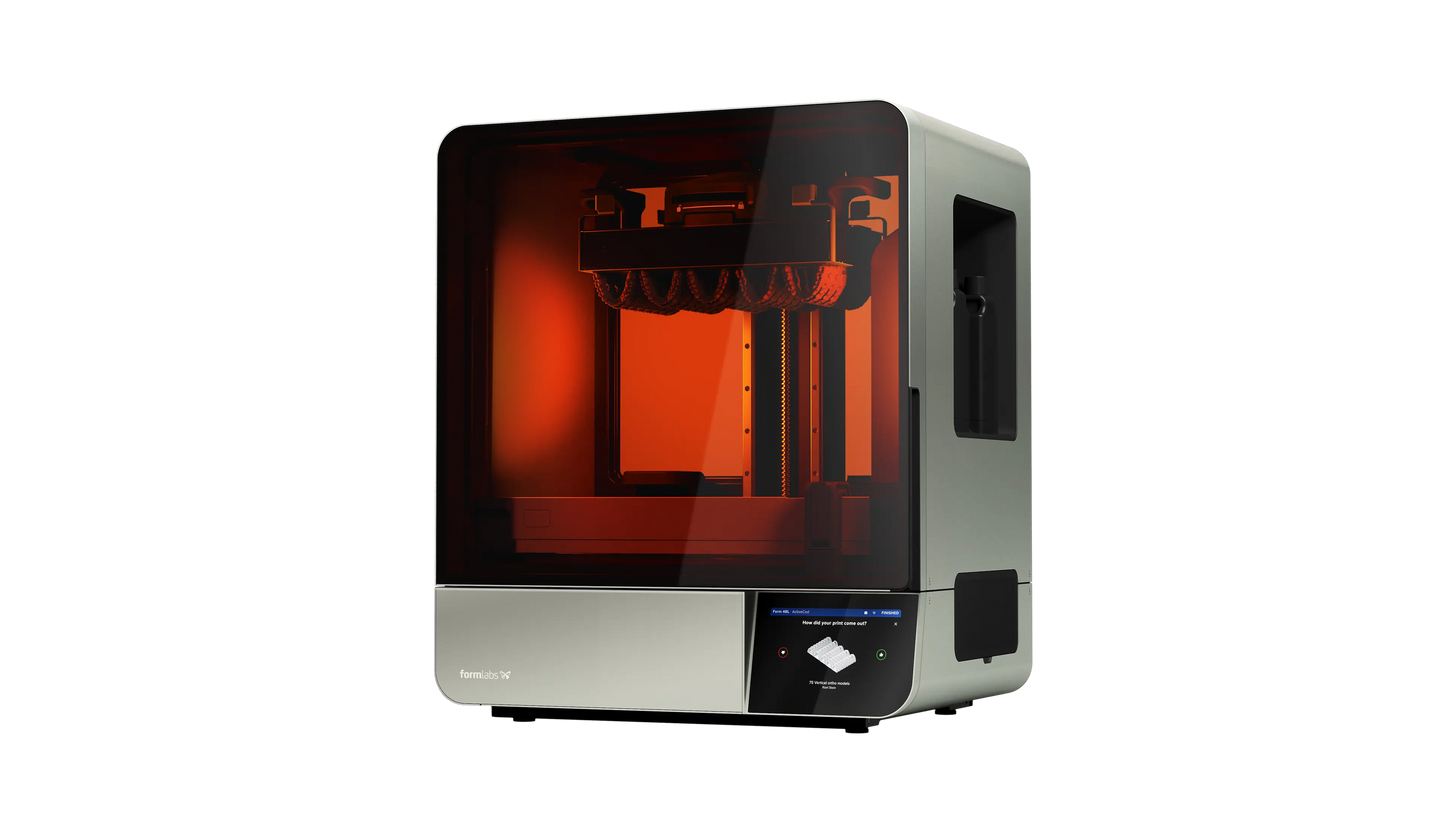

Formlabs 4BL Dental 3D Printer
Formlabs 4BL Dental 3D Printer
CALL TO INQUIRE 1-888-360-5550
Freedom to print your preferred third-party materials
Produce restorative models for <$1 and reduce costs by 50%
Up to 20 restorative or 120 aligner models per hour
Consistent accuracy backed by fleet-wide 98% print success rate
Custom system integration for large-scale production
Technology
Masked Stereolithography (MSLA)
Printer Engine
Low Force Display™ (LFD)
Key Components of the Print Engine
Backlight Unit
Light Processing Unit 4L (LPU 4L)
Release Texture
Flexible Film Resin Tank
Intelligent Control Systems
Automatic Resin Handling
Light Source
Backlight Unit: 145 uniform-wavelength LEDs, a plano-convex lens array, and integrated air cooling
405 nm optical wavelength
16 mW/cm² optical power intensity delivered to the cure plane
46 µm pixel size
Maximum Print Speed¹
80 mm/hr
3.1 in/hour
Typical Print Speed²
Average: 24 mm/hour (0.9 in/hour) across all materials
Range: 20-35 mm/hour (0.8-1.4 in/hour) depending on material
Typical Dimensional Tolerances (XY)³
1-30 mm features: ±0.15% (lower limit: ±0.02 mm)
31-80 mm features: ±0.3% (lower limit: ±0.06 mm)
81-150 mm features: ±0.3% (lower limit: ±0.15 mm)
Surface Accuracy (Restorative Models)⁴
On average with Precision Model Resin:
- 99.9% of surfaces within 100 μm of CAD model
- 96.7% of surfaces within 50 μm of CAD model
- 71.4% of surfaces within 25 μm of CAD model
Reliability
Testing in progress.
Materials
32 industry-leading Formlabs materials, including 12 biocompatible, or third-party materials using Open Material Mode. More exciting new materials are currently in development.
Explore Materials
Biocompatible Materials
Yes
Build Volume (W x D x H)⁵
35.3 × 19.6 × 35.0 cm
13.9 x 7.7 x 13.8 in
24.2 liters
Build Area
692 cm²
107 in²
Maximum Part Length⁶
Not measured
XY Resolution⁷
46 µm with pre-tuned anti-aliasing for subpixel resolution
Superior fine feature performance and sharp features compared to the Form 3BL Series
Layer Thickness⁸
25–200 µm
0.001–0.008 in
Resin Cartridges
2
Resin Cartridge Type
Next-generation resin cartridge
5-10x faster filling
63% less waste
30% less shelf space
Resin Heating
High speed conduction resin heating with infrared temperature sensing
Internal Temperature
Auto-heats resin to 25–45 °C (77–113 °F), depending on material
Force Sensing
Z-Axis Force Sensor, automatically optimizes print quality and print speed based on part geometry and selected material.
Supports
Auto-generated
Light-touch removal
Design/CAD Specifications
Printer Dimensions (W x D x H)
66.4 x 52.8 x 79.4 cm
26.1 x 20.8 x 31.3 in
Minimum Access Dimensions (W x D x H)
88.9 x 116.9 x 81.3 cm
35 x 46 x 32 in
Printer Weight
58.5 kg
129 lb
Operating Environment
18–28 °C
64–82 °F
Power Requirements
100-240 VAC
9 A
50/60 Hz
900 W
Connectivity
Wi-Fi (2.4 and 5 GHz; IEEE 802.11 b/g/n/ac, WPA/WPA2)
Ethernet (1000 Mbit)
USB-C 2.0
Printer Control⁹
7" interactive touchscreen
1280 × 800 resolution
Languages: English, German, French, Spanish, Italian, Japanese, Simplified Chinese
Alerts
Touchscreen alerts
SMS/email via Dashboard
Speaker for audio alerts
Sensors and Control Systems
6 upgraded sensors that precisely control resin temperature, resin level, print forces, and print status:
High-speed conduction resin heating with infrared temperature sensing
Ultrasonic Resin Level Sense: controls resin in the tank
Z-Axis Force Sensor: controls and minimizes print forces
Resin Cartridge Load Cell: measures exact resin level in cartridge
Printer Leveling Sensor
Camera
Camera
Integrated camera
2592 x 1944 resolution (5MP)
Remote monitoring, print history, and print timelapses
Can be easily disabled, covered, or removed
Software
PreForm System Requirements
Windows 10 (64-bit only, ARM not supported) and up
Mac OS X 10.15 and up
OpenGL 2.1
C++ runtime library from Microsoft (Windows only)
4 GB RAM (8 GB recommended)
PreForm File Types
STL, OBJ, and 3MF file input
FORM file output
PreForm Print Setup Features
One-Click Print
Adaptive layer thickness for faster printing with fine details
Remote Print
Auto-orient for optimal print position
Auto-mesh repair
Auto-generation of supports
Manual editing of supports
Rotate, scale, duplicate, and mirror
Layer slicer for path inspection
Custom print settings
Available in multiple languages
Dashboard Printer Management Features
Manage prints and printers via the cloud
Track resin and tank usage over time
SMS and email alerts
Create enterprise group accounts with admins to more easily share printers and control access
Resin Tank Estimated Lifetime¹⁰
75,000+ layers with any Formlabs material
For example: approximately 340 prints using clear aligner models (22 mm tall), any resin, and 100 µm layer height
Light Processing Unit Estimated Lifetime¹¹
600k - 1.9M layers, depending on material and layer height
For example: approximately 5,000 prints using diagnostic models (22 mm tall), Grey Resin V5, and 100 µm layer height
