Final Screw UniAbutment / MUA RP 19.018
Final Screw UniAbutment / MUA RP 19.018
CALL TO INQUIRE 1-888-360-5550

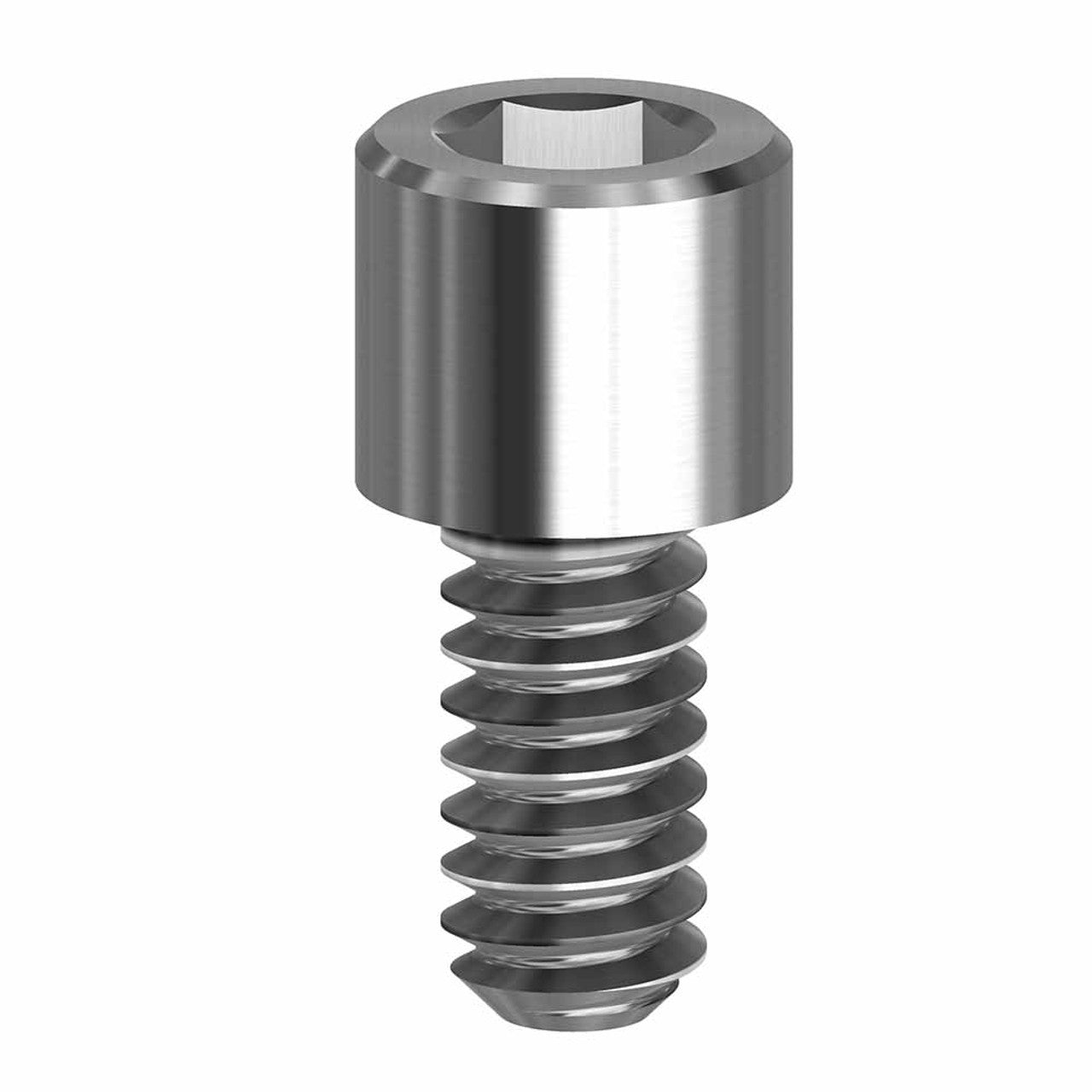

This final screw that takes a 0.050/1.27mm Hex driver. Torque is 15Ncm.
It is compatible with Astra® Osseospeed 20º and 45º UniAbutments.
It is compatible with the following top (Ø 4.8 mm) of Multiunit Abutments:
3i Biomet Certain® Low Profile & 3i Osseotite® External Hex
Astra EV® Multibase
Blue Sky Bio® (BSB)
BioHorizons® Internal Hex, BioHorizons® Tapered Pro Conical, & BioHorizons® Conelog
Hahn™
Hiossen® / Osstem
Keystone® Genesis / Prima
Megagen Anyridge® N Type
Neodent GM®
Nobel Active®, Nobel Replace®, & Nobel Brånemark® (NP and RP)
Noris Medical®
DESS® Multiunits
All of our screws are stress tested to 150% of the nominal torque value and can also be used as lab screws.
DESS library files will enable you to create a bridge directly to the MUA without any Ti Bases.
It is also available in a pack of 10 - SKU 19.018-P10.
| REF | DESCRIPTION | HEAD DIAMETER | HEAD BASE ANGLE | OVERALL LENGTH | HEAD LENGTH | DISTANCE FROM HEAD TO THREAD | THERAD LENGTH | THREAD TYPE | RECOMMENDED TORQUE VALUE | SOCKET |
| 19.018 | Screw HEX 0.050" / 1.27 mm on UniAbutment / Multi-Unit® RP |
2.3 | 0° | 4.8 | 1.9 | 0 | 2.9 | M1.4 | 15 Ncm | HEX 0.050" / 1.27 mm |
| 19.006 | Screw UG on Multi-Unit® RP | 2 | 0° | 3.45 | 1.35 | 0 | 2.1 | M1.4 | 15 Ncm | Unigrip® |
