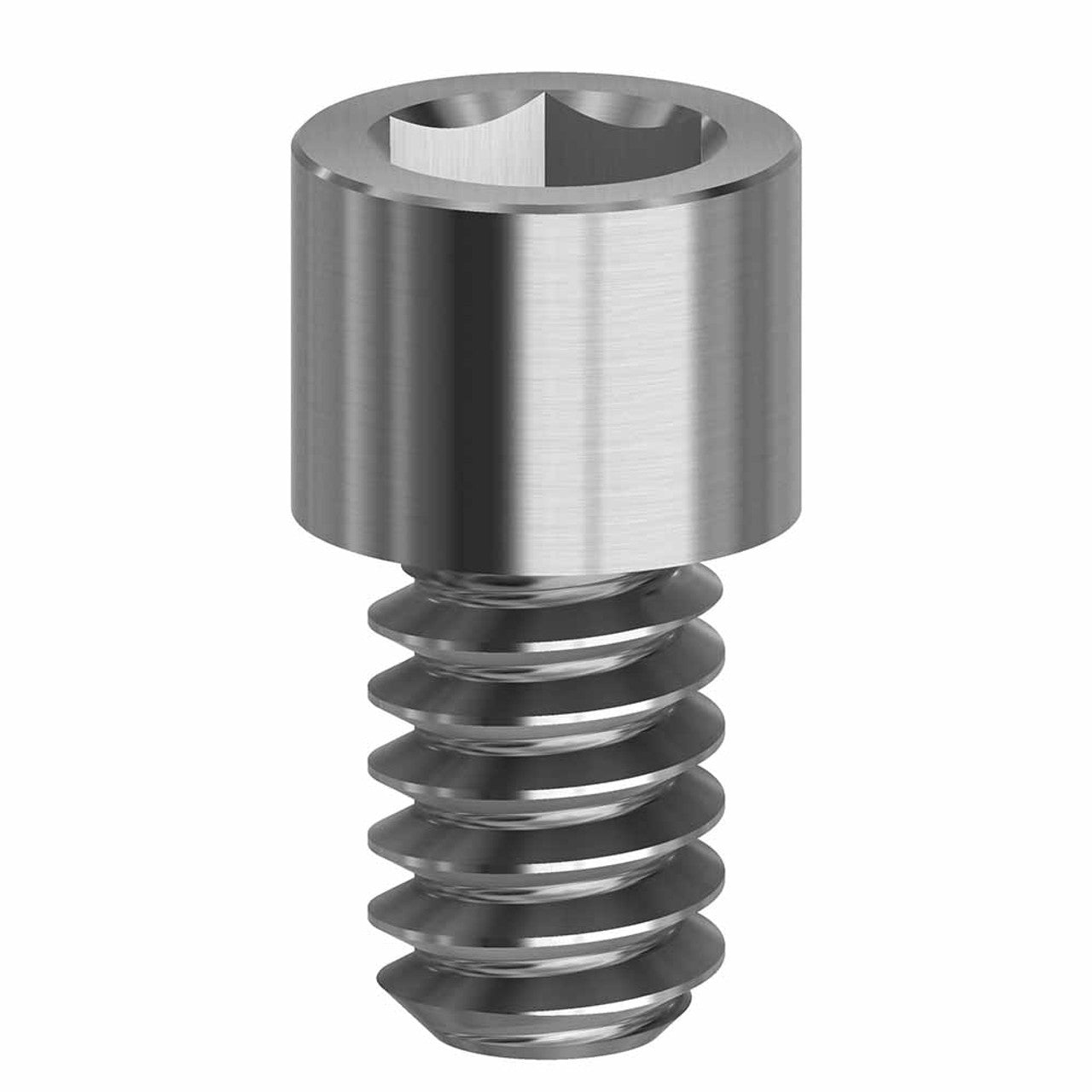

Final Screw MultiUnit RP 0.048/1.22 Hex 19.065
Final Screw MultiUnit RP 0.048/1.22 Hex 19.065
CALL TO INQUIRE 1-888-360-5550
The final screw requires the use of a 0.048/1.22 Hex screwdriver and is for use with the following DESS multiunit parts - 15.007, 15.007/8, 24.007, 28.007, 11.007-P10.
Torque is 15Ncm.
It is compatible with the following top (Ø 4.8 mm) of Multiunit Abutments:
3i Biomet Certain® Low Profile & 3i Osseotite® External Hex
Astra EV® Multibase
Blue Sky Bio® (BSB)
BioHorizons® Internal Hex, BioHorizons® Tapered Pro Conical, & BioHorizons® Conelog
Hahn™
Hiossen® / Osstem
Keystone® Genesis / Prima
Megagen Anyridge® N Type
Neodent GM®
Nobel Active®, Nobel Replace®, & Nobel Brånemark® (NP and RP)
Noris Medical®
DESS® Multiunits
All of our screws are stress tested to 150% of the nominal torque value and can also be used as lab screws.
| REF | DESCRIPTION | HEAD DIAMETER | HEAD BASE ANGLE | OVERALL LENGTH | HEAD LENGTH | DISTANCE FROM HEAD TO THREAD | THERAD LENGTH | THREAD TYPE | RECOMMENDED TORQUE VALUE | SOCKET |
| 19.065 | Screw HEX 0.048"/1.22 mm on Multi-Unit® RP |
2 | 0° | 3.45 | 1.35 | 0 | 2.1 | M1.4 | 15 Ncm | HEX 0.048" / 1.22 mm |
| 19.006 | Screw UG on Multi-Unit® RP | 2 | 0° | 3.45 | 1.35 | 0 | 2.1 | M1.4 | 15 Ncm | Unigrip® |
