DLC & Anodized Full Arch Screw MultiUnit RP 19.269
DLC & Anodized Full Arch Screw MultiUnit RP 19.269
CALL TO INQUIRE 1-888-360-5550

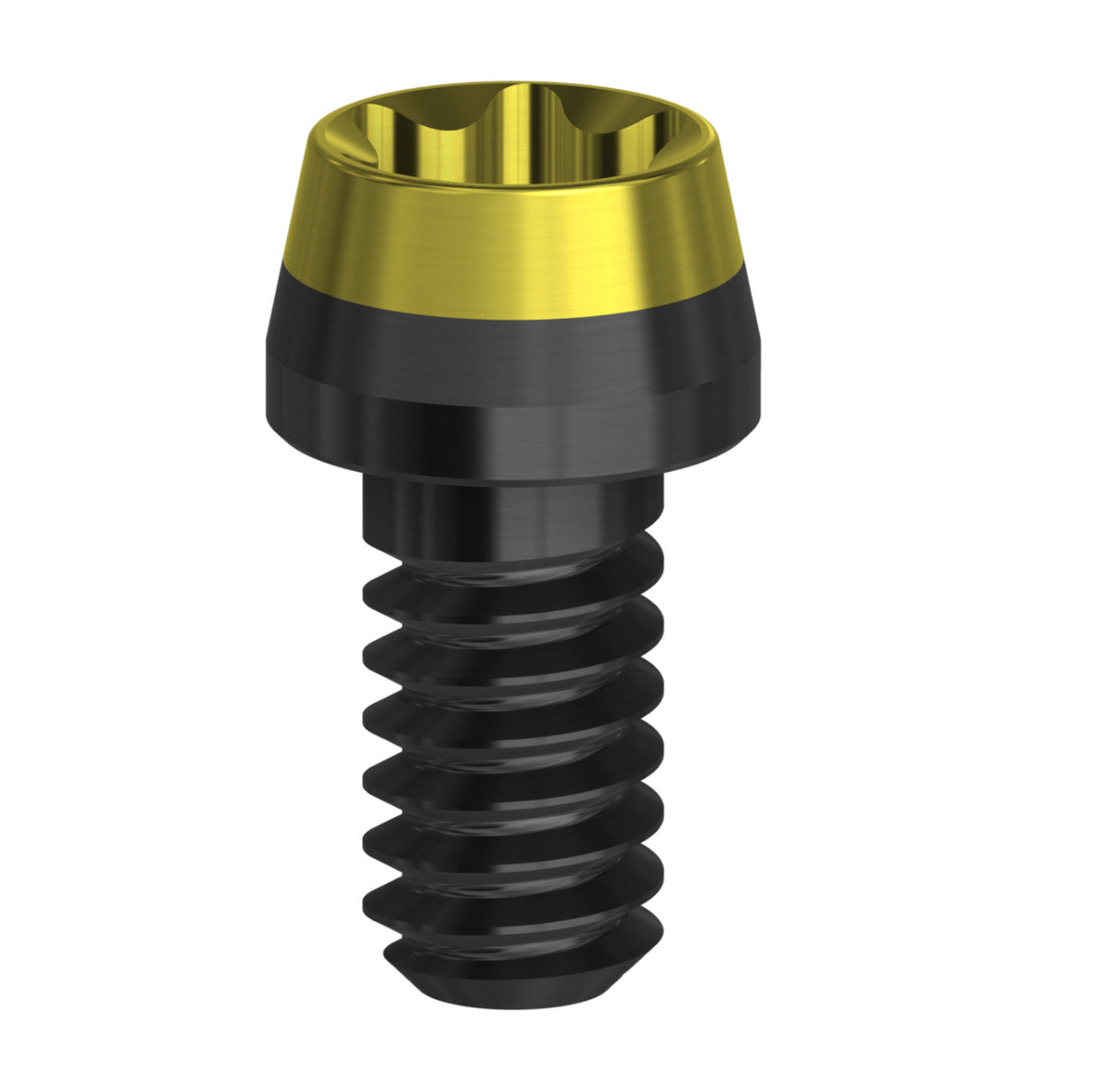

This is a final screw with a DLC coating that takes a DESS Angulated Screw Channel driver. Torque is 15Ncm.
A DLC coating is a diamond like coating that provides a low friction surface for a better hold.
▶ It is compatible with the following top (Ø 4.8 mm) of Multiunit Abutments without any Ti Bases:
3i Biomet Certain® Low Profile & 3i Osseotite® External Hex
Astra EV® Multibase
Blue Sky Bio® (BSB)
BioHorizons® Internal Hex, BioHorizons® Tapered Pro Conical, & BioHorizons® Conelog
Hahn™
Hiossen® / Osstem
Keystone® Genesis / Prima
Megagen Anyridge® N Type
Neodent GM®
Nobel Active®, Nobel Replace®, & Nobel Brånemark® (NP and RP)
Noris Medical®
DESS® Multiunits
▶ It is also compatible with the top (Ø 4.6 mm) of Straumann SRA without any Ti Bases.
All of our screws are stress tested to 150% of the nominal torque value and can also be used as lab screws.
| REF | DESCRIPTION | HEAD DIAMETER | HEAD BASE ANGLE | OVERALL LENGTH | HEAD LENGTH | DISTANCE FROM HEAD TO THREAD | THERAD LENGTH | THREAD TYPE | RECOMMENDED TORQUE VALUE | SOCKET |
| 19.269 | Screw UG on Multi-Unit® RP | 1.9/2.3 | 0° | 4.1 | 1.4 | 0.35 | 2.35 | M1.4 | 15 Ncm | TORX® Ball (Power Ball type) |
