Cervico Premium Kit (Includes Cervico Guide)

Cervico Premium Kit (Includes Cervico Guide)

$1,650.00 USD
$2,030.00 USD $1,650.00 USD
Sale Sold out

CALL TO INQUIRE 1-888-360-5550

The Cervico Premium Mold

  • Works with both analogic and digital impression protocols

  • Allows for the fabrication of identically shaped anatomical impression posts

  • Standardized process allows the clinician or the assistant to pre-fabricate a stock of shapes and sizes anatomical healing abutments, ready for use prior to surgery.

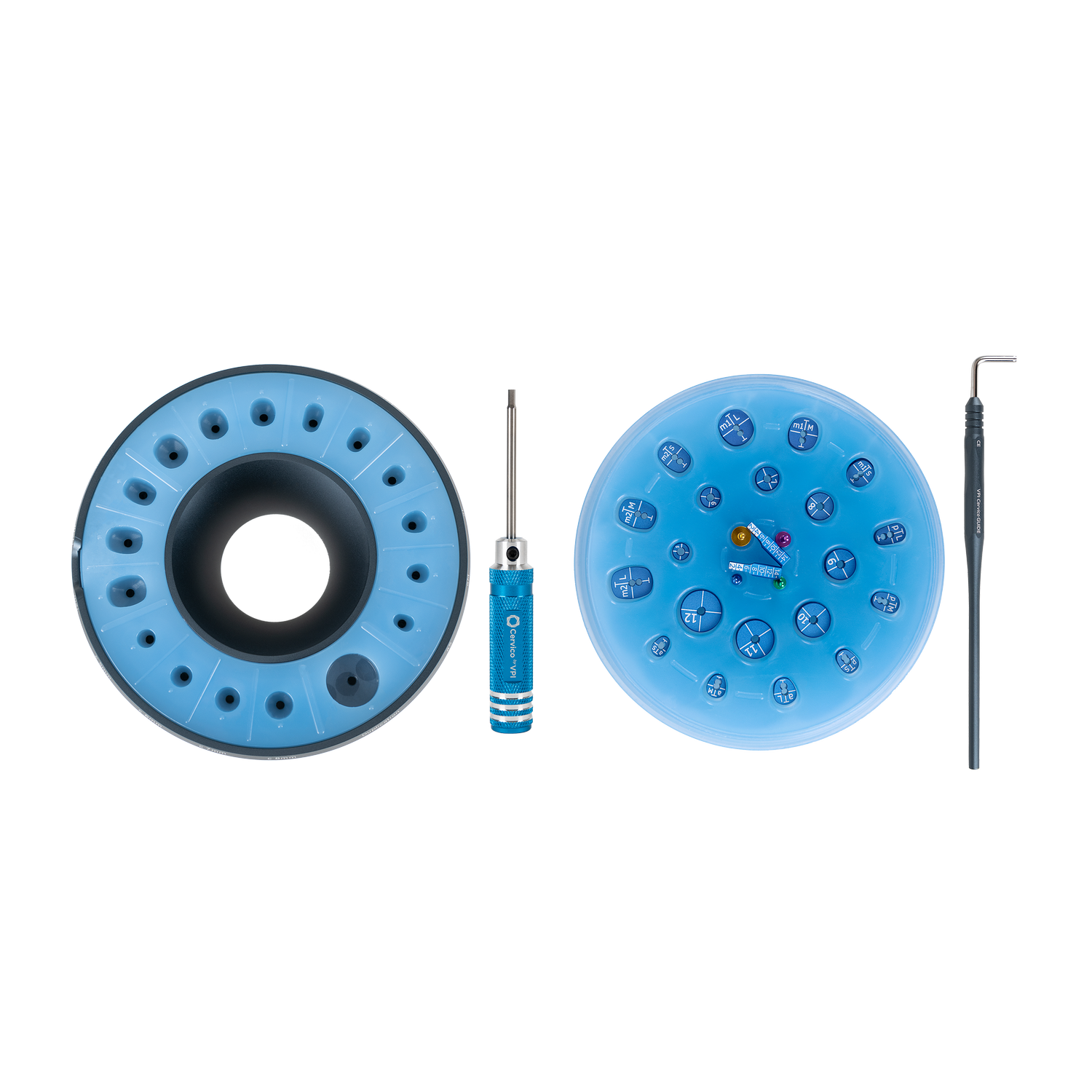

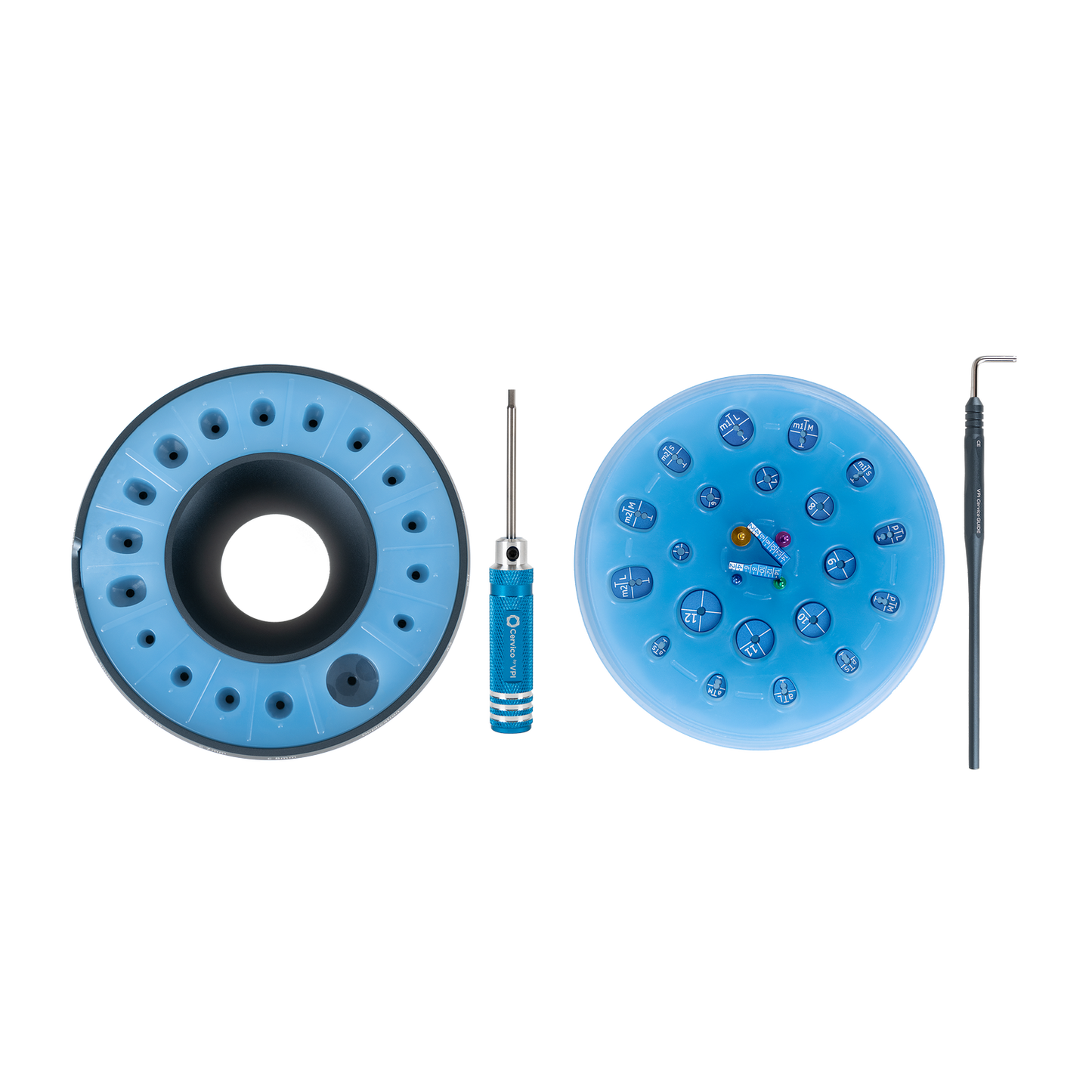

This kit includes:
1x Cervico Premium Mold
1x Cervico Guide

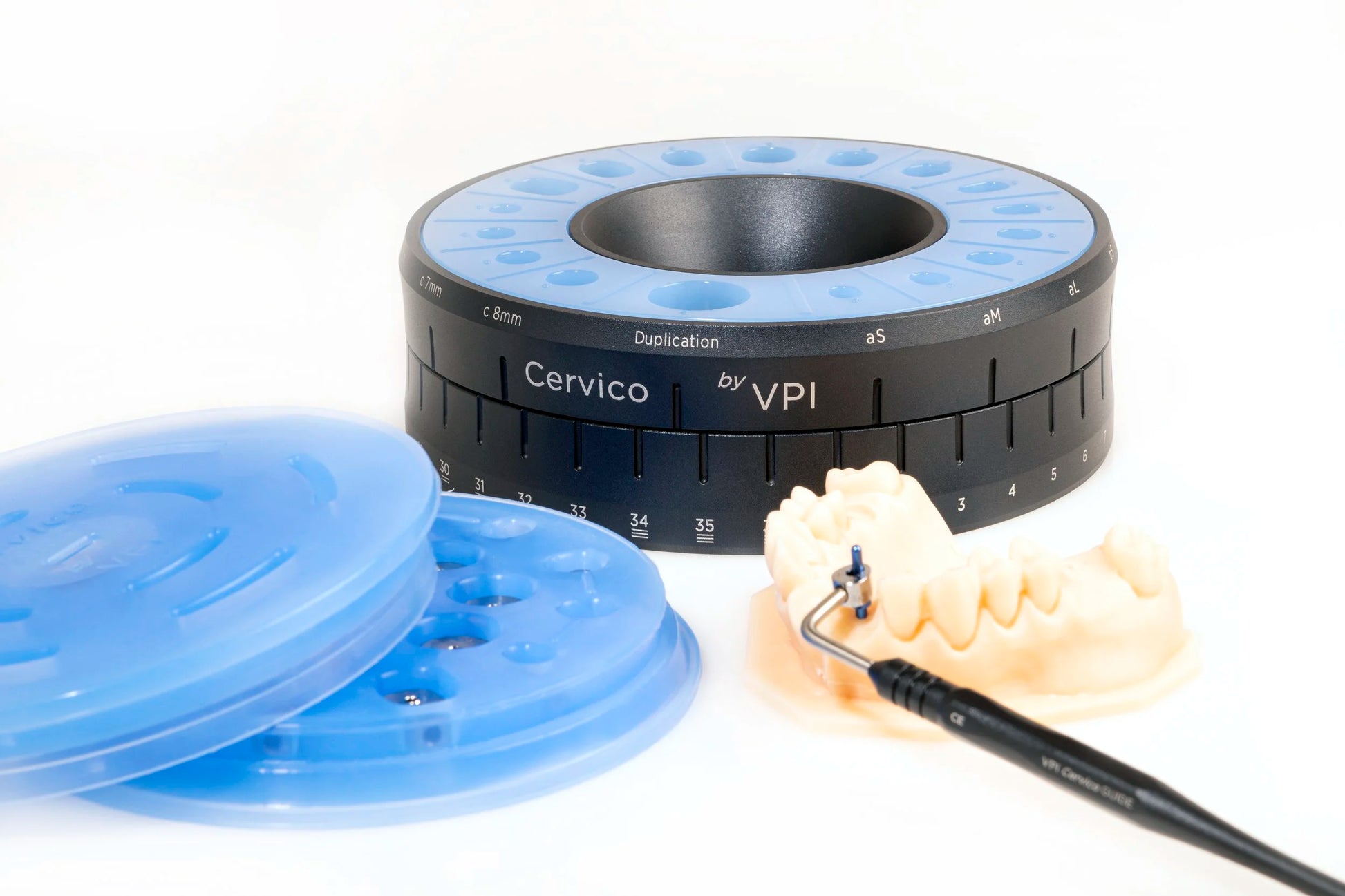

The Cervico Premium Mold allows you to fabricate the ideal custom healing abutment and its duplicate impression post within a matter of few minutes.

The Cervico Guide can direct you in order to place your implant in the ideal position and at the same time select the ideal custom healing abutment for your implant case.

The combined use of the Cervico Guide and Cervico Premium Mold allows you to effectively manage all the steps necessary in order to provide a biologically and restoratively sound treatment that replicates nature in the best manner.



Cervico Premium Mold

Overview

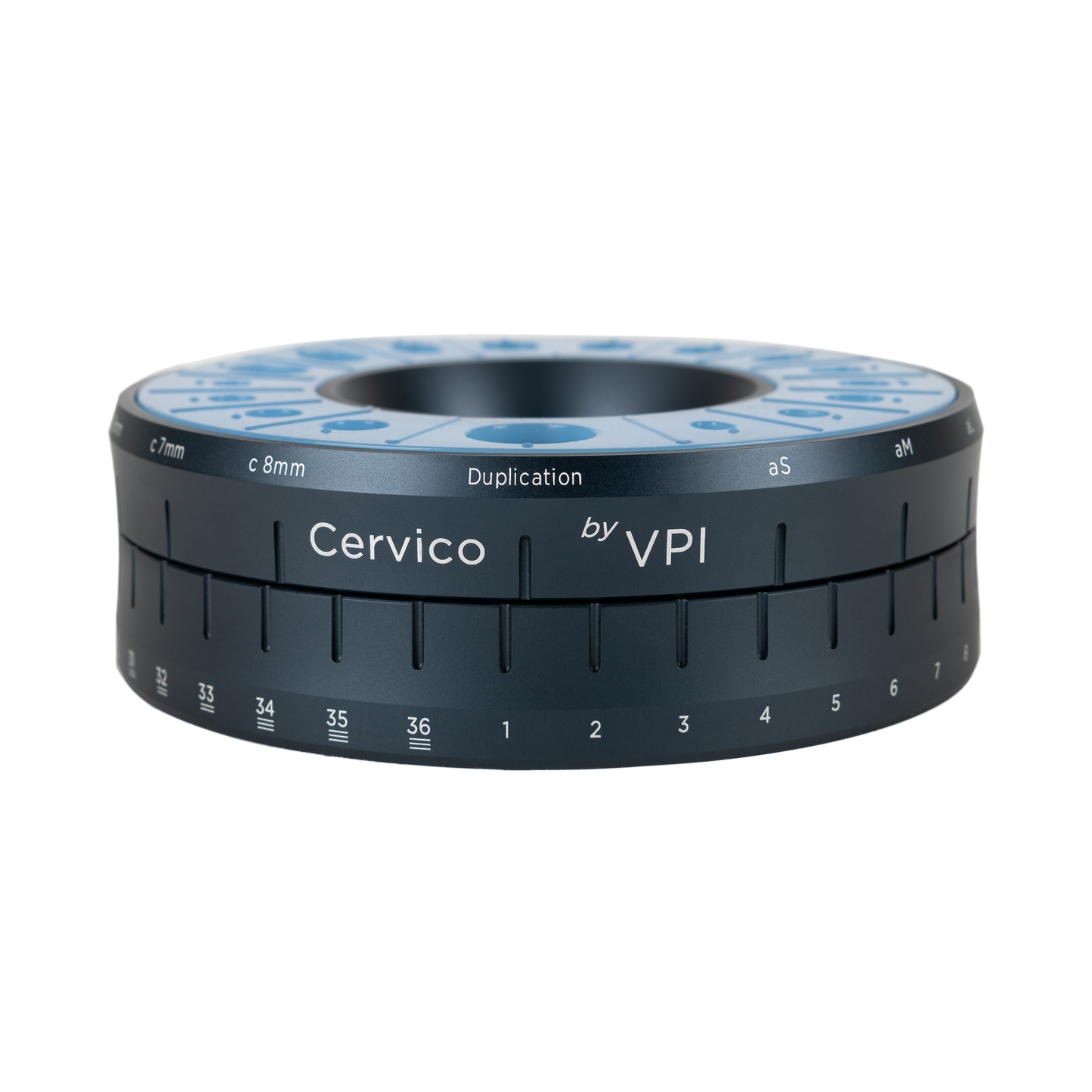

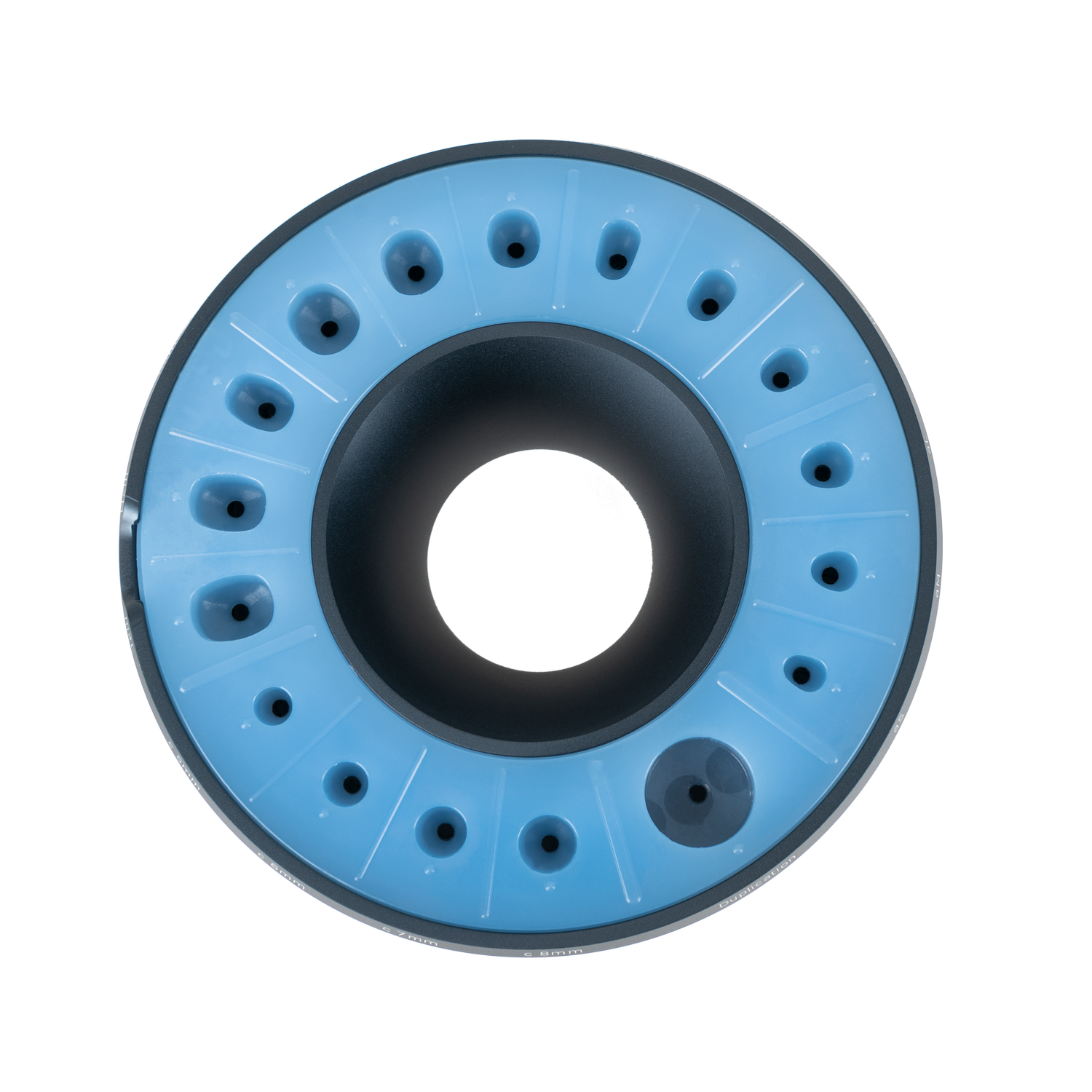

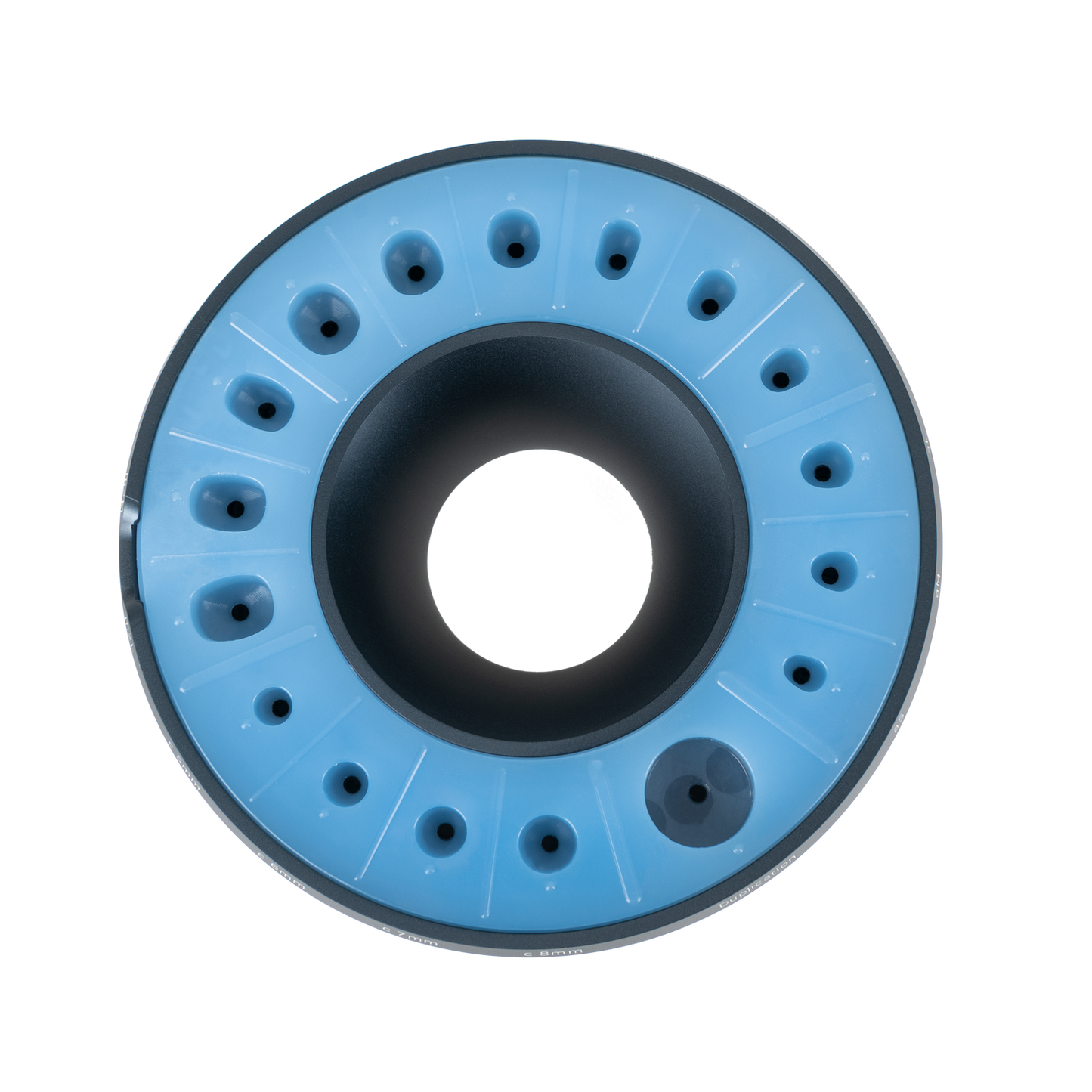

The Cervico Mold is an in-office tool used for the fabrication of the cervico healing abutments and impression posts.

It can also be used for the duplication of a modified healing abutment or temporary prosthesis to a duplicate impression post. It features 17 wells that can be used for all of the above purposes.


What’s included:

• Base screw driver •VPI prosthetic connection inserts*
• Centered Silicone Insert • Mold Base

*A variety of VPI prosthetic connection inserts is available, in order to facilitate multiple implant systems from multiple companies and their respective connection types and sizes.



How it works

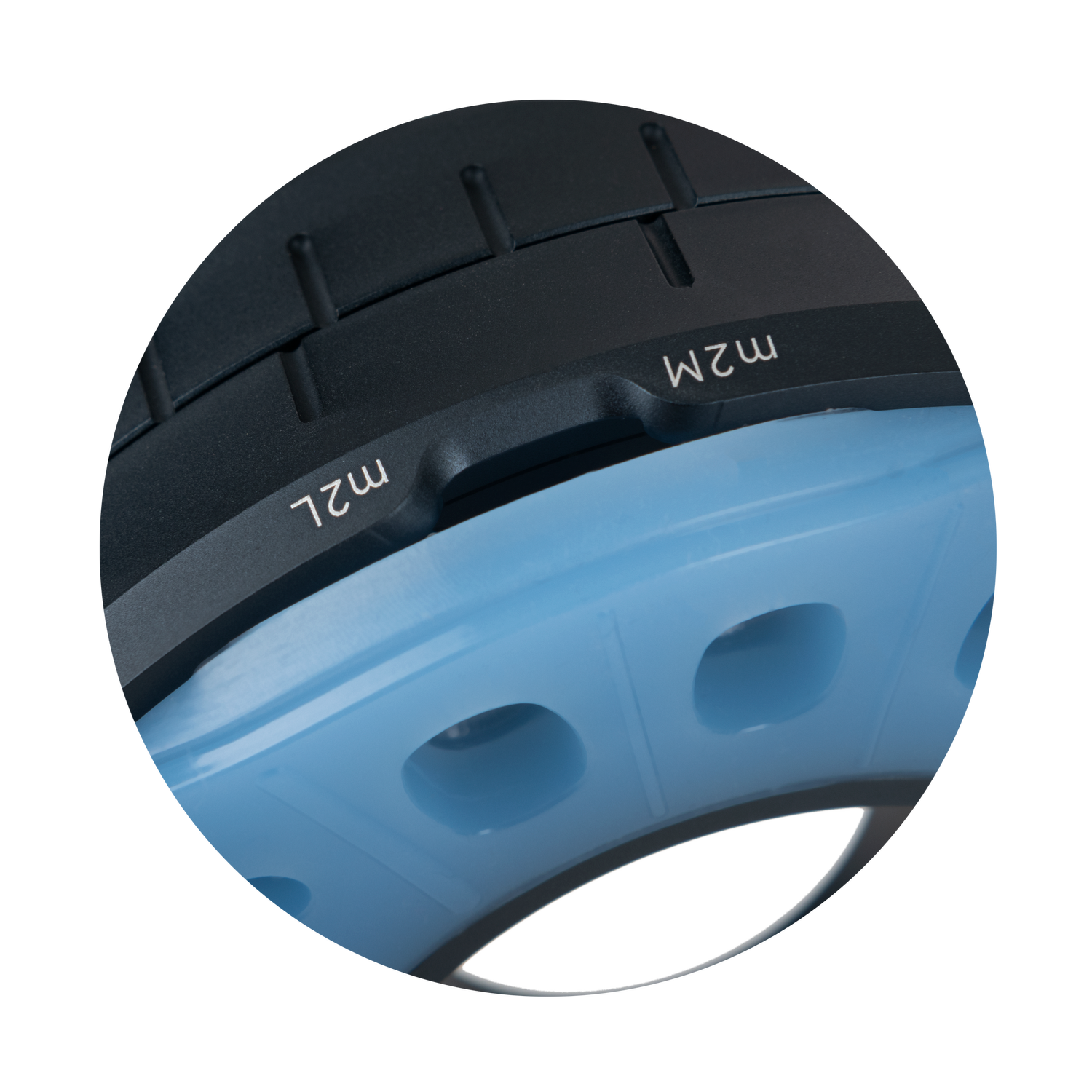

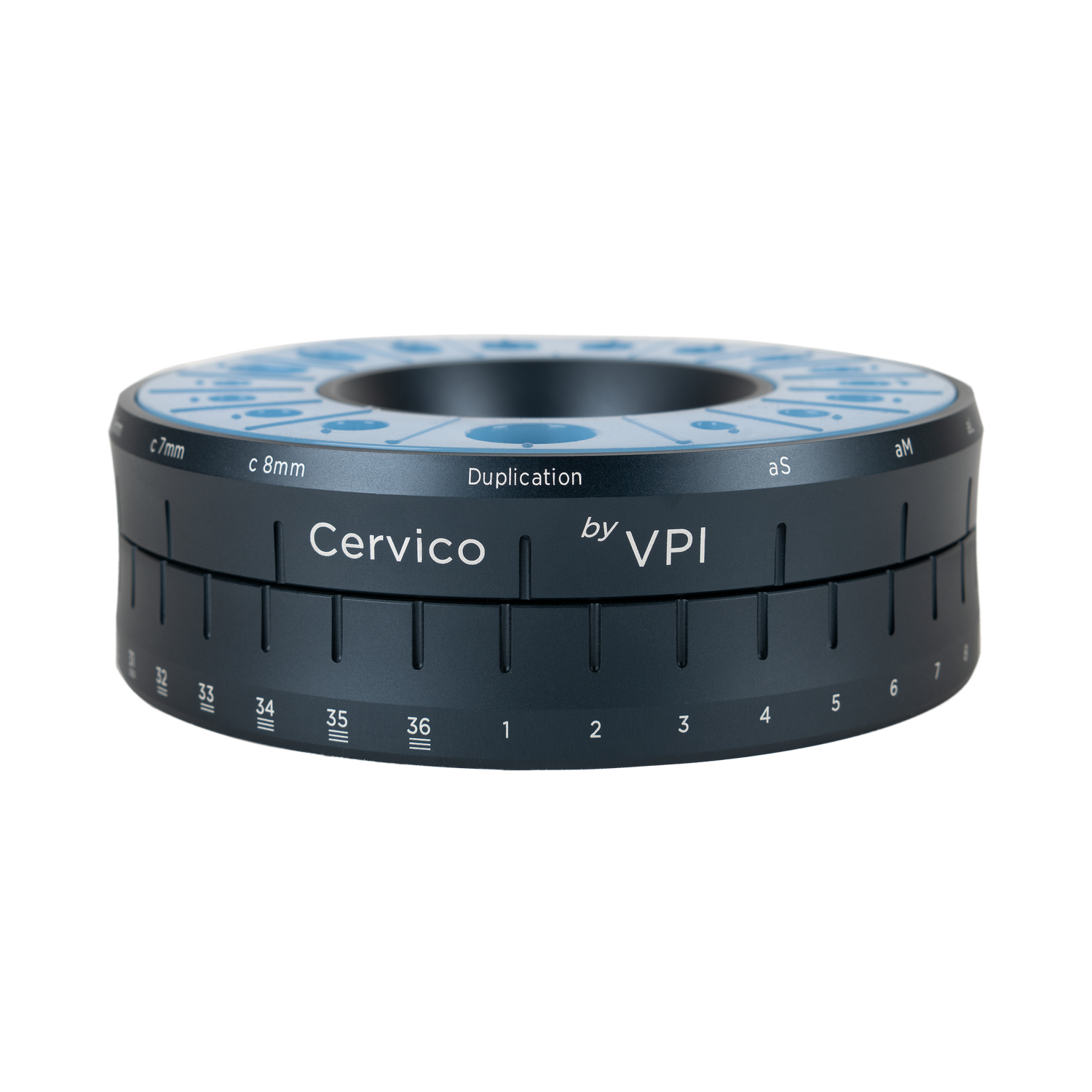

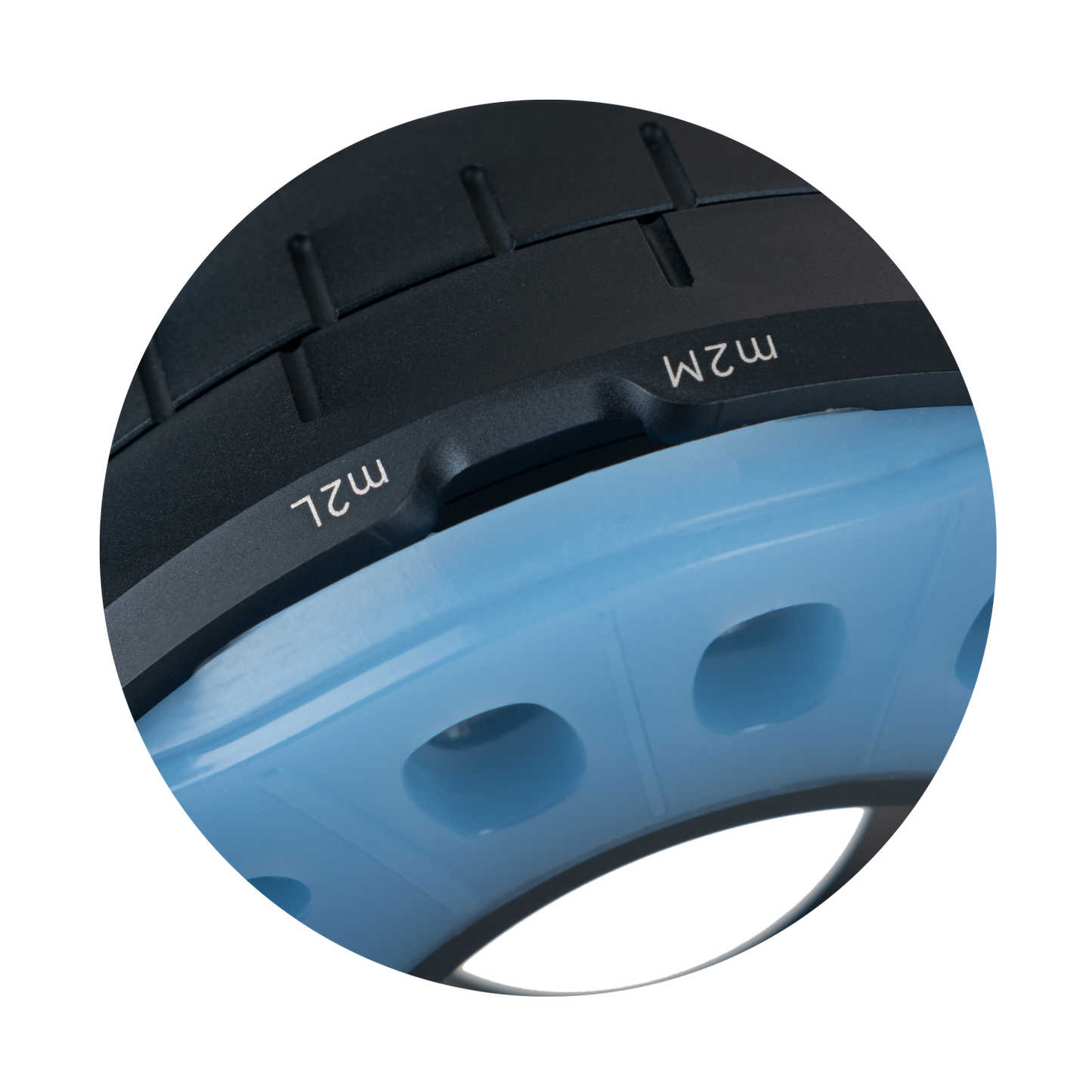

The top ring of the Cervico Mold carries a letter coding that corresponds to the shape and size of the well of the silicone insert.

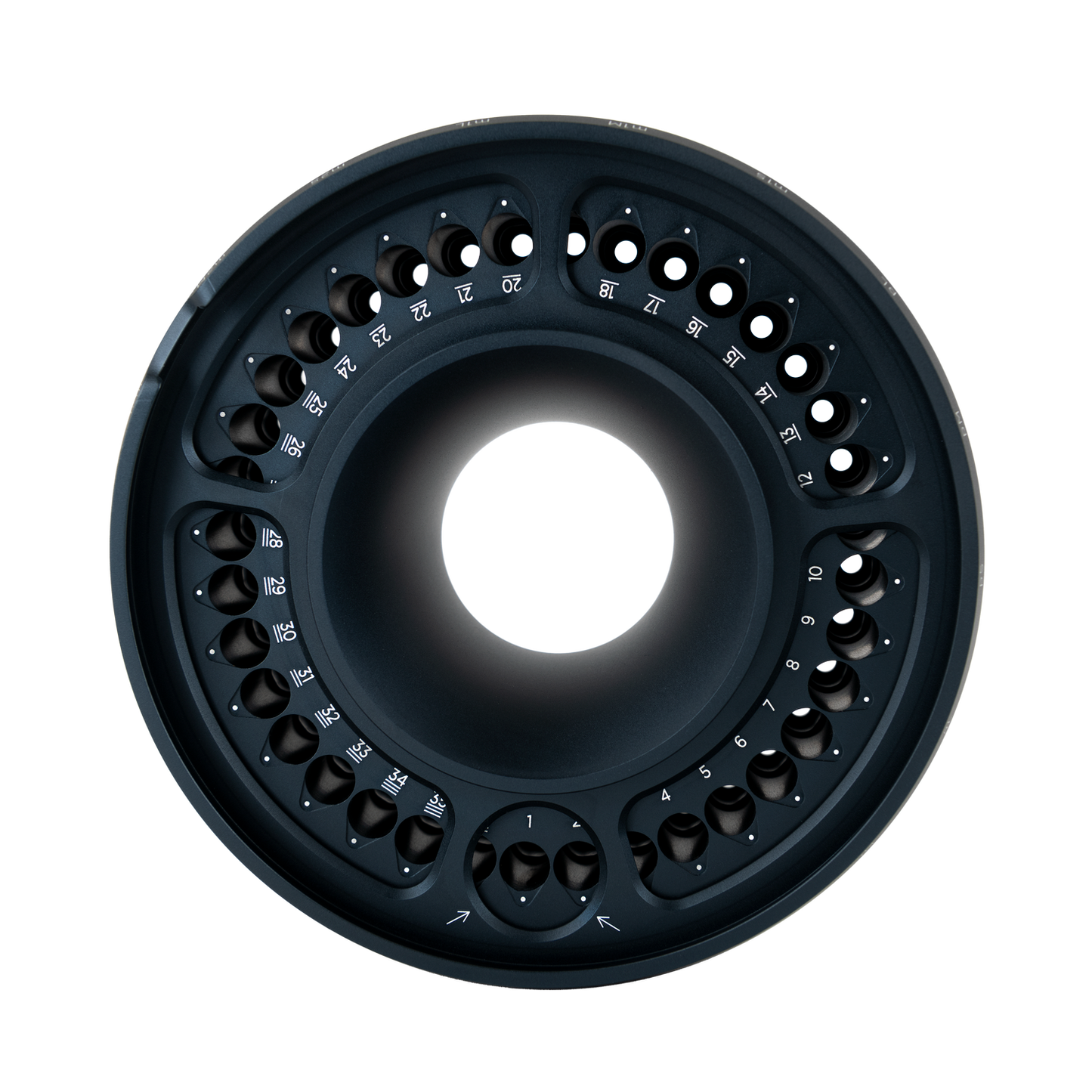

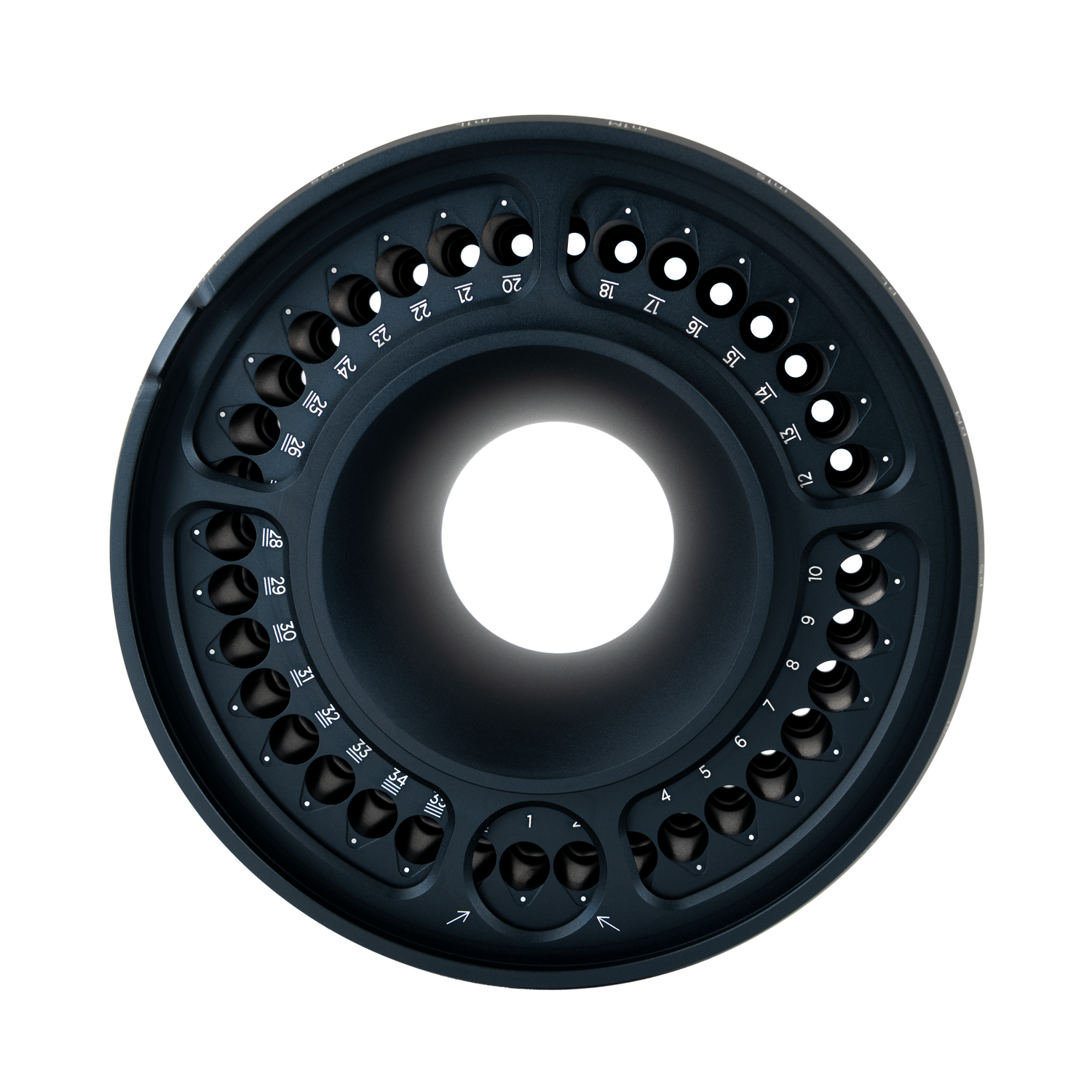

The bottom ring of the base has 36 sockets which accept the VPI Prosthetic connection inserts (VPI inserts). These sockets are divided in four groups that allow the installation of the VPI inserts in four different depths, ranging from 0mm (crestal implant placement) to -3mm (sub-crestal implant placement of -1mm, -2mm and -3mm). All the sockets of the same group have no difference to each other. The reason for providing many sockets of the same height is to allow the potential installation within the Cervico Mold of many different VPI inserts. This will allow the same mold to be functional with many different implant systems, as implants range in connection type and size.

The top ring of the Cervico Mold, along with the silicone insert installed in a stable position within it, can rotate in relation to the bottom ring of the Cervico Mold. This allows the alignment of different wells of the silicone insert with different VPI inserts installed into the bottom ring of the Cervico Mold.

What is a VPI prosthetic connection insert?

A VPI Prosthetic connection insert is a unit with innovative design that replicates the prosthetic connection and platform of a given implant. The innovative external design allows the installation of the VPI insert into the bottom ring of the Cervico Mold in only one functional orientation and a stable position while its internal design allows it in many occasions to be functional with multiple platform sizes of the same prosthetic connection. Each VPI insert is available with a retention screw that allows its safe coupling to the bottom ring of the Cervico Mold. A plethora of different VPI inserts are available in order to fulfil the clinical needs.



Fabrication process of a Cervico healing abutment.



Silicone Inserts.

The Cervico Mold is available with the centered silicone insert.
An off-centered silicone insert is also available for purchase as an accessory. This silicone insert allows the fabrication of Cervico healing abutments and impression posts that have a part of their custom body off centered in relation to the axis of the temporary abutment or impression post. This is particularly useful for lingually placed implants in immediate extraction and implantation Protocols.




Overview.

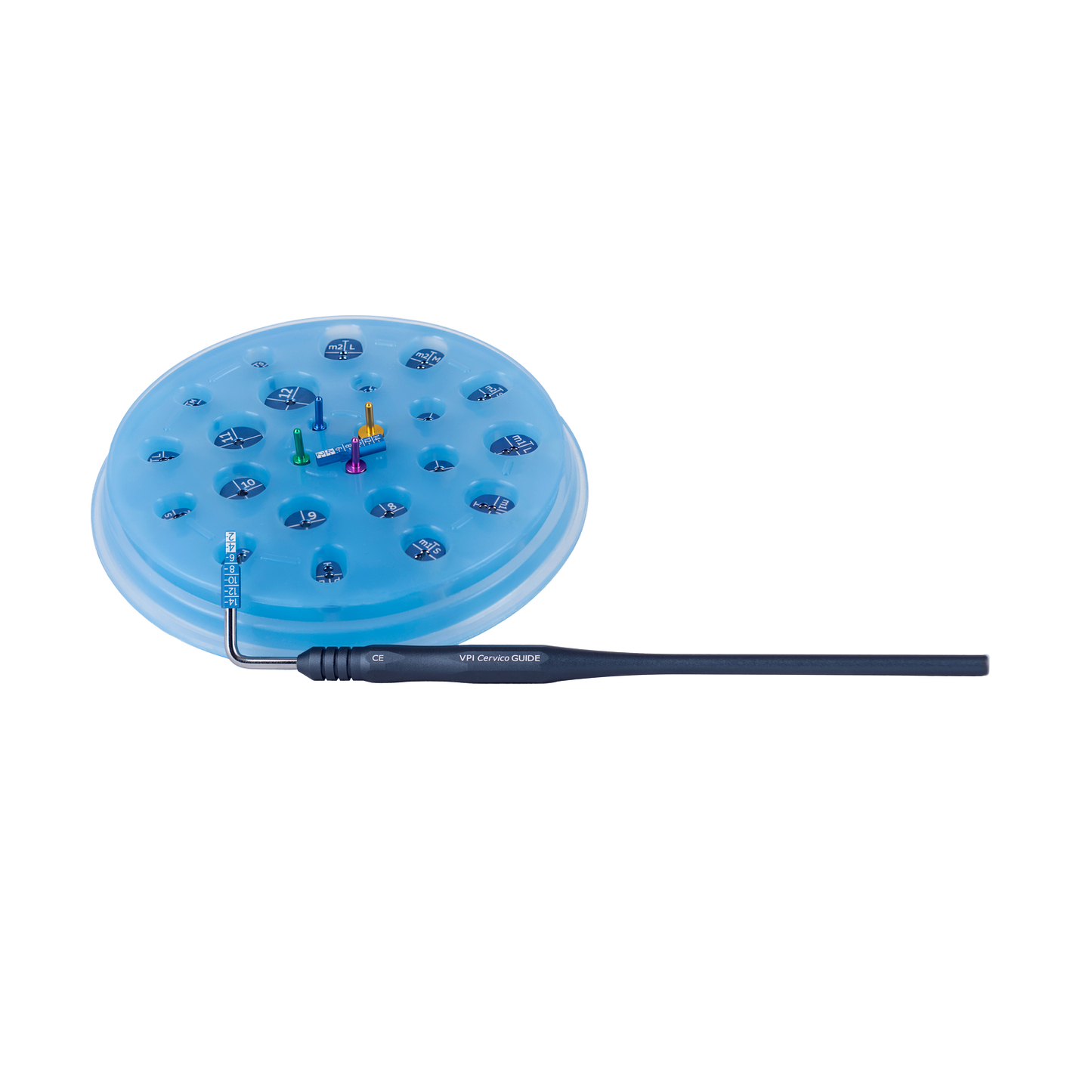

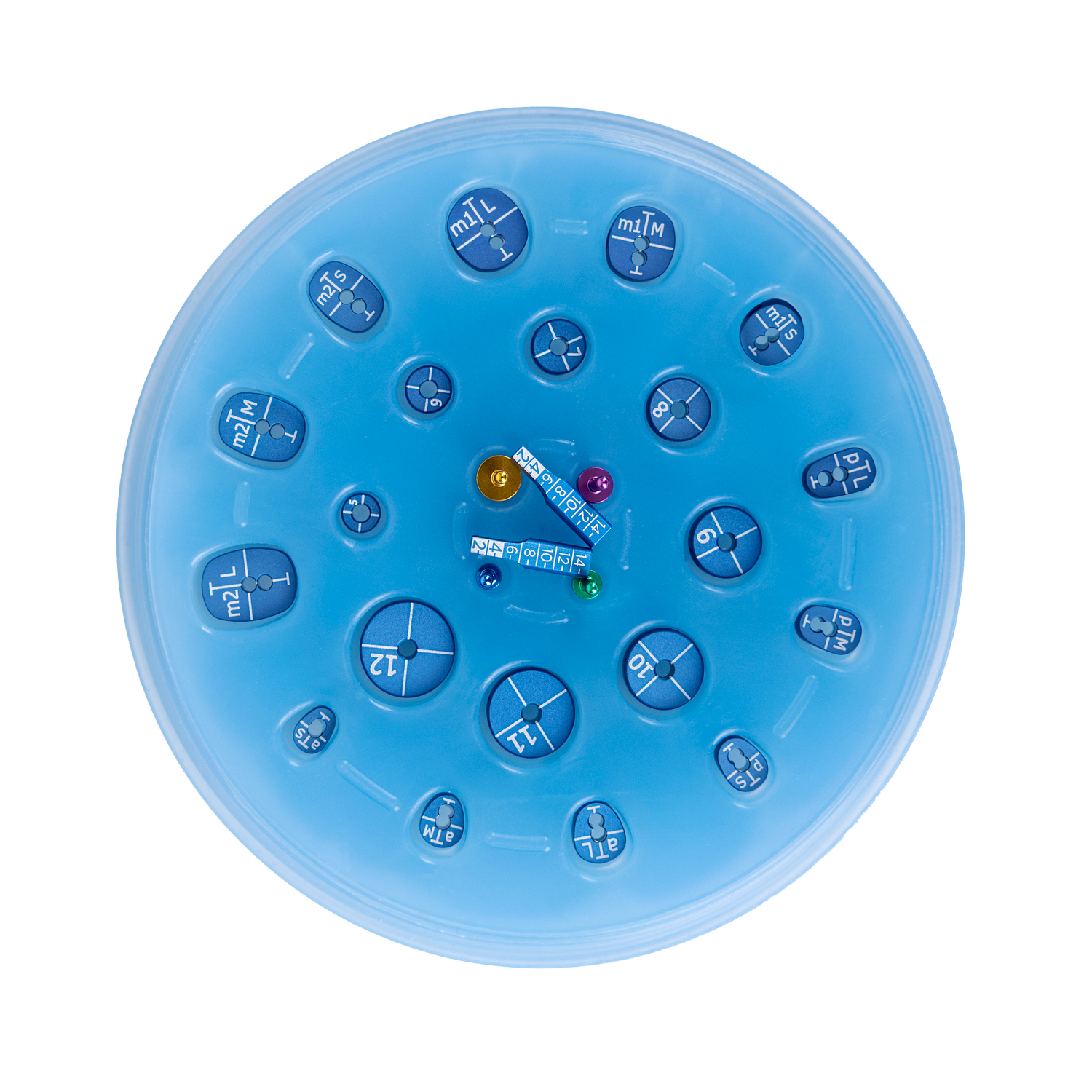

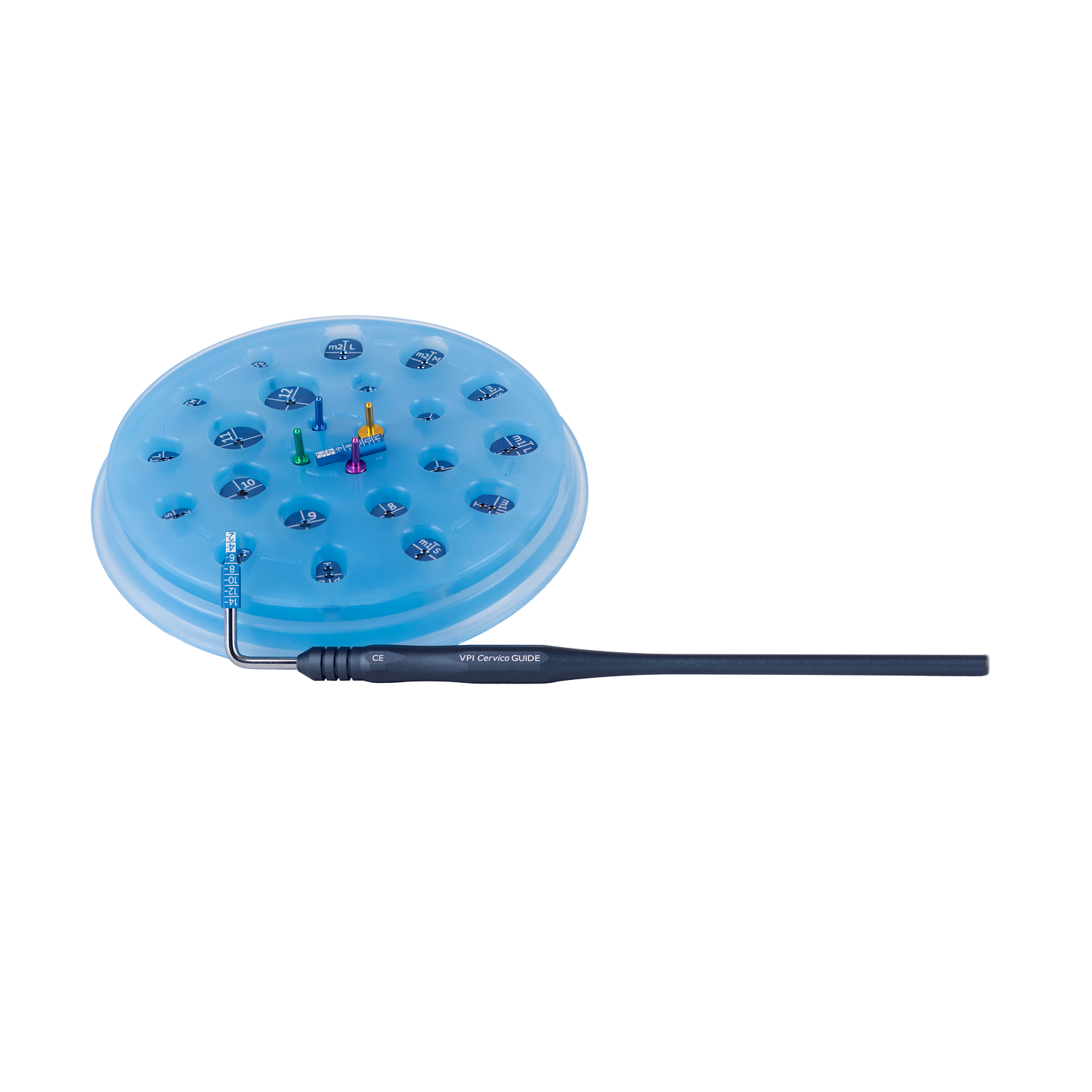

The Cervico Guide is a re-usable, autoclavable, multi-use tool that can be used for an accurate, easy and fast intra-oral identification of the proper size and shape cervico healing abutment that is needed for the patient.


This tool can additionally be used for the following:

– Diagnostic guide: Evaluation of the mesio-distal dimensions of the edentulous space.
– Surgical guide: Prosthetically driven osteotomy preparation.


What’s included:
• Guide Silicon Tray • Magnetic Retention Handle
• 4 Guide Pins • 20 Stainless Steel Tabs • 2 Depth Gauges

Cervico Guide

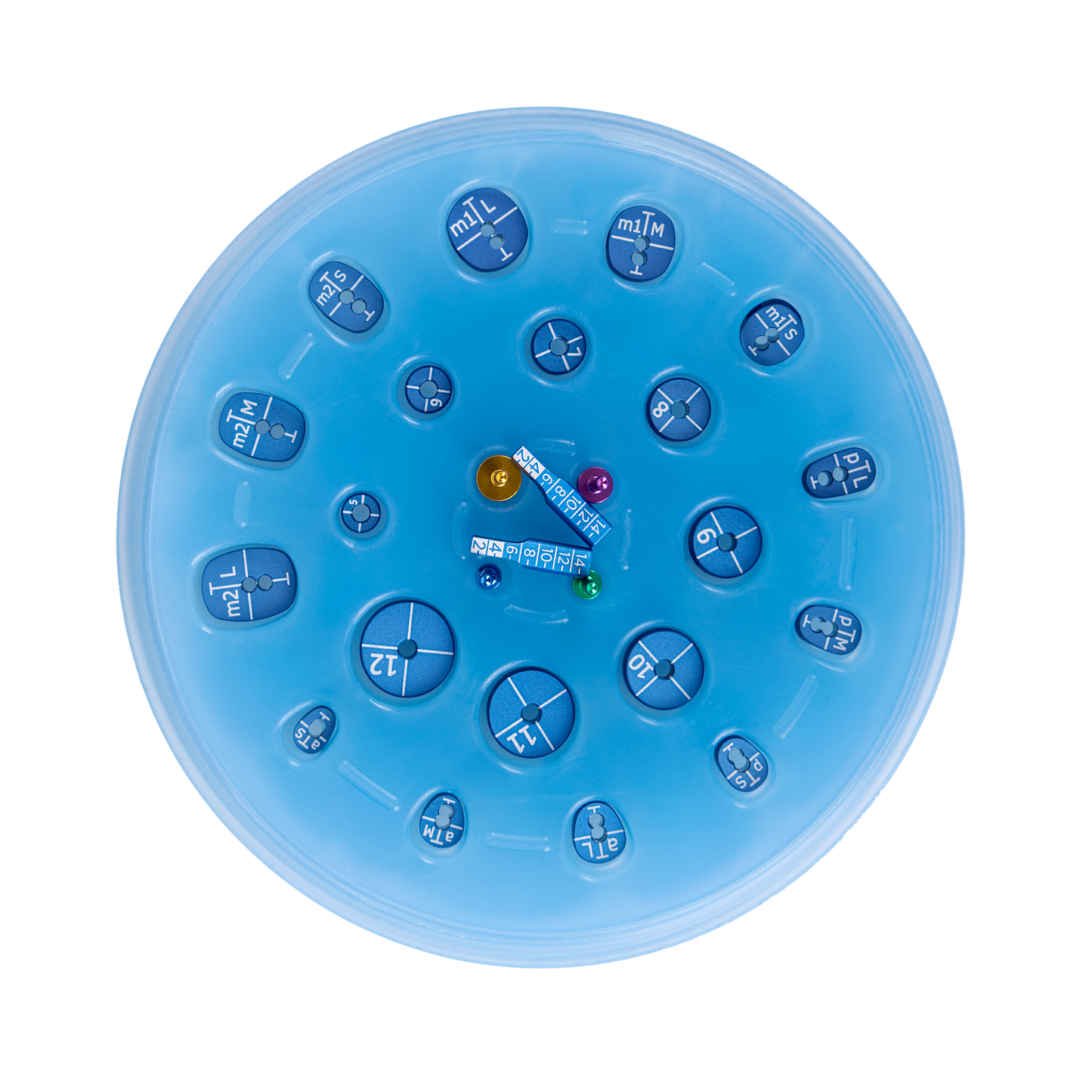

Cervico Guide Stainless steel tabs coding and use.

Outside Row

Anatomically shaped tabs (4 categories of teeth x 3 sizes for each one =12 in total) that are utilized in order to choose the proper shape and size anatomical healing abutment in need for any particular clinical case. These tabs have two bores, a centered and an off-centered one. The bores allow for the tabs to be installed on top of the Cervico Guide Pins (see below) in two different configurations that in turn correspond to the two different types of custom healing abutments that can be fabricated by the Cervico Mold.

All types of tabs (anteriors, premolars, square shaped molars and elongated square shape molars) are available in three different sizes (small, medium, large)

All types of tabs (anteriors, premolars, square shaped molars and elongated square shape molars) are available in three different sizes (small, medium, large)

Inside Row

Cylindrical shaped tabs (8) with a coding number that ranges from from 5 to 12. Their code represents their actual diameter in millimeters. The bore in located in the middle of these tabs allow for perfectly centered implant placement, as long as the engraved lines are aligned with the occlusal lines of the adjacent teeth.


Cervico Guide Pins


The Cervico Implant Guide Pins can be used for evaluation of the correct position and angulation of the implant osteotomy in relation to the desired cervical profile during implant osteotomy preparation. The top half of the pin is the same for all 4 sizes in order to allow the Cervico Guide tabs to be installed on top of them, while the bottom half changes in diameter to facilitate different stages of the osteotomy. The pins also have a ring that allows you to visualize the platform of an implant, depending on the size as following:

Ring diameter of the Cervico Guide Pins

• Ciel: 3.0mm • Green: 3.5mm• Purple: 4.5mm• Gold: 5.5mm

The four different diameters of the bottom half of the Cervico Guide pins which is introduced into the implant osteotomy and correspond to different drill sizes.


How it works

By simply evaluating the prosthetic space with the tab connected to the handle the clinician can identify, and therefore correlate, which size and shape cervico abutment needs to be prepared. The cervical tab of the guide with coding(pS) corresponds to the well of the mold with (pS) coding, etc.

This tool can also be used as a surgical guide for the proper positioning of the implant osteotomy.

Orientation T line of the cervical tabs, serve as reference for correct orientation of the prosthetic connection of the implant in space. This will allow proper orientation of the cervico abutment once coupled with the implant.

Implant companies utilise orientation markers on their implant carriers to allow proper control of implant prosthetic connection orientation in space. Orient these markers towards the T-line.

For example:

External Hex or Internal Hex or Octagon or Square Connections: Flat seat of connection (or implant carrier) parallel to the T-line

Trilobe Connections: Vertex  of connection pointing towards the T-Line

Grove/Locks Connections: Orientation markers of implant carrier pointing towards the T-line.
