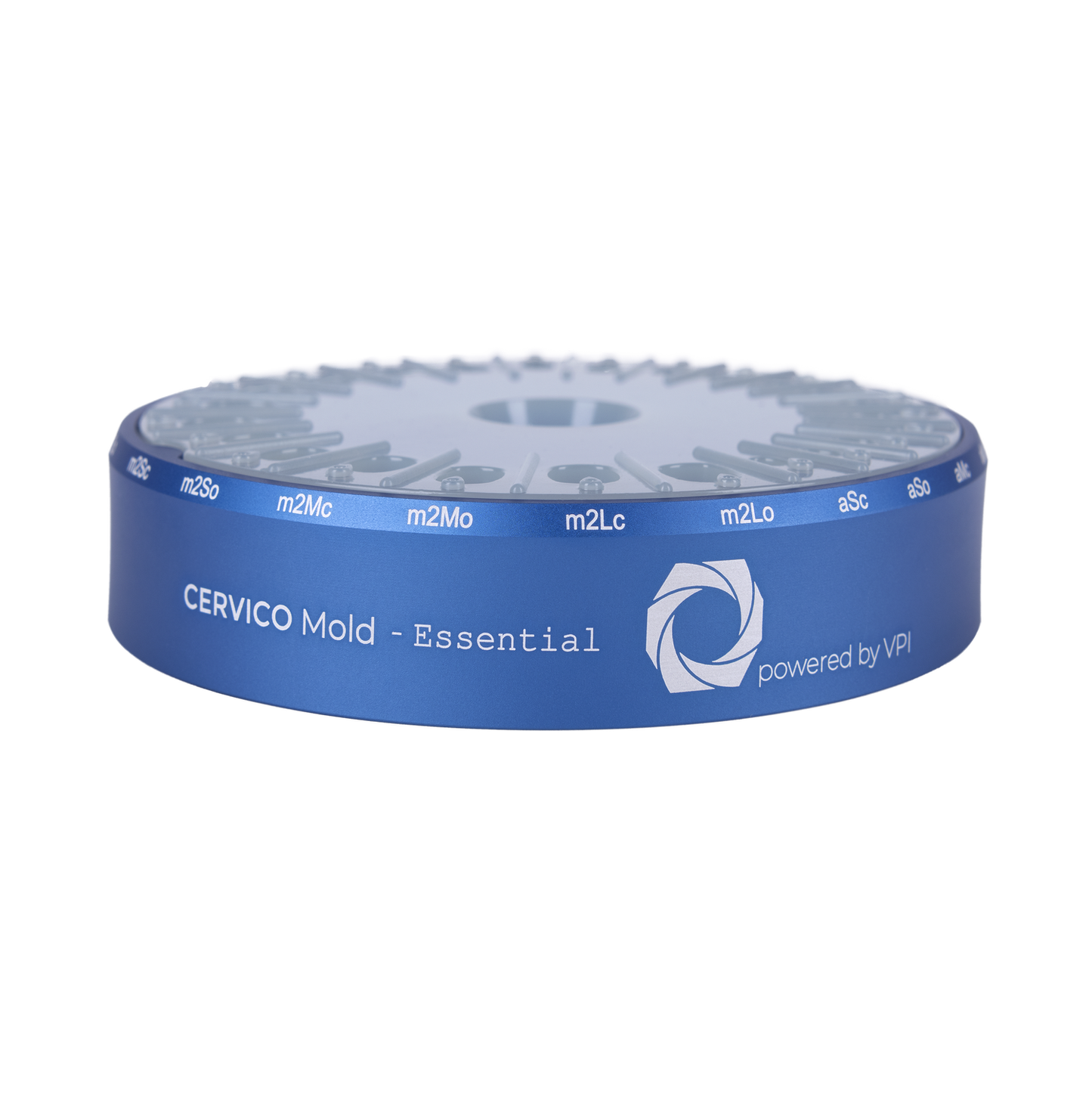

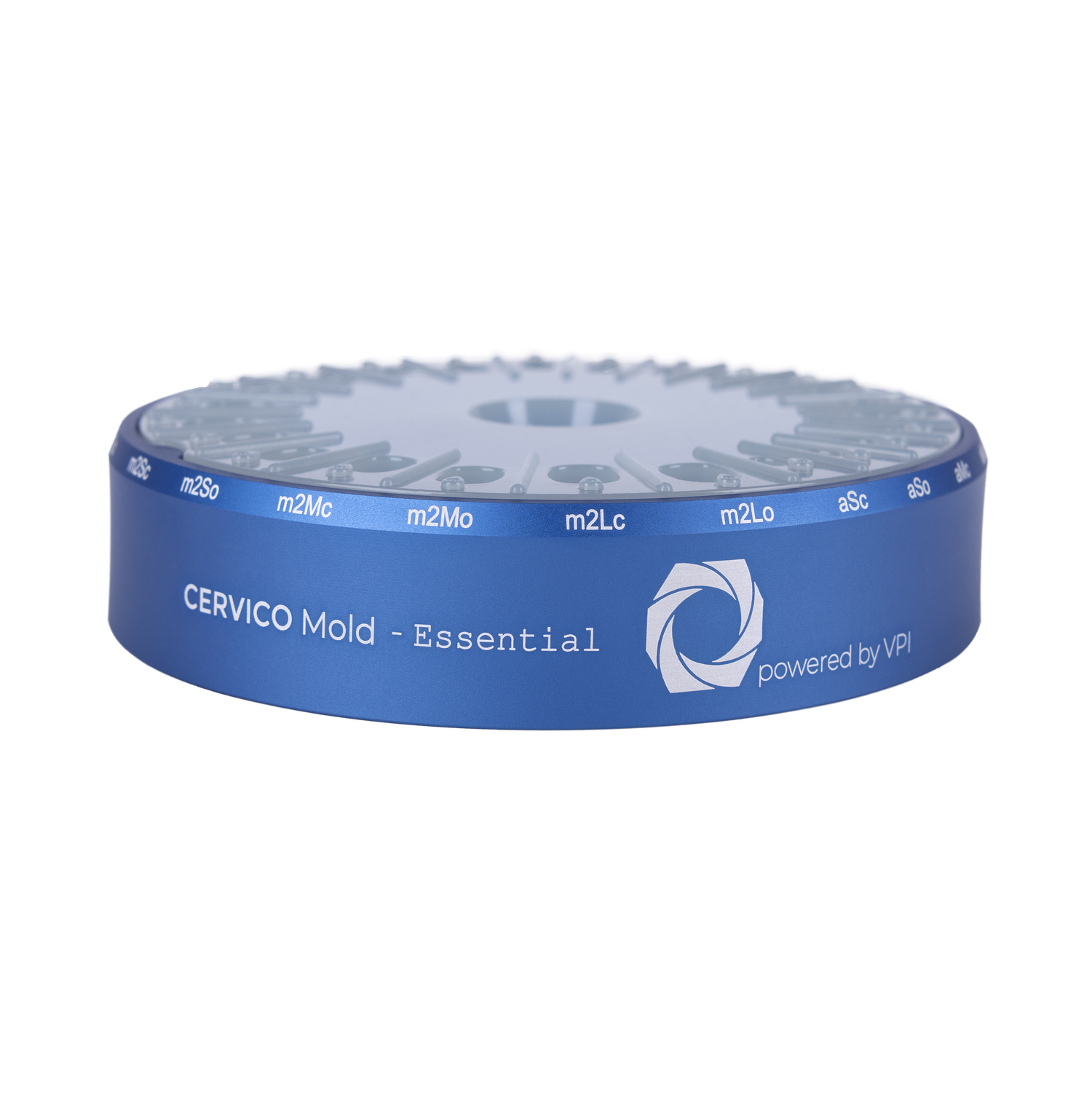

Cervico Essential Mold

Cervico Essential Mold

$960.00 USD
$999.00 USD $960.00 USD
Sale Sold out

CALL TO INQUIRE 1-888-360-5550

The Cervico Essential Mold

  • The Essential Mold is best suited for clinicians that use an intra-oral scanner for their impressions.

  • Protocol requires the fabrication of the anatomical healing abutment at time of surgery.



The Essential Cervico Mold is a simplified version of the Cervico Premium Mold that works with the stock implant analogs available from the different implant companies.

As per the premium mold you can fabricate Cervico healing abutments and impression posts by utilising one or two pieces prosthetic components, made out of titanium, or peek, or other suitable material as they come available by the implant companies.

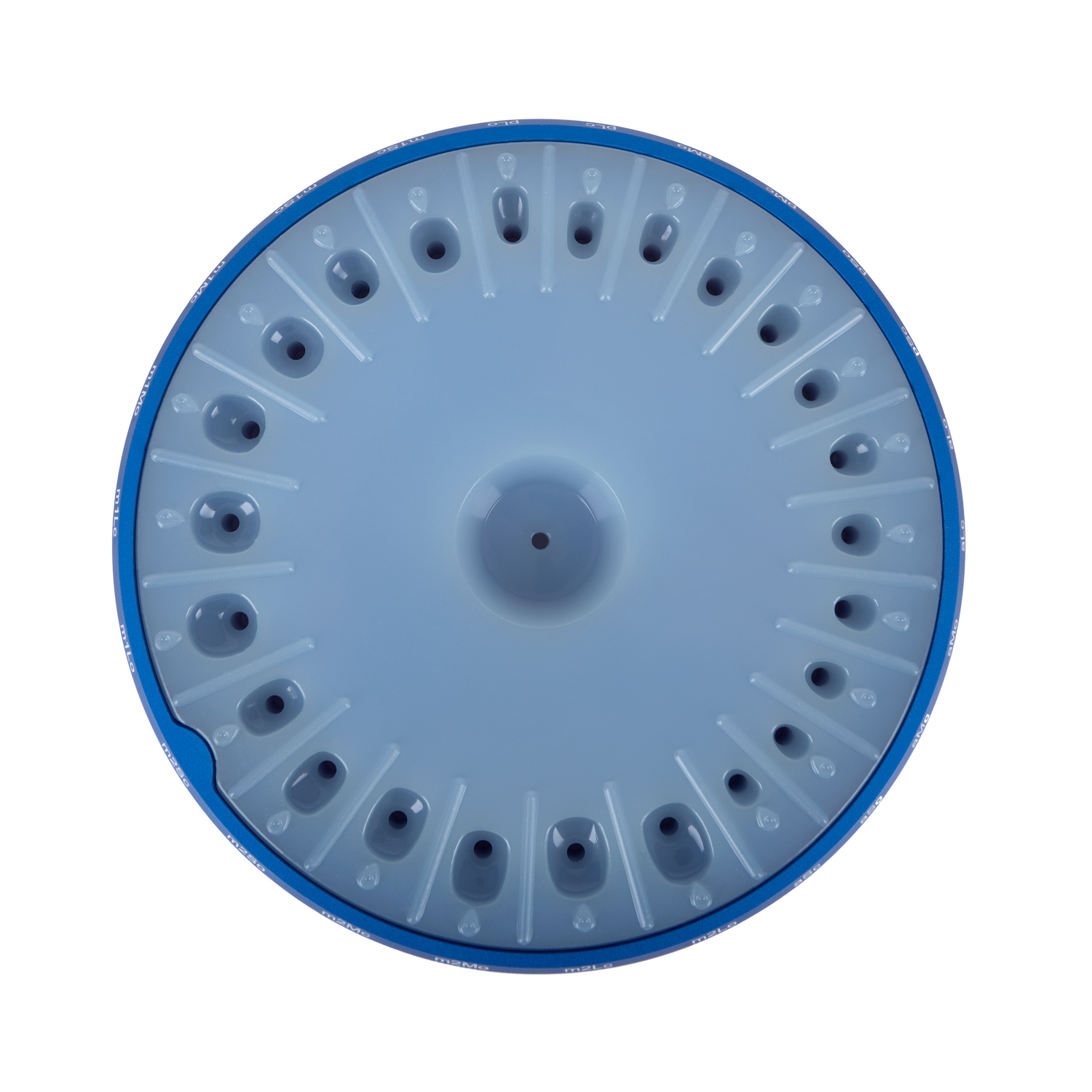

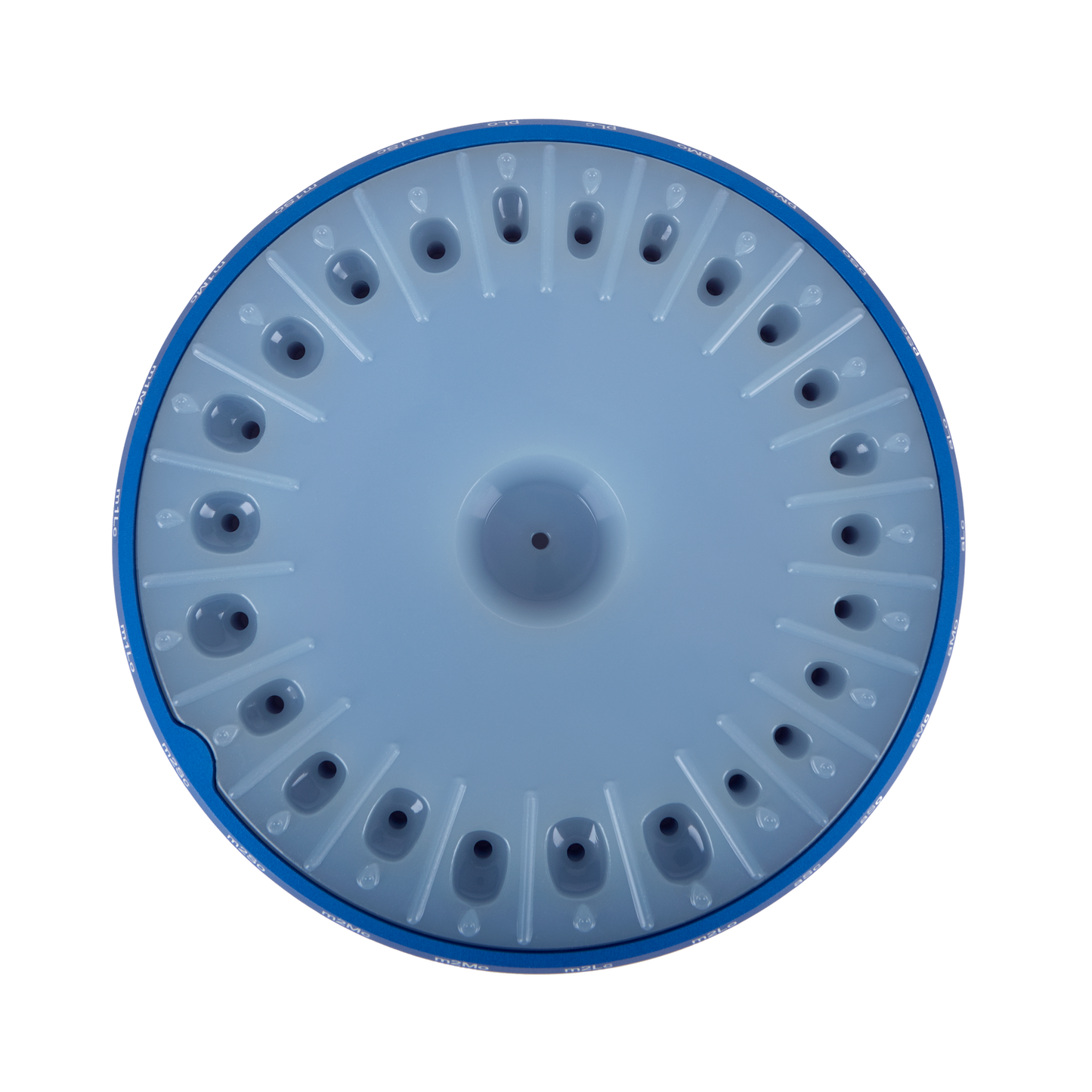

The Essential Mold incorporates wells with shapes that replicate the shape of the root trunk of different groups of teeth; a (anterior), p (premolars), m1 (lower molars), m2 (upper molars). Each shape is available in three sizes S (small), M (medium), L (large) and two options of symmetry: Centered (c) and off-centered (o).

E.g. m1Lc: Lower molar, Large size, centered m1Lo: Lower molar, Large size, off-centered

Each well presents on its frontal side a “tear” like extrusion. This extrusion functions as a reference mark for the buccal surface of the implant site.



Cervico Essential Mold

Overview

The Essential Cervico Mold is a simplified version of the Cervico Premium Mold that works with the stock implant analogs available from the different implant companies.

As per the Cervico Premium Mold you can fabricate Cervico healing abutments and impression posts by utilizing one or two pieces prosthetic components, made out of titanium, or peek, or other suitable material as they come available by the implant companies.

The Essential Mold incorporates wells with shapes that replicate the shape of the root trunk of different groups of teeth; a (anterior), p (premolars), m1 (lower molars), m2 (upper molars). Each shape is available in three sizes S (small), M (medium), L (large) and two options of symmetry: Centered (c) and off-centered (o).

E.g. m1Lc: Lower molar, Large size, centered m1Lo: Lower molar, Large size, off-centered

Each well presents on its frontal side a “tear” like extrusion. This extrusion functions as a reference mark for the buccal surface of the implant site.




How it works

Connect the temporary abutment to the implant analog and insert into the desired well the system lab analog/temporary abutment. Once the top surface of the abutment is level to the bottom surface of the well, you have reached the final vertical position.

Rotate the whole system (lab analog/temporary abutment) till the mark present on the temporary abutment, that corresponds to the proper position of the prosthetic connection, becomes aligned with the “tear” protrusion present on the front surface of the silicone well.

Fill the open space of the well with the composite resin material. For large shapes it is suggested to do this process in two increments in order to ensure proper light curing of the material. The duration of light curing is depended on the recommendations of the composite resin manufacturer and the light source specifications. In general a safe approach suggests a total time of 60 sec light curing inside the well and an additional light curing of 60 seconds after the custom healing abutment is fabricated and removed from the Mold.

Proceed with polishing of the composite resin surface of the cervico healing abutment with polishing mops and polishing paste in order to obtain an even and smooth surface. Disconnect the lab analog from the Cervico healing abutment and proceed with proper disinfection of the latter, prior to its clinical use. Disinfection methods follow the same standards as per disinfection of implant abutments and implant prostheses prior to their installation in the mouth.
