ASIGA

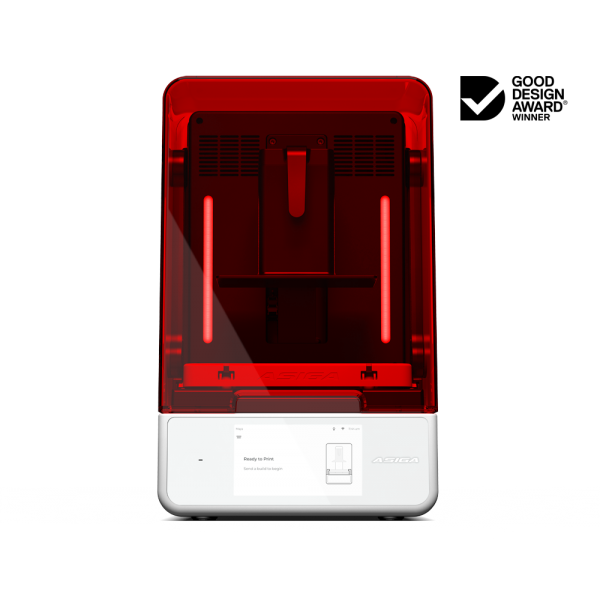

ASIGA Ultra

ASIGA Ultra

$14,800.00 USD
$14,990.00 USD $14,800.00 USD
Sale Sold out

CALL TO INQUIRE 1-888-360-5550

Active Layer Monitoring
Asiga’s pioneering Smart Positioning System (SPS™) achieves precise layer thickness control of each and every layer, ensuring optimal print accuracy and speed.

4K Imaging Resolution
The latest high resolution imaging chipset delivers extraordinary resolution over a large build envelope.

Auto-Calibrating UV LED
Combining the latest generation of high-power ultraviolet solid-state light sources with an integrated radiometer ensures years of consistent printing performance.
385nm LED as standard.

DLP Micromirror Technology
Achieve the highest standard of reliability with the broadest wavelength capability of any imaging technology.



Technical specifications

Product specification Ultra (32) Ultra (50)
Build Volume X, Y, Z 119 x 67 x 130mm
4.68 × 2.63 × 5.11 inches		 189 x 106 x 130mm
7.44 × 4.17 × 5.11 inches
Pixel Size 32µm 50µm
Technology DLP DLP
Auto-calibrating UV LED 385nm (365nm and 405nm available on request) 385nm (365nm and 405nm available on request)
Material Compatibility Use any one of over 500 qualified resins from the world's leading material manufacturers, or create your own.
Software Asiga Composer software. Lifetime updates included
File Inputs STL, SLC, PLY, STM (Asiga Stomp file format)
Network Compatibility Wifi, Wireless Direct, Ethernet
Power Requirements 100-240VAC / 500Watts
System Sizing 353 x 441 x 555mm | Weight 32.5Kg .. 13.9 x x 17.3 x 21.8 inches | Weight 71.5 Lbs
Packed Sizing 485 × 615 × 799mm | Weight 44 Kg .. 19 × 24.21 × 31.45 inches | Weight 97 Lbs
Warranty 12 months manufacturer's warranty
Technical Support Unlimited lifetime technical support included
Bundle Includes 3D printer, Composer software, 1kg Asiga material, 2L build tray, Asiga Flash post-curing chamber, calibration toolkit
