ASIGA

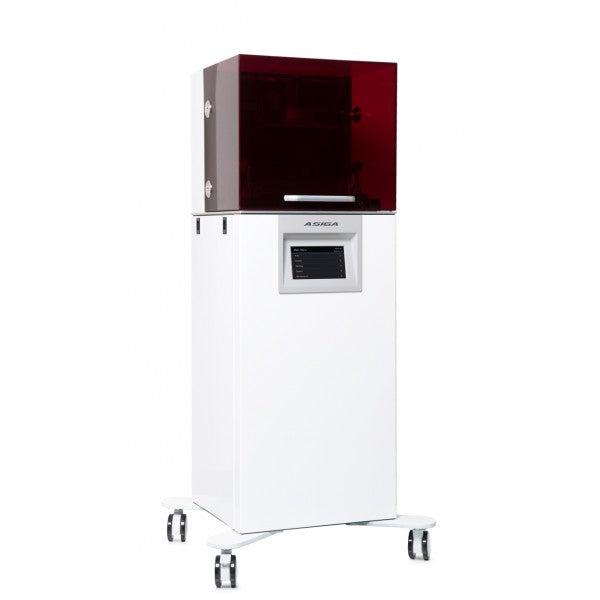

ASIGA PRO 4K

ASIGA PRO 4K

$23,500.00 USD
$24,990.00 USD $23,500.00 USD
Sale Sold out

CALL TO INQUIRE 1-888-360-5550

Asiga SPS ™ technology
Providing platform positioning feedback ensuring your build platform is where it needs to be for every layer.
Z height precision guaranteed.

Automatic LED power adjustment
Our internal radiometer provides real-time feedback and automatic cure time adjustment based on actual LED power.
Precise layer curing for every layer.

Industrial grade high-power LED’s
The PRO 4K is available with either 365nm, 385nm or 405nm Industrial-grade LEDs. 385nm UV LED recommended for most applications for precise layer curing and ability to process water-clear materials.


Technical specifications

Product specification PRO 4K45 PRO 4K65 PRO 4K80
Build Volume X, Y, Z 122 × 69 × 200mm
4.8 × 2.71 × 7.87 inches		 176 × 99 × 200mm
6.94 × 3.9 × 7.87 inches		 217 × 122 × 200mm
8.54 × 4.8 × 7.87 inches
Pixel Size - 4K mode 32µm 46µm 56µm
Pixel Size - Native mode 45µm 65µm 80µm
Technology DLP DLP DLP
LED Wavelength 385nm or 405nm (high power LEDs) 385nm or 405nm (high power LEDs) 385nm or 405nm (high power LEDs)
Material Compatibility Asiga materials, 100% Open Material System — use any suitable third party material
Software Asiga Composer software. Lifetime updates included
File Inputs STL, SLC, PLY, STM (Asiga Stomp file format)
Network Compatibility Wifi, Wireless Direct, Ethernet
Power Requirements 90-264VAC, 50/60Hz, 600Watts, (100V - 6Amp Max. 240V - 2.5Amp)
System Sizing 465 × 540 × 1345mm / 140 kg   18.3 × 21.3 × 53.0 inches / 309 lb
Packed Sizing 900 × 700 × 1540mm / 205 kg   35.4 × 27.6 × 60.6 inches / 452 lb
Warranty 12 months manufacturer's warranty
Technical Support Unlimited lifetime technical support included
Bundle Includes 3D printer, Composer software, 1kg Asiga material, 2L build tray, Asiga Flash post-curing chamber, calibration toolkit
View full details
