ASIGA

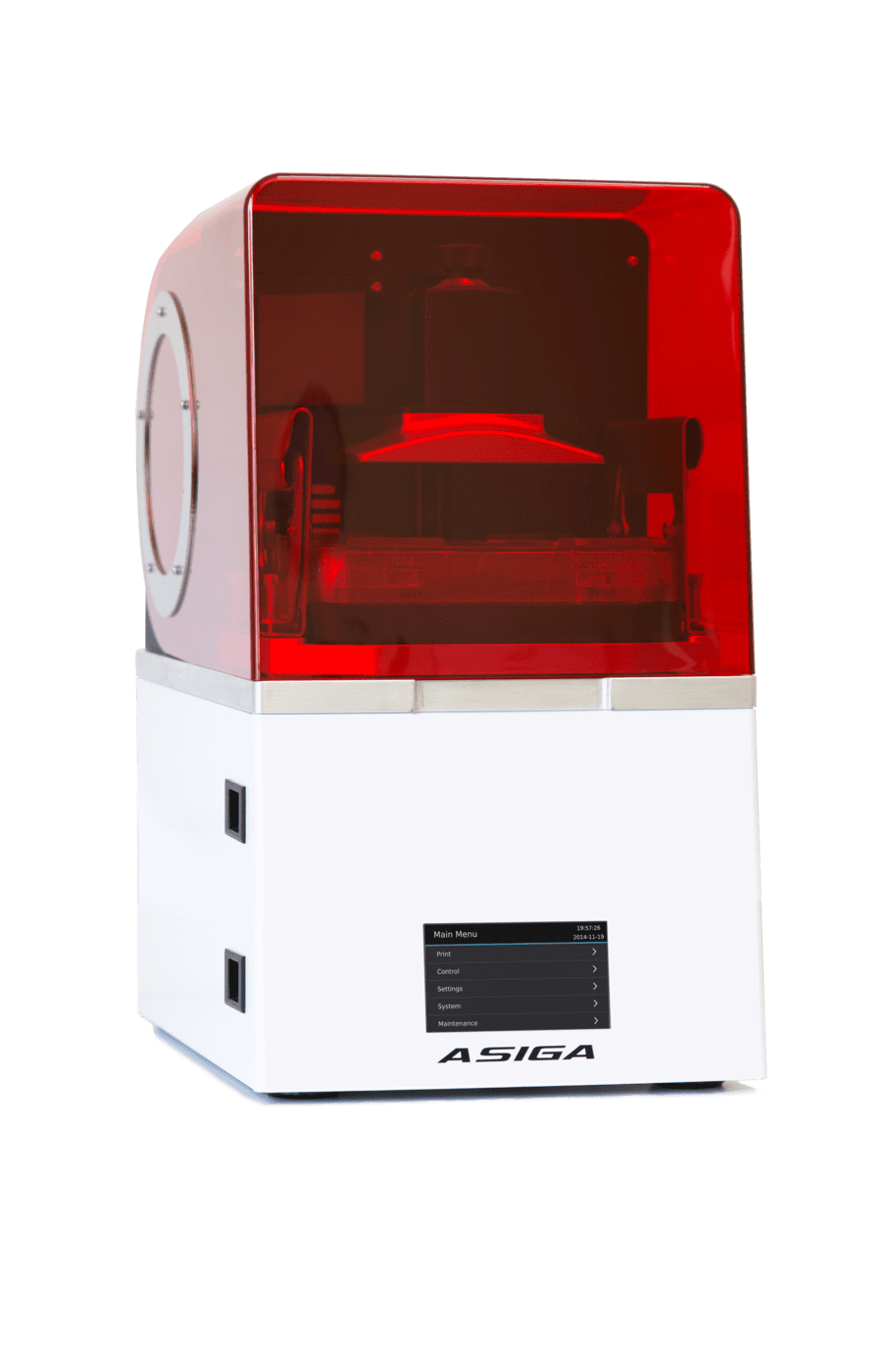

ASIGA Max X
ASIGA Max X
Regular price
$9,800.00 USD
Regular price
$9,990.00 USD
Sale price
$9,800.00 USD
Unit price
/
per
CALL TO INQUIRE 1-888-360-5550
Active Layer Monitoring
Asiga’s pioneering Smart Positioning System (SPS™) achieves precise layer thickness control of each and every layer, ensuring optimal print accuracy and speed.
DLP Micromirror Technology
Achieve the highest standard of reliability with the broadest wavelength capability of any imaging technology.
Auto-Calibrating UV LED
Combining the latest generation of high-power ultraviolet solid-state light sources with an integrated radiometer ensures years of consistent printing performance.
385nm LED as standard.
Technical specifications
| Product specification | MAX X27 | MAX X35 | MAX X 43 |
|---|---|---|---|
| Build Volume X, Y, Z | 51.8 × 29.2 × 75mm 2.04 × 1.15 × 2.95 inches |
67.2 × 37.8 × 75mm 2.65 × 1.49 × 2.95 inches |
82.3 × 46.4 × 75mm 3.24 × 1.83 × 2.95 inches |
| Pixel Resolution | 27µm | 35µm | 43µm |
| Technology | DLP | DLP | DLP |
| LED Wavelength | 385nm (high power UV LED) or 405nm |
| Material Compatibility | Asiga materials, 100% Open Material System — use any suitable third party material |
| Software | Asiga Composer software. Lifetime updates included |
| File Inputs | STL, SLC, PLY, STM (Asiga Stomp file format) |
| Network Compatibility | Wifi, Wireless Direct, Ethernet |
| Power Requirements | 100 to 240 VAC, 50/60 Hz, ≤2 Amps |
| System Sizing | 260 × 400 × 510mm / 21.5 kg 10.2 × 15.7 × 20 inches / 47.4 lb |
| Packed Sizing | 400 × 510 × 630mm / 23.5 kg 15.7 × 20 × 24.8 inches / 51.8 lb |
| Warranty | 12 months manufacturer's warranty |
| Technical Support | Unlimited lifetime technical support included |
| Bundle Includes | 3D printer, Composer software, 1kg Asiga material, 1L build tray, Asiga Flash post-curing chamber, calibration toolkit |
