ASIGA

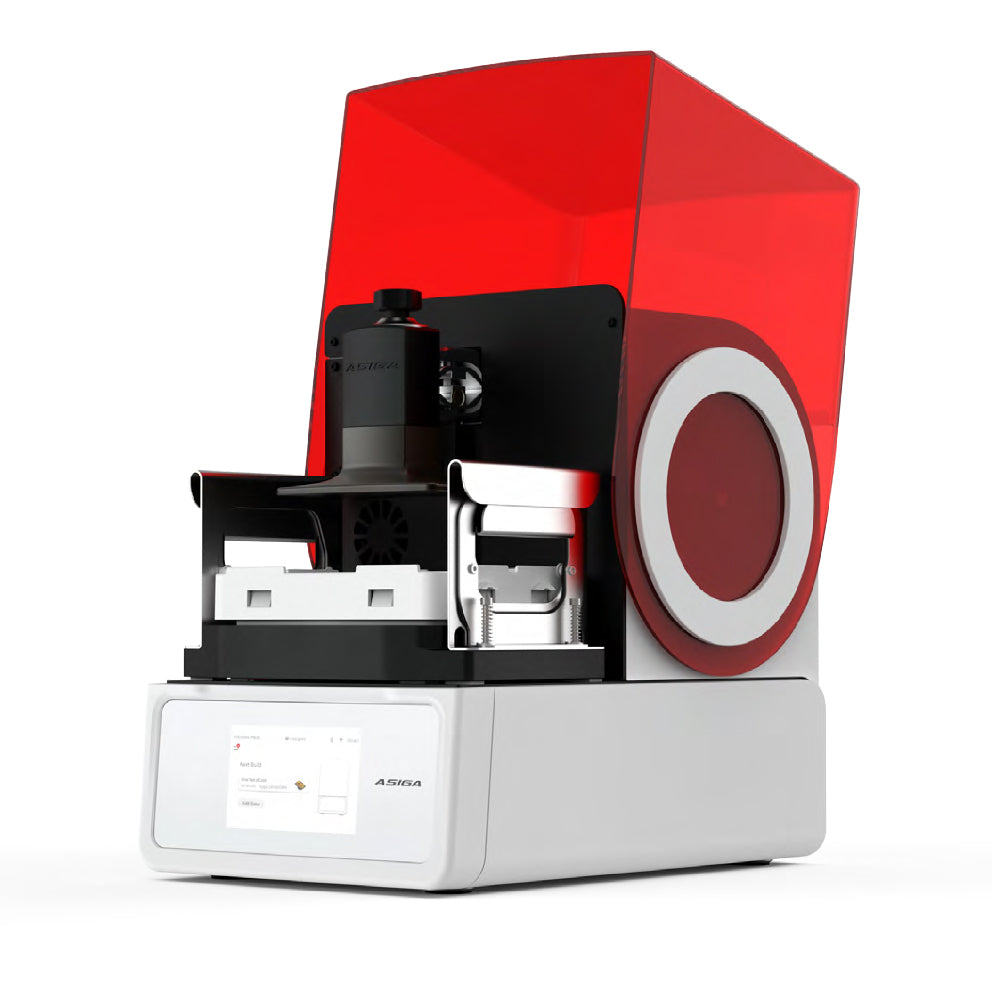

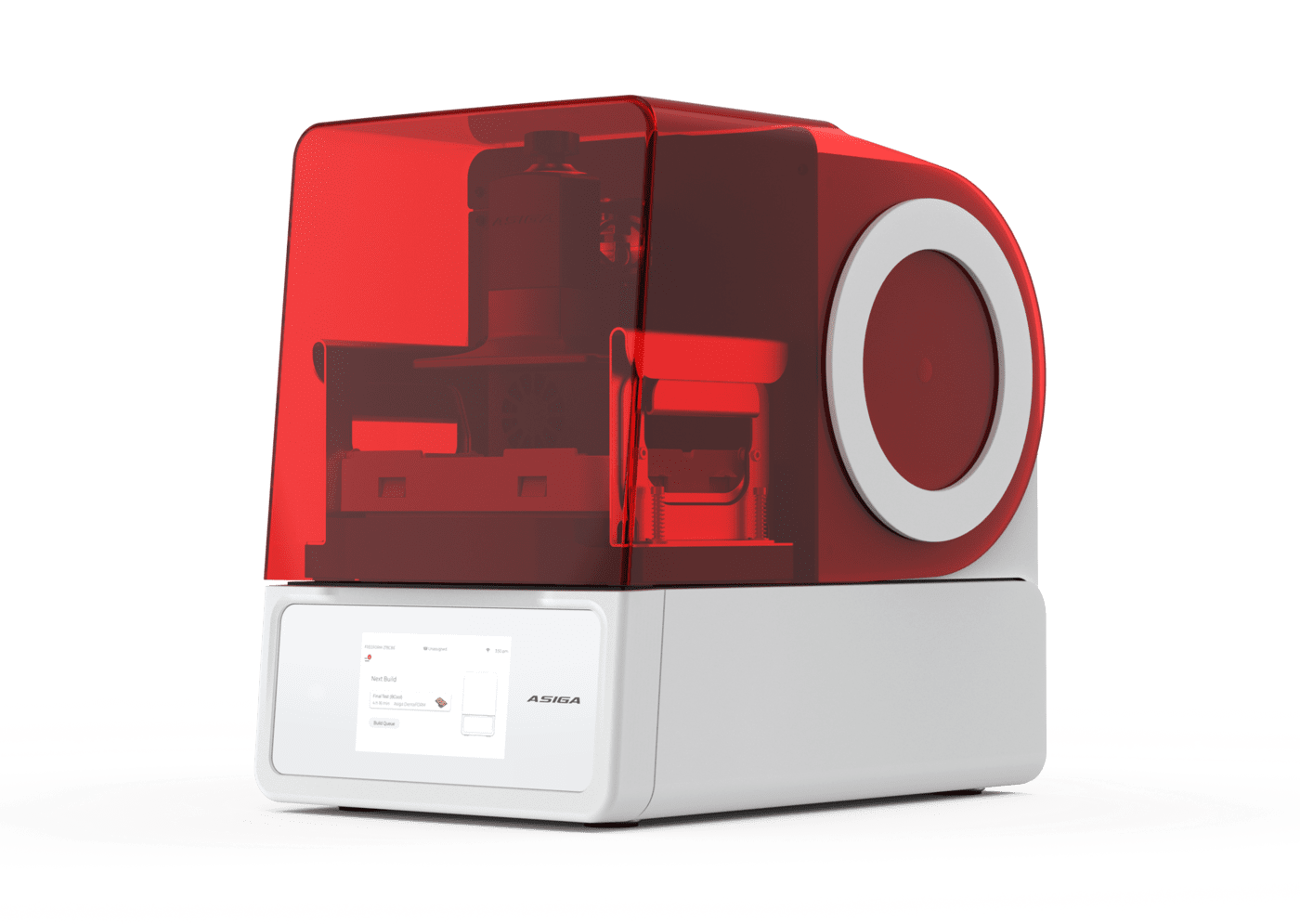

ASIGA Max 2
ASIGA Max 2
Regular price
$9,800.00 USD
Regular price
$9,990.00 USD
Sale price
$9,800.00 USD
Unit price
/
per
CALL TO INQUIRE 1-888-360-5550
Active Layer Monitoring
Asiga’s pioneering Smart Positioning System (SPS™) achieves precise layer thickness control of each and every layer, ensuring optimal print accuracy and speed.
DLP Micromirror Technology
Achieve the highest standard of reliability with the broadest wavelength capability of any imaging technology.
Auto-Calibrating UV LED
Combining the latest generation of high-power ultraviolet solid-state light sources with an integrated radiometer ensures years of consistent printing performance.
385nm LED as standard.
Technical specifications
| Build Volume X, Y, Z | 119 × 67 × 75mm 4.69 × 2.64 × 2.95 inches |
| Pixel Resolution | 62µm |
| Technology | DLP |
| Auto-calibrating UV LED | 385nm (405nm available on request) |
| Material Compatibility | Use any one of over 500 qualified resins from the world's leading material manufacturers, or create your own. |
| Software | Asiga Composer software. Lifetime updates included |
| File Inputs | STL, SLC, PLY, STM (Asiga Stomp file format) |
| Network Compatibility | Wifi, Wireless Direct, Ethernet |
| Power Requirements | 100 to 240 VAC, 50/60 Hz, ≤2 Amps |
| System Sizing | 260 × 385 × 370mm / 19.3 kg 10.2 × 15.2 × 14.5 inches / 42.6 lb |
| Packed Sizing | 410 × 500 × 480mm / 21.6 kg 16.1 × 19.7 × 18.9 inches / 47.6 lb |
| Warranty | 12 months manufacturer's warranty |
| Technical Support | Unlimited lifetime technical support included |
| Bundle Includes | 3D printer, Composer software, 1 kg Asiga material, 1L build tray, Asiga Flash post-curing chamber, calibration toolkit |
