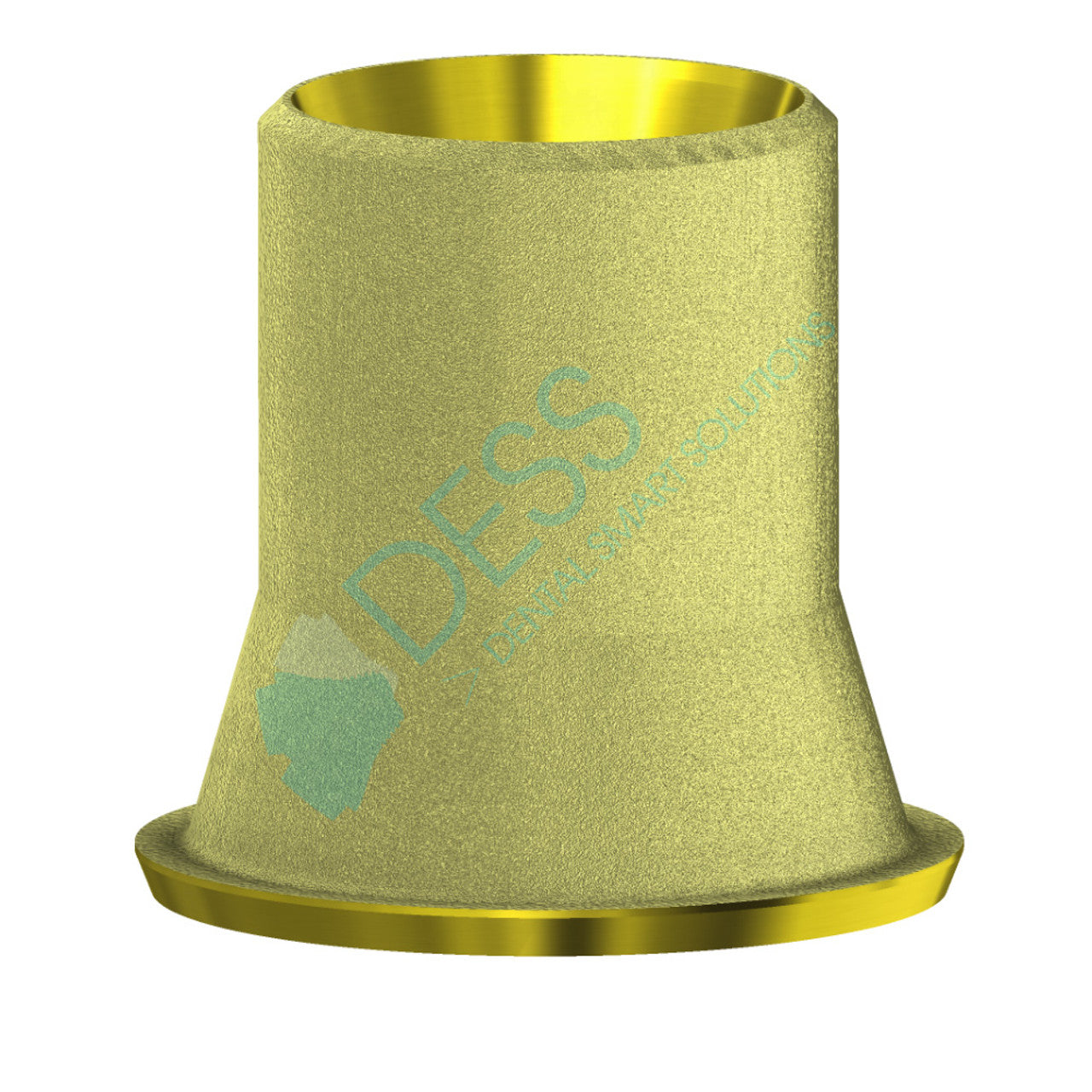

AngleBase Non-Engaging MultiUnit RP 36.007

The AngleBase® ti base comes with an angulated screw, SKU 19.306 that takes the DESS angulated screw channel driver.

This ti base has a 0.3mm collar height and has a 4.5mm chimney height.

The torque is 15 ncm.

This ti base is used for changing the screw access hole up to 25 degrees in any direction. This part is gold anodized to improve aesthetics.

It is compatible with the following top (Ø 4.8 mm) of Multiunit Abutments:
  3i Biomet Certain® Low Profile & 3i Osseotite® External Hex
  Astra EV® Multibase
  Blue Sky Bio® (BSB)
  BioHorizons® Internal Hex, BioHorizons® Tapered Pro Conical, & BioHorizons® Conelog
  Hahn™
  Hiossen® / Osstem
  Keystone® Genesis / Prima
  Megagen Anyridge® N Type
  Neodent GM®
  Nobel Active®, Nobel Replace®, & Nobel Brånemark® (NP and RP)
  Noris Medical®
  DESS® Multiunits

Wax up sleeves are sold separately; 0° - 33.100-P5, 10° - 33.101-P5, & 20° - 33.102-P5
