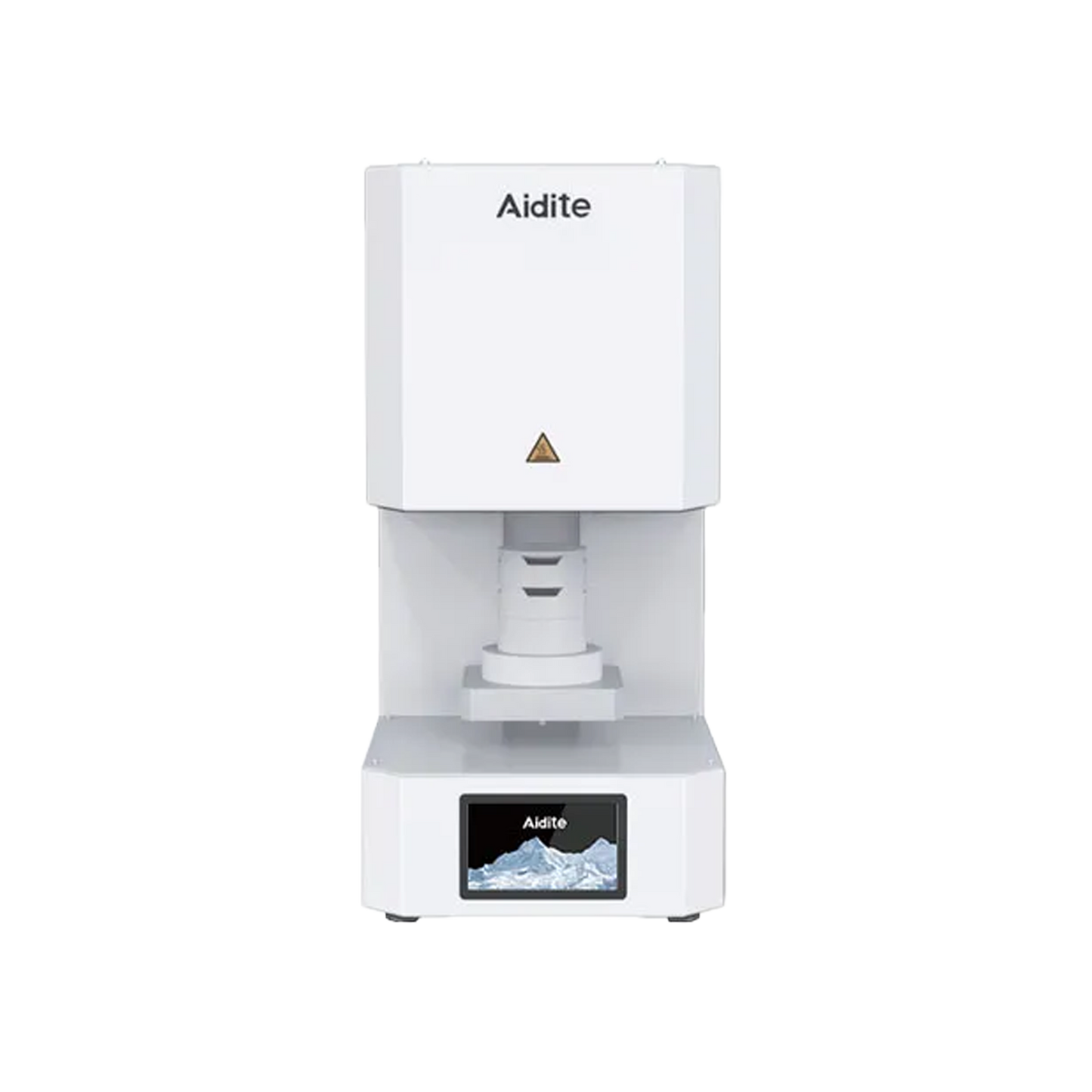

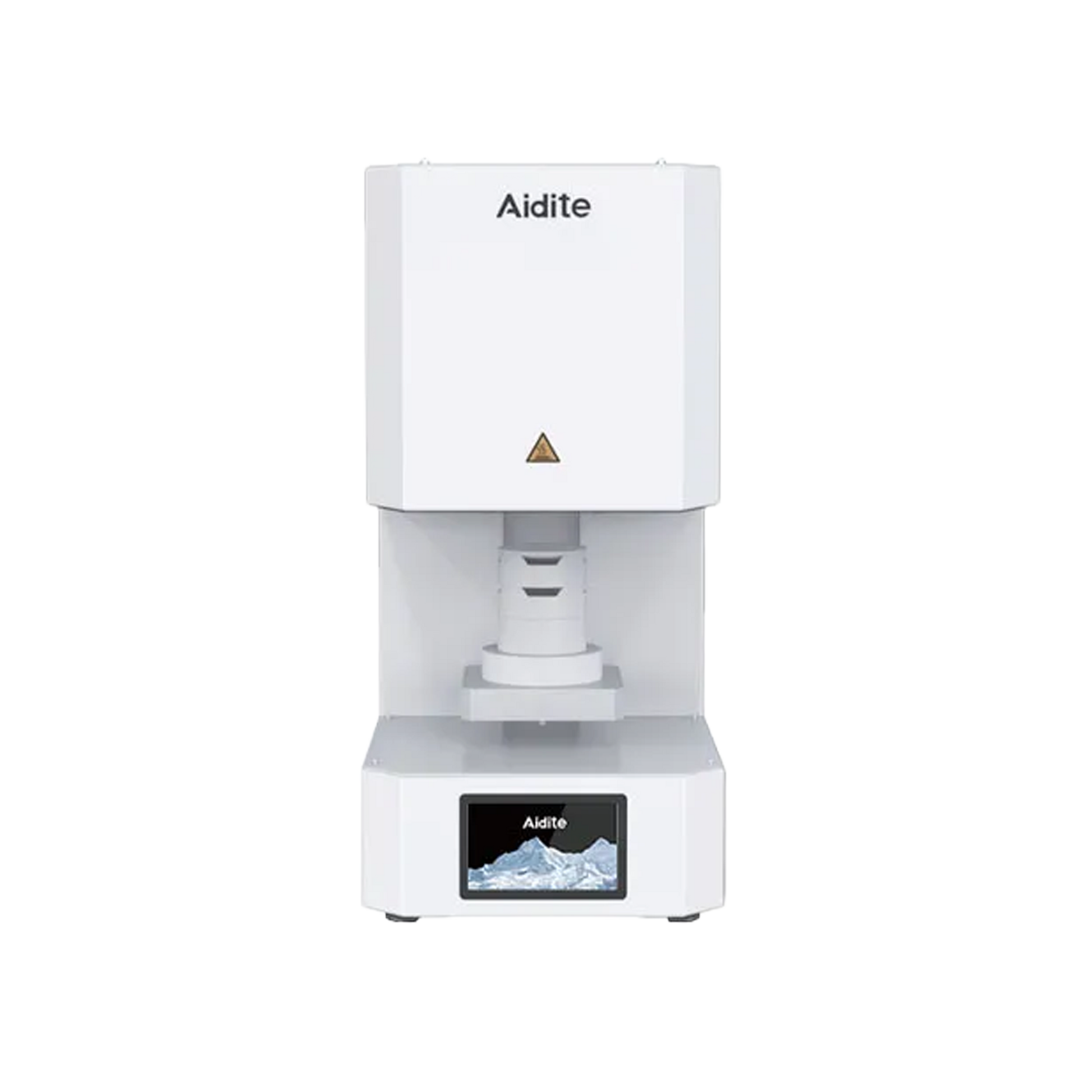

Aidite CSF-400C Zirconia Furnace

As an industry leader, Aidite brings digitalization and intelligence to every dental institution and practitioner. The newly developed CSF-400C zirconia sintering furnace features powerful functionality and outstanding performance. Its unique double-layer crucible design enables sintering of 60 single crowns per batch, meeting the high-volume production demands of processing plants. The 7-inch touchscreen interface, paired with Aidite's new UI program, incorporates built-in operation prompts, fault alerts, and maintenance tutorials to reduce operator training time. Equipped with four imported silicon carbide heating rods, it offers extended service life, high sintering temperatures, and lower maintenance costs.

High-performance heating element

Custom sintering curves

Minimized learning and maintenance costs

High-quality cooling system

Lifting mechanism

Various sinterable materials

One-click recovery and backup

Power-off continuation of burning

[ Zirconia Sintering Furnance ]

High sintering volume, excellent sintering results, and safety

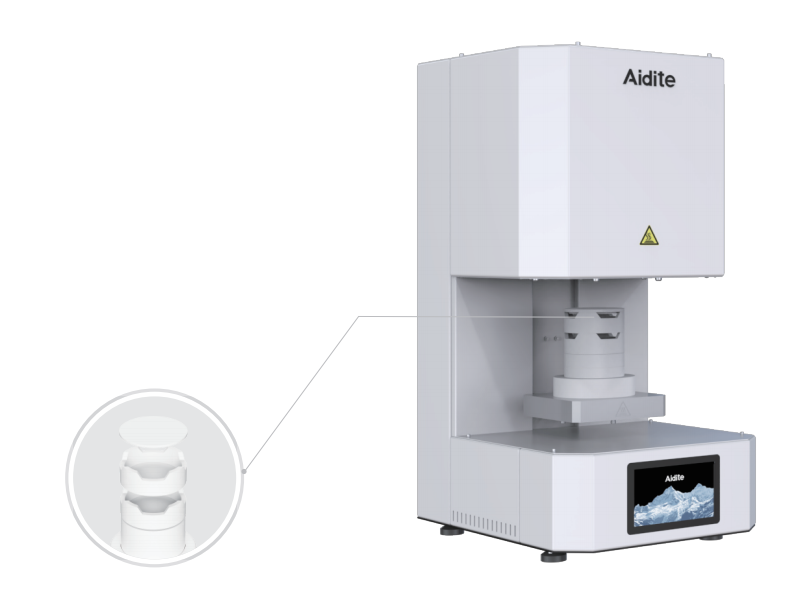

High-capacity sintering

Sintering up to 60 units stacked in two levels; two full-arches can be sintered in a single cycle.

Safety

The firing temperature can reach up to 1560°C.

Furnace shell temperature ≤60°C.

Lined with high-quality insulating material, the furnace shell temperature remains below 60°C.

[ Parameter ]

Model	CSF-400C
Chamber	φ110×H110mm
Dimension	510×385×817mm
Net weight	52kg
Power supply	200-240V AC50/60Hz
Rated power	3.2KW
Sintering capacity	60 single crowns
Number of curves	30 curves
Temperature range	Room temperature -1560°C
Temperature accuracy	≤±1°C
Thermocouple	Type B
Heating element	Silicon carbon rod
Heating rate	≤30°C/min
Chamber material	Corundum mullite
Crucible material	Corundum
