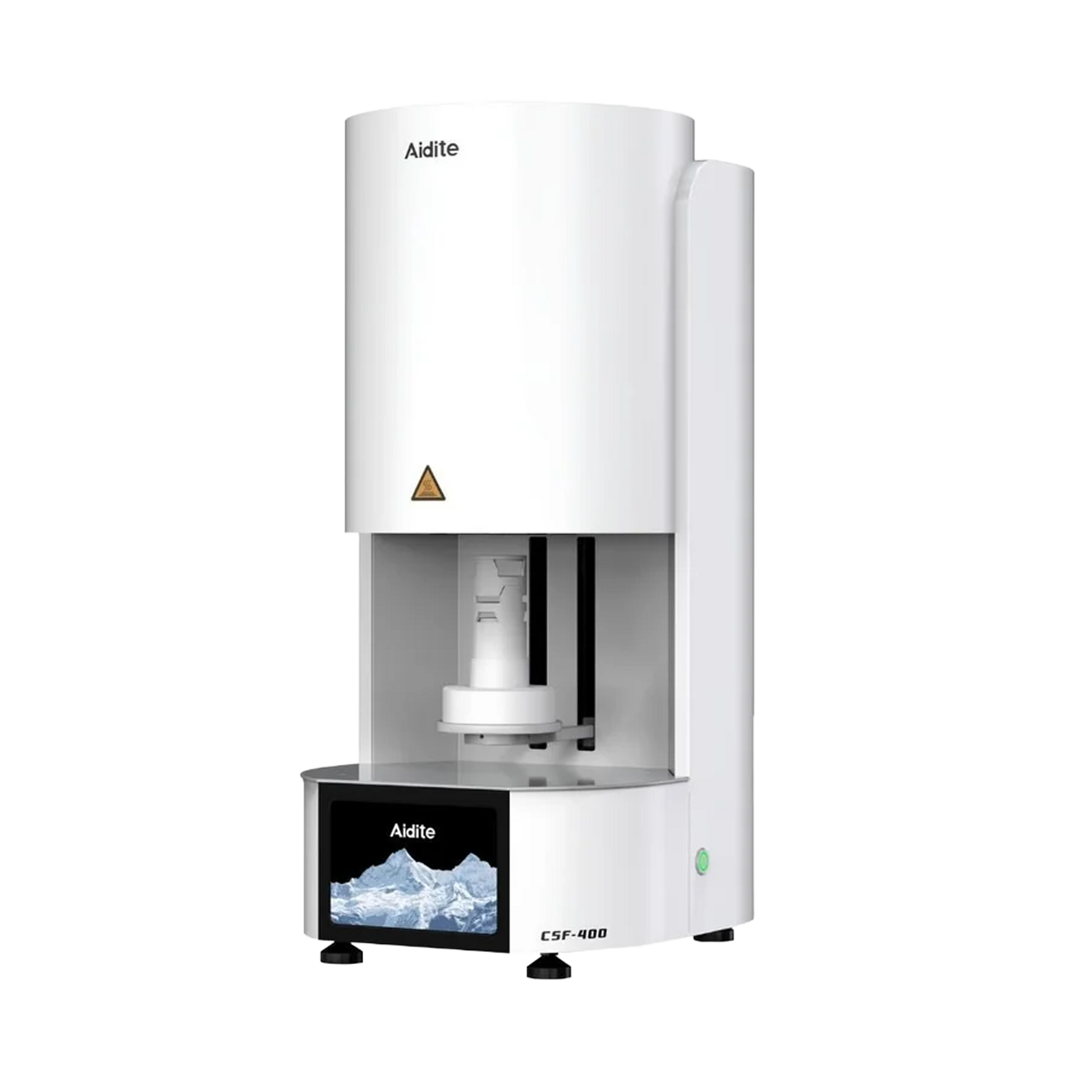

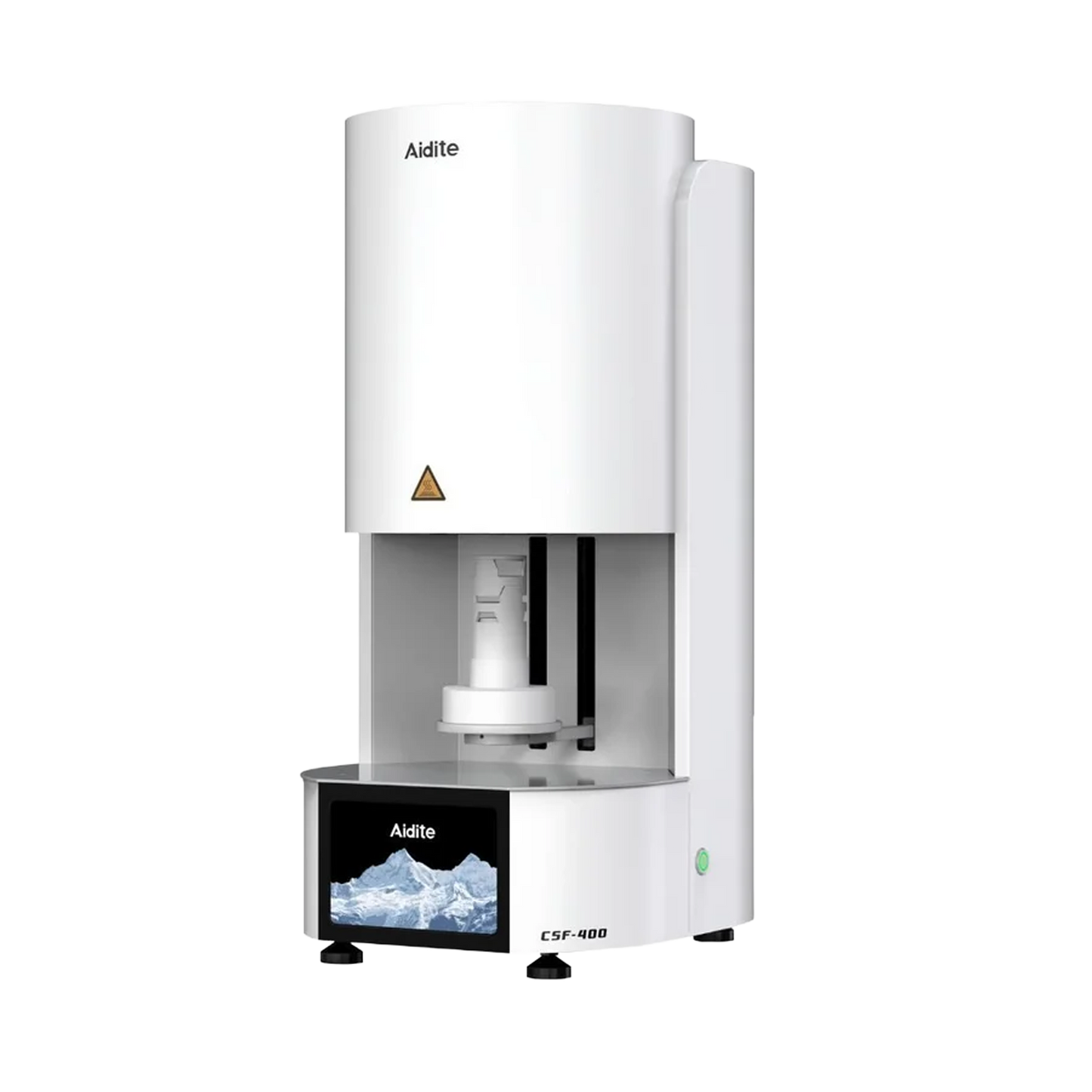

Aidite CSF-400 Zirconia Rapid Furnace
Aidite CSF-400 Zirconia Rapid Furnace
CALL TO INQUIRE 1-888-360-5550
The CSF-400 is a furnace custom-designed for Aizir Flash, capable of sintering both Aizir and 3D Pro Zir . Its integrated intelligent management module significantly enhances dental prosthesis processing efficiency. Featuring a dual-tray design, it can rapidly sinter up to 12 single-crown prostheses per cycle, meeting urgent laboratory demands for same-day tooth delivery. This versatility makes it suitable for both laboratory and clinical applications.
Recommendations for Rapid Sintering
1. Fast sintering rate
For rapid sintering,set the standby temperature to preheat the chamber by either 260°C or 800°C.
2.Automatic furnace door opening upon cooling
In 2026, three new automatic door-opening modes and one manual door-opening mode will be added. We recommend selecting the H mode.
3. Safety
The heat insulation effect of the furnace is good, and the maximum temperature of the shell is not more than 60℃
| Model | CSF-400 |
| Size | φ75×275mm |
| Dimensions | 468mm×360mm×785mm |
| Net weight | 65kg |
| Power supply | 220-240V, 50/60Hz, 16A |
| Rated Power | 3.5KW |
| Number of sintered units | Sintering of up to 12 units |
| Number of curves | Preset 4/Custom 4 |
| Max. Temperature | 1560℃ |
| Accuracy of constant temperature | ≤±1℃ |
| Thermo couple | Type B |
| Heating elements | Silicon carbon rod |
| Heating Rate | ≤60℃/min |
| Hearth material | Corundum mullite |
| Crucible material | Corundum |
Aizir Flash Rapid Sintering Solution: CSF-400 sintered Aizir Flash single crown, enabling tooth delivery in 100 minutes.
