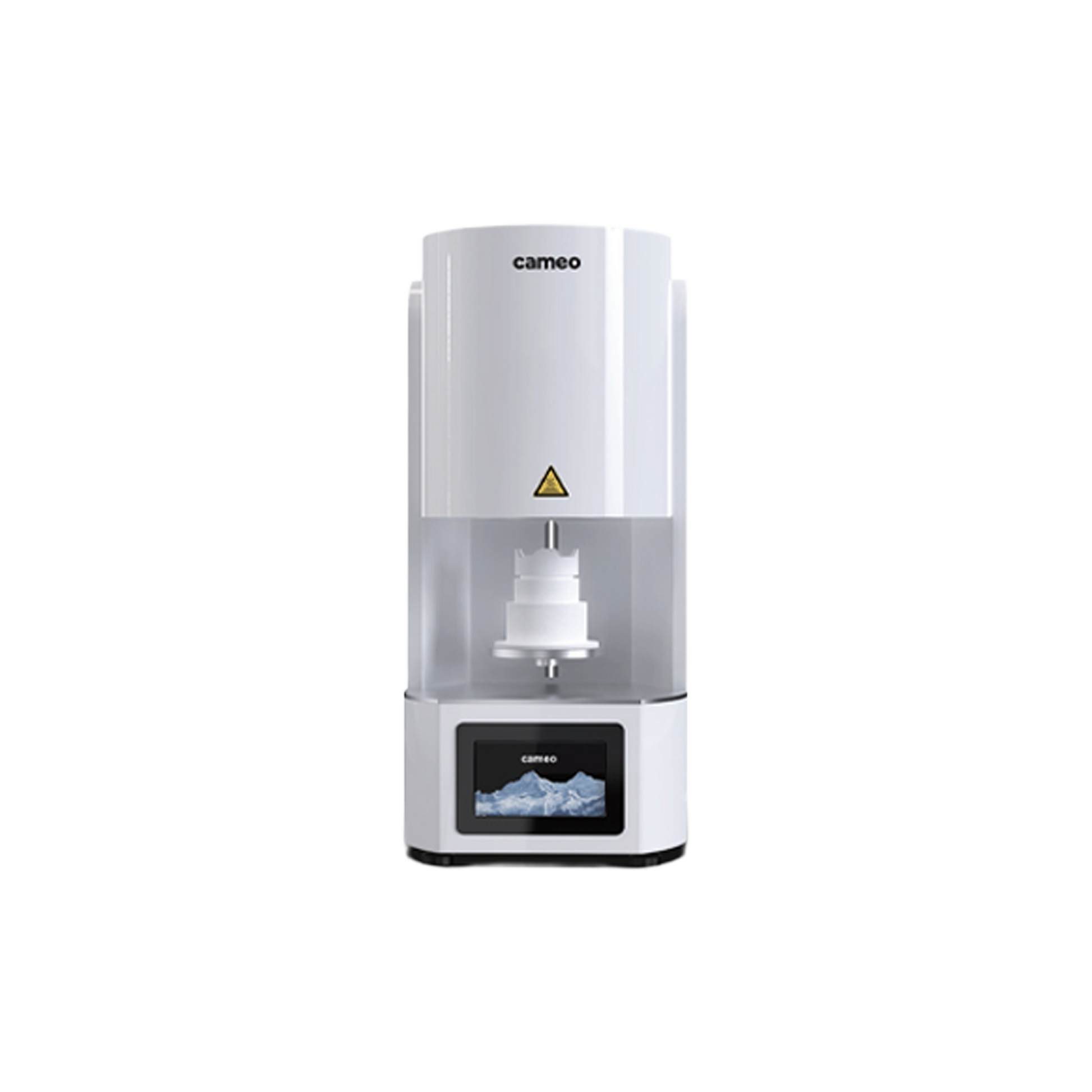

Aidite CSF-200 Zirconia Rapid Furnace
Aidite CSF-200 Zirconia Rapid Furnace
CALL TO INQUIRE 1-888-360-5550
CSF-200 is specially designed for either rapid or conventional sintering of zirconium restorations.
Perfectly matched with Aidite Zirconia materials and part of the completely validated digital workflow.
This next-generation sintering furnace features intuitive user-friendly, adjustable firing programs. In addition, the latest high-purity silicone heating and remote monitoring and management.
With two sizes of furnaces, clever design, and development, these units are just as suitable for the dental laboratory or the dental clinic environment.
Colour stability time after time with no discolouration to zirconia materials
| Colour | ∆L | ∆c | ∆h | |
| Ten times sintering | A3 | 0.7 | 0.7 | 0.6 |
| Two hundred times sintering | A3 | 0.7 | 0.6 | 0.6 |
Note： △L value stands for brightness
△c value stands for chroma
△h value stands for shade
For the ultimate quality control, utilising the optimum firing parameters, with intelligent management controls, predictable results time after time.
Simple design, intuitive and friendly
| Model | CSF-200S | CSF-200L |
| Size (L*W*H) | 330*470*700mm | 370*510*780mm |
| Furnace size | Φ70×80mm | Φ100×120mm |
| Net weight | 37.5kg | 50kg |
| Power supply | 220V/50Hz | 220V/50Hz |
| Rated power | 1.5kw | 2.5kw |
| Heating element | 3 silicon carbide rods | 4 silicon carbide rods |
| Sintering Options | Fast sintering | Fast sintering |
| Fastest sintering time | Slow sintering | Slow sintering |
| Number of sintered | 2.5h | 3h |
| crowns (Max) | 30 | 70 |
| Sintering curve | 30 | 30 |
