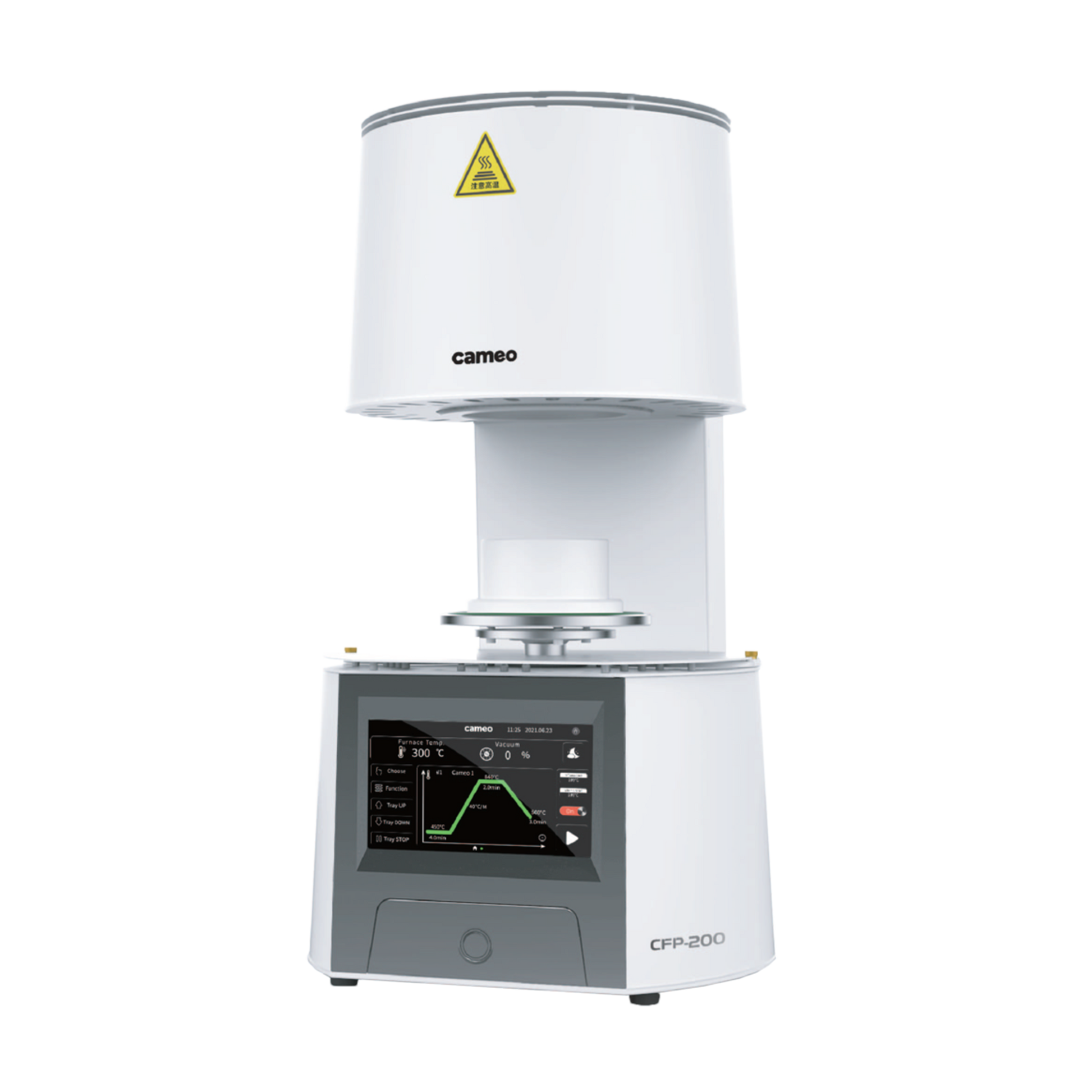

Aidite CFP-200 Porcelain Furnace

From stain and glaze to crystallization, the fully equipped CFP-200 meets the demands of today's CAD/-CAM dental laboratory and practice. The AI intelligent control system accurately holds the temperature in all stages of the heating and cooling process. Featuring quartz tube heating technology and an ultra-sealed tray structure to keep the furnace clean and prolong its life, the reliable and user-friendly CFP-200 always produces beautiful restorations.

Curve management

Touch screen and program

Firing Cooling system

AI intelligent Temp. control

Tool box

One button sleep/wake

Parameter

Dimensions	362×316×596(mm)
Weight/Package	28kg/34kg
Temperature increase rate	1℃~100℃/min
Chamber dimensions	95mm×65mm
Heating unit	Spiral quartz tube & Nickel-chromium wire
Model	CFP-200
Voltage	220V/110V AC 50/60Hz
Max temperature	1200℃
Vacuum	Vmax= 95%
Temp Accuracy	±1℃
Cooling	Fans cooling
Warranty	1year
Power	1.5KW
Furnace structure	Tray elevator
Temp. control system	AI intelligent Temp. control

*Built-in Biomic sintering program, cameo Glass Ceramic crystalizing programs
